Name: KWS700B Plug - And - Play PH Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS700B
Price: 5,000.00 USD
Availability: InStock

Home > products > Water Quality Sensor >

KWS700B Plug - And - Play PH Sensor

KWS700B PH Sensor

Plug and Play PH Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KWS700B

Request A Quote

Product Details

Work Pressure:

＜3 Bar

Temp. Compensation:

Automatic Temp. Compensation

Output:

RS485, MODBUS Protocol

Temperature Range:

0 ~ 50℃

Accuracy:

±0.02pH

Resolution:

0.01

Highlight:

KWS700B PH Sensor

Plug and Play PH Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KCW102 Low - Frequency Electromagnetic Wave Water Treatment Device

Get Best Price

KCW101 Frequency - Modulated Electromagnetic Wave Water Treatment Equipment

Get Best Price

KHM100 On - line Automatic Heavy Metal Water Quality Monitor

Get Best Price

KCW104 High - Efficiency Frequency - Sweeping Device

Get Best Price

86--17719566736

Contact Now

Product Description

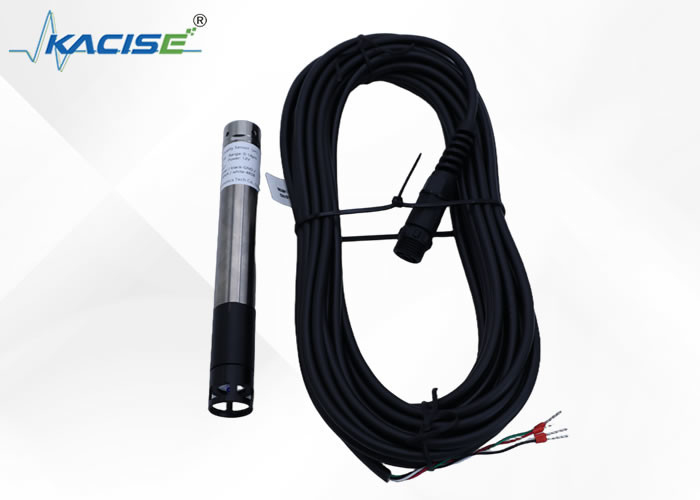

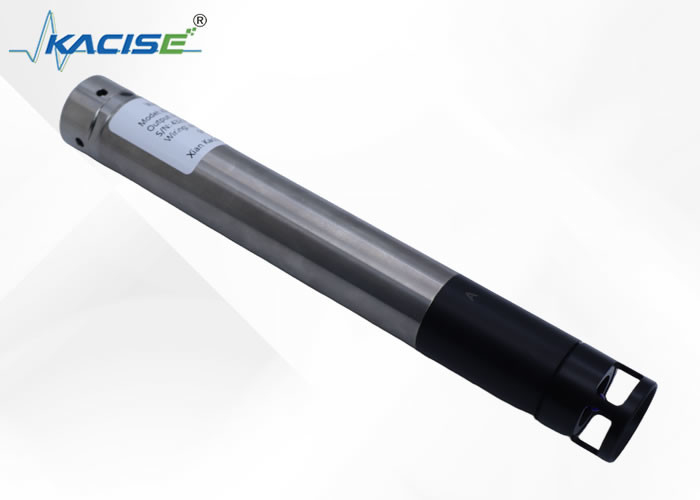

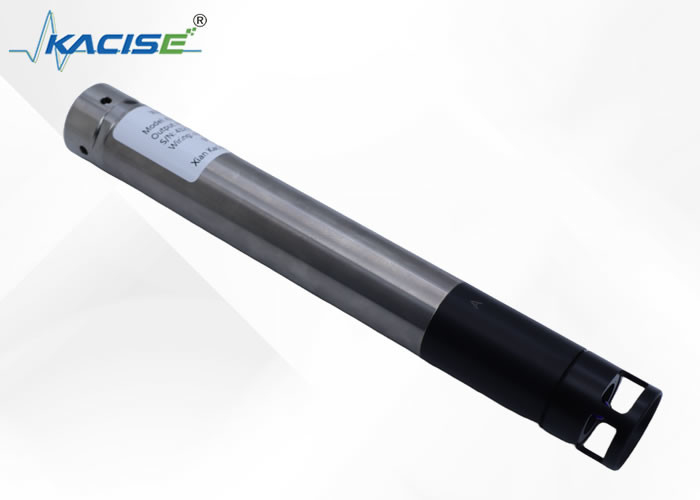

KWS700B Industrial - Grade pH Detector

1.Introduction

The KACISE KWS700B Plug - and - Play pH Sensor is designed for convenience. It comes pre - calibrated at the factory with built - in calibration parameters, allowing for direct installation and use. This digital sensor uses RS485 output and the MODBUS protocol for easy integration. With an automatic temperature compensation system and long - life industrial online electrodes, it provides accurate pH measurements in the 0 - 14pH range with ±0.02pH accuracy. Whether in water quality treatment or biological applications, its simplicity and reliability make it a popular choice.

2.Feature

Digital sensor, RS-485 output, standard MODBUS protocol;

No electrolyte required, strong anti-interference, no need for frequent calibration;

Built-in temperature sensor, automatic temperature compensation;

Adopt high-performance industrial online electrode, can work stably for a long time;

Built-in calibration parameters, accurately calibrated at factory, can be directly installed and used.

3.Technical Specifications

Model	KWS-700B
Measuring Range	0～14pH
Accuracy	±0.02pH
Resolution	0.01
Temperature Range	0 ~ 50℃
Work Pressure	＜3 bar
Temp. Compensation	Automatic temp. compensation
Output	RS485, MODBUS protocol
Assembly	Connect with multi-parameter host (can be used separately when connect cable)
Power Consumption	0.3W (suggest 12～24VDC, ≥1A)
Wetted Part Material	POM+Titanium
Installation	Immersion mounting
Cable Length	10 m, customizable
Calibration Method	Two/three point calibration
IP Grade	IP68
