Highly Self Cleaning Multi Param Sensor With IP68 Rating And RS485 Output

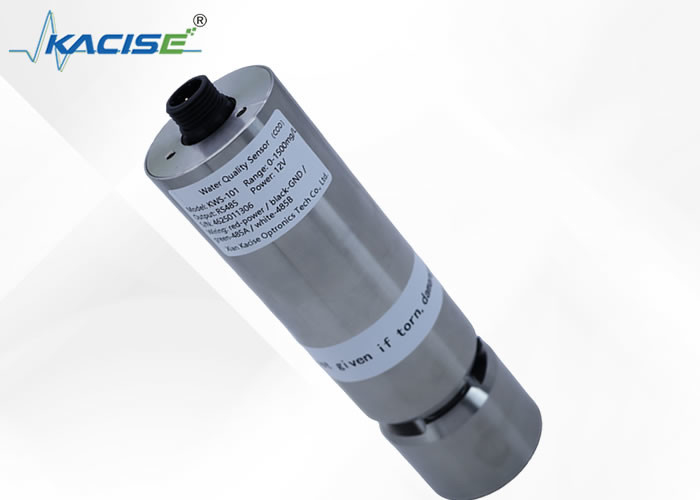

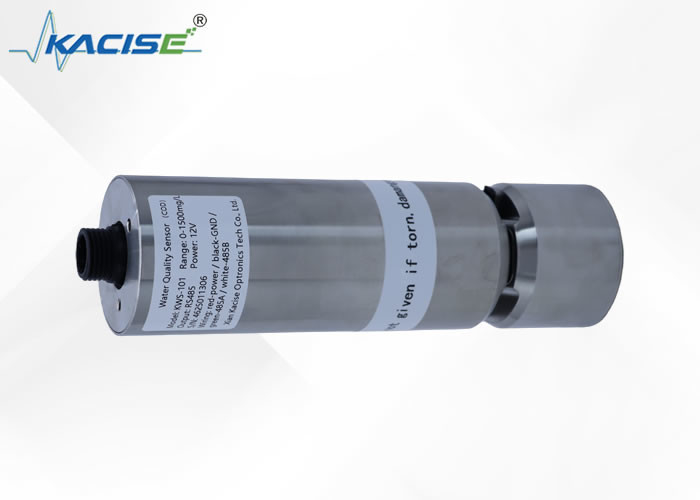

KACISE KWS101 Self - cleaning Multi - param Sensor

Instruction

The KACISE KWS101 Self - cleaning Multi - param Sensor is a versatile solution for water quality management. It can measure COD, TOC, turbidity, and temperature simultaneously. The self - cleaning brush prevents biological attachment, reducing maintenance efforts. Using the ultraviolet absorption method, it offers high - accuracy measurements. With digital RS - 485 output following Modbus protocol, it's easy to integrate into existing systems. Whether in industrial or environmental applications, it provides reliable multi - parameter sensing.

2.Features

Digital sensor, digital RS-485 output, Modbus protocol;

Can measure parameters such as COD, TOC, turbidity and temperature;

Automatically compensate for turbidity interference and have excellent test performance;

With self-cleaning brush to prevent biological attachment and longer maintenance cycle;

Built-in calibration parameters for easy on-site use and secondary calibration.

3.Technical Specifications

Model

KWS-100

KWS-101

COD Range

0-500mg/L

0-1500mg/L

COD Accuracy

±5%

COD Resolution

0.01mg/L

TOC Range

0-180 mg/L

0-600 mg/L

TOC Resolution

0.01mg/L

Turbidity Range

0-500 NTU

Turbidity Accuracy

±5%

Turbidity Resolution

0.01 NTU

Material

316L (Titanium customizable)

Operating Temperature

0~50℃

IP Rating

IP68

Output

RS485, Modbus

Power Consumption

0.25W (not rotating brush), 0.8W (rotating brush) Recommended power supply: DC 12-24V, ≥1A

0.25W (not rotating brush), 2W (rotating brush) Recommended power supply: DC 12-24V, ≥1A

Sensor Dimensions

Φ50mm * 179mm

Cable Length

10m (default), customizable

Calibration

Support one point and two-points calibration

Max. Pressure

3 bar

Note: The above technical parameters are all data under laboratory standard solution environment; sensor life and maintenance and calibration frequency are related to actual on-site conditions.
