LSDM High - Performance Long - Range DtoF Laser Ranging Module

High Performance Laser Ranging Module

DtoF Laser Ranging Module

Long Range Laser Ranging Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

LSDM

Request A Quote

Product Details

Description:

Ong Range Laser Sensor 1500 Meter Range

Output:

UART

Measuring Range:

3... 1500m@70% Reflectivity

Resolution Ratio:

0.1m

Absolute Accuracy:

±1m

Highlight:

High Performance Laser Ranging Module

DtoF Laser Ranging Module

Long Range Laser Ranging Module

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

KL2A-25 LiDAR for robot navigation and obstacle avoidance, Absolute accuracy ±30mm

Get Best Price

Lidar can be used for ETC vehicle type recognition and can provide host computer software data analysis

Get Best Price

86--17719566736

Contact Now

Product Description

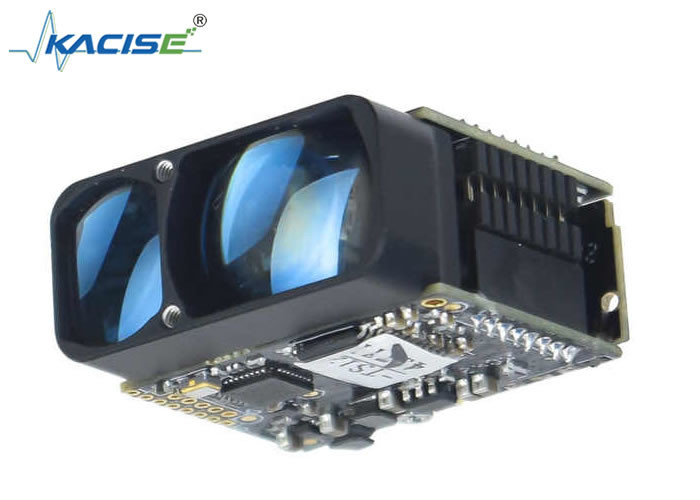

LSDM High - Performance Long - Range DtoF Laser Ranging Module

1.Overview

KACISE's LSDM High - Performance Long - Range DtoF Laser Ranging Module is a game - changer. It uses advanced DTOF tech to reach over 1500 meters at 70% reflectivity. Despite its long - range ability, it's incredibly compact (2624.611.4mm) and light (10g), perfect for space - limited setups. The UART interface enables high - speed data transfer for easy system integration. With a resolution of 0.1m and ±1m accuracy, it's reliable. It withstands - 20~70℃ and strong sunlight, consuming only 500mW at 3.3V. Ideal for UAVs, industrial automation, and more. LSDM High - Performance Long - Range DtoF Laser Ranging Module 0

2.Product Features

Long - Range Capability
Compact and Lightweight
High - Speed Data Transmission
Accuracy and Resolution
Robust to Environmental Conditions
Low Power Consumption
Versatile Applications

3.Wide Operating Conditions

Mounting Type	Industrial Laser Displacement Sensor
Description	Laser Distance Measuring Sensor 1500m
Model Number	LSDM
Type	Distance Sensor
Series	LSDM
Features	Laser ranging sensor
Manufacturing Date Code	202501
Brand Name	Siman
Theory	TOF
Output	UART
Description	ong range laser sensor 1500 meter range
Measuring Range	3... 1500m@70% reflectivity
resolution ratio	0.1m
absolute accuracy	±1m
illuminant	The 905-nm laser light
service voltage	Typical value of DC+3.3V

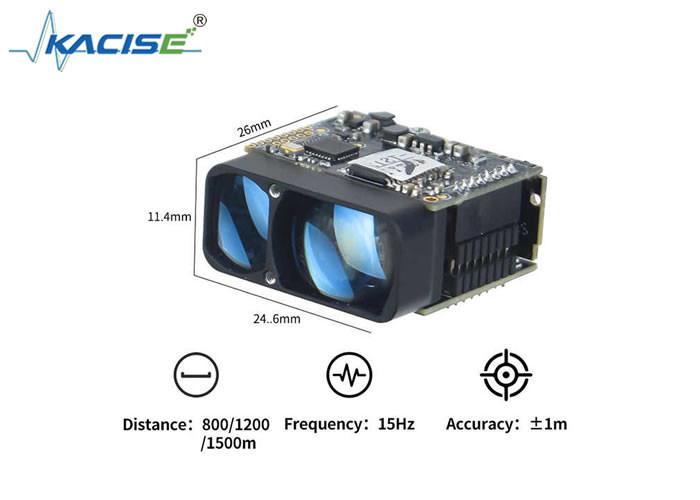

specification and dimension	2624.611.4mm
weight	10g
working temperature	-20~70℃
power dissipation	500mW@ 3.3V
Environmental light impact	Anti-outdoor sunlight 1000 kLu

LSDM High - Performance Long - Range DtoF Laser Ranging Module 1
