KL3A-05U 3D Solid State Lidar ROS Operating System And 940nm VCSEL Wavelength For Applications

KL3A-05U 3D Solid State Lidar ROS Operating System And 940nm VCSEL Wavelength For Applications

3D Solid State Lidar

ROS Operating System Solid State Lidar

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KL3A-05U

Chat Now
Chat Now
KL3A-05U 3D Solid State Lidar ROS Operating System And 940nm VCSEL Wavelength For Applications KL3A-05U 3D Solid State Lidar ROS Operating System And 940nm VCSEL Wavelength For Applications KL3A-05U 3D Solid State Lidar ROS Operating System And 940nm VCSEL Wavelength For Applications
Product Details
Output:
USB 2.0 Protocol, Type C Interface
Description:
SGA-05U
Accuracy:
0.1~0.5m@±2.5cm;0.5~5m@±1%
VCSEL Wavelength:
940nm
Power Supply:
5V, Average 0.5A
Operating System:
Win 10,Linux,ROS
Highlight:

3D Solid State Lidar

,

ROS Operating System Solid State Lidar

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing online Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price
Good price KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing online Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price
Good price KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing online Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price
Good price KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction online

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price
Good price Outdoor High - Performance KLSA Laser Distance Sensor online Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price
Good price KL2A-25 2D laser radar for unmanned vehicles and unmanned ships online

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price
Contact Us
86--17719566736
Chat Now
Product Description

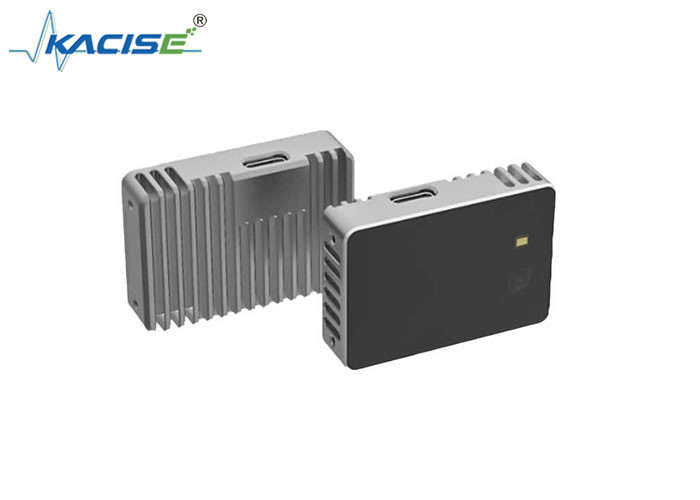

KL3A-05U 3D Solid - State Lidar

1.Overview

KACISE's KL3A-05U 3D Solid - State Lidar is a remarkable device. It uses ToF technology with a high - resolution sensor to offer 3D perception. With a working range of 0.1 - 5m indoors and good accuracy, it suits various applications. Powered by a Type C interface, it outputs diverse data accessible through the SDK. Compatible with multiple operating systems, it operates within - 10 ~ 50℃. Its low power consumption and CLASS 1 laser make it safe and efficient, providing users with convenient and reliable 3D perception.KL3A-05U 3D Solid State Lidar ROS Operating System And 940nm VCSEL Wavelength For Applications 0

2.Product Features

  • Advanced ToF Technology
  • Good Resolution and Frame Rate
  • Suitable Working Range and Accuracy
  • Convenient Interface and Data Output
  • Wide Compatibility
  • Safe and Energy - Efficient
  • Decent Field of View

3.Wide Operating Conditions

Mounting Type Manual installation
Description 3D laser radar
Model Number KL3A-05U
Type Distance Sensor
Series KL3A-05U
Features 3D laser radar
Manufacturing Date Code 202501
Brand Name Siman
Theory TOF
Output USB 2.0 protocol, Type C Interface
Description KLS-107
Working distance 0.1-5m, indoor
Accuracy 0.1~0.5m@±2.5cm;0.5~5m@±1%
Resolution 640*480@8fps/320*240@20fps
FOV H60°xV45°
VCSEL wavelength 940nm
Power supply 5V, average 0.5A
operating system Win 10,Linux,ROS
Working temperature -10 ~ 50℃
Laser level CLASS 1
Data transmission USB 2.0 protocol, Type C Interface

KL3A-05U 3D Solid State Lidar ROS Operating System And 940nm VCSEL Wavelength For Applications 1KL3A-05U 3D Solid State Lidar ROS Operating System And 940nm VCSEL Wavelength For Applications 2
