KL2A-25 2D LiDAR Sensor with Absolute Accuracy ±30mm

High Precision Laser Distance Sensor

KLS-108 Laser Distance Sensor

Absolute Accuracy Laser Distance Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KL2A-25

Request A Quote

Product Details

Description:

2D 360 ° Laser Scanning Radar

Type:

Distance Sensor

Measuring Rate:

1...25Hz

Measurement:

0.1...25m

Absolute Accuracy:

±30mm

Power Dissipation:

Highlight:

High Precision Laser Distance Sensor

KLS-108 Laser Distance Sensor

Absolute Accuracy Laser Distance Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

KL2A-25 LiDAR for robot navigation and obstacle avoidance, Absolute accuracy ±30mm

Get Best Price

Lidar can be used for ETC vehicle type recognition and can provide host computer software data analysis

Get Best Price

86--17719566736

Contact Now

Product Description

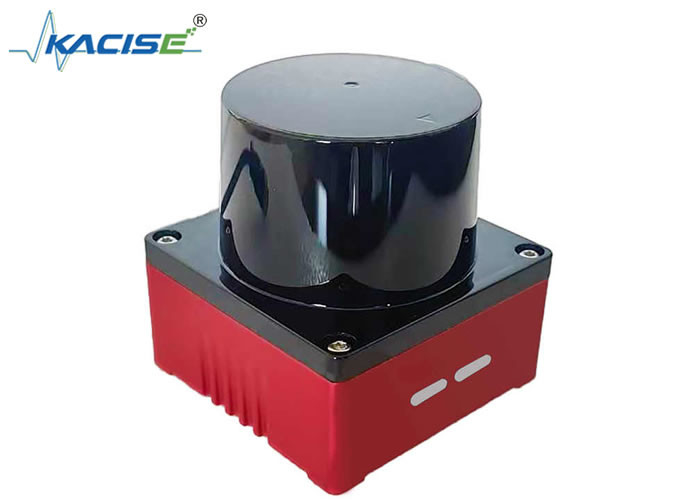

KL2A-25 High - Precision Laser Distance Sensor

Name: KL2A-25 2D LiDAR Sensor with Absolute Accuracy ±30mm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KL2A-25
Price: 5,000.00 USD
Availability: InStock

1.Overview

KACISE's KL2A-25 High - Precision Laser Distance Sensor is a top - notch device. It can measure up to 100m with millimeter - level precision, working at frequencies from 3 to 20Hz. The built - in digital display simplifies result reading. It's perfect for automation as it supports PLC programming and networking. With the RS485 Modbus - RTU protocol and 4 - 20mA analog output, it ensures stable data transfer for industrial control. Easy to install, it's an ideal choice for applications demanding accurate distance measurement.

2.Product Features

Long - Range and High - Precision
Flexible Frequency
User - friendly Display
Automation - friendly
Reliable Communication
Easy Installation

3.Wide Operating Conditions

Mounting Type	manual install
Description	2D 360 ° laser scanning radar
Model Number	KL2A-25
Type	Distance Sensor
Series	KL2A-25
Features	2D LiDAR
Manufacturing Date Code	202501
Brand Name	Siman
Theory	DTOF
Output	Network port, switch quantity
Description	KL2A-25
Measurement	0.1...25m
Duplicate accuracy	±20mm
Absolute accuracy	±30mm
Measuring rate	1...25Hz
Angular resolution	0.25°@10Hz;0.5°@15Hz;1°@25Hz
Point cloud density	14.4K@10Hz;10.8K@15Hz;9K@25Hz
Interface	Network port, switch quantity
Working voltage	DC12...30V
power dissipation	5W

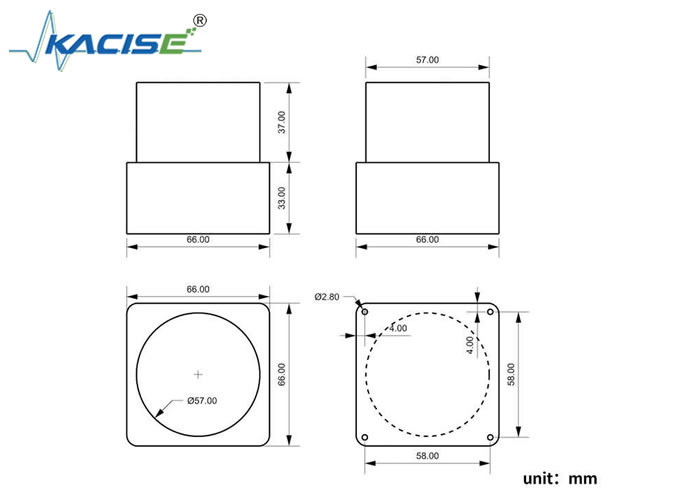

4.Dimensions

KL2A-25 2D LiDAR Sensor with Absolute Accuracy ±30mm 0
