Name: 20m Range Laser Sensor for Distance Measurement in Class 2 Laser Grade
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLS210
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

20m Range Laser Sensor for Distance Measurement in Class 2 Laser Grade

Class 2 Laser Sensor

20m Laser Sensor

Distance Measurement Laser Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLS210

Request A Quote

20m Range Laser Sensor for Distance Measurement in Class 2 Laser Grade

Product Details

Measuring Range:

0.03~20m

Measuring Accuracy:

±1mm

Laser Grade:

Class 2

Laser Type:

620~690nm,<1mW

Working Voltage:

6~32V

Measuring Time:

0.4~4s

Highlight:

Class 2 Laser Sensor

20m Laser Sensor

Distance Measurement Laser Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

20m Range Laser Sensor For Distance Measurement

Introduction

Based on the principle of phase laser measurement,Laser Sensor a single point ranging laser, which can achieve the measurement distance of 20m and detection accuracy of mm level. It has stable and good ranging performance for different reflectivity measurements and environmental light at different temperatures.

Product Features

Advanced phase laser measurement principle.
Long - range measurement up to 20m (0.03 - 20m range).
High precision of ±1mm.
Stable ranging performance for different reflectivities and under various temperatures.
Class 2 laser for safety.
Laser type: 620 - 690nm, <1mW.
Wide working voltage range of 6 - 32V.
Flexible measuring time from 0.4 - 4s.
Frequency of 3Hz.

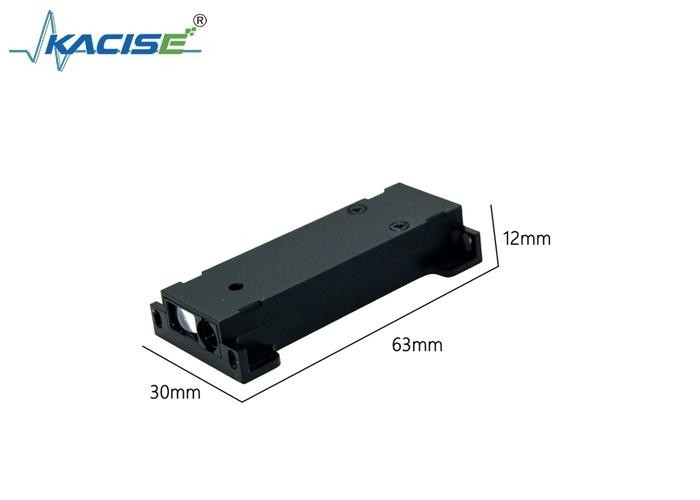

Compact size of 633012mm and light weight of 20.5g.
Multiple communication modes including serial (UART) and RS485 interface (TTL/USB/RS232/Bluetooth customizable).
Working temperature of 0 - 40℃ (-10 - 50℃ customizable), storage temperature of -25 - 60℃.

Technical Parameters

Model	KLS210
Measuring Range	0.03~20m
Measuring Accuracy	±1mm
Laser Grade	Class 2
Laser Type	620~690nm,<1mW
Working Voltage	6~32V
Measuring Time	0.4~4s
Frequency	3Hz
Size	633012mm
Weight	20.5g
Communication Mode	Serial Communication, UART
Interface	RS485(TTL/USB/RS232/ Bluetooth can be customized)
Working Temperature	0~40℃(Wide temperature -10 ℃ ~ 50 ℃ can be customized)
Storage Temperature	-25℃-~60℃
