Short Range 5m High Precision ±1mm Distance Sensor Laser Measuring Device with Small Size 63*30*12mm

Short Range 5m High Precision ±1mm Distance Sensor Laser Measuring Device with Small Size 633012mm

Name: Short Range 5m High Precision ±1mm Distance Sensor Laser Measuring Device with Small Size 63*30*12mm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLS210
Price: 5,000.00 USD
Availability: InStock

5m Laser Measuring Device

Short Range Laser Measuring Device

Distance Sensor Laser Measuring Device

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLS210

Request A Quote

Short Range 5m High Precision ±1mm Distance Sensor Laser Measuring Device with Small Size 63*30*12mm

Product Details

Measuring Range:

0.03~5m

Measuring Accuracy:

±1mm

Laser Grade:

Class 1

Laser Type:

620~690nm,<0.4mW

Working Voltage:

6~32V

Measuring Time:

0.4~4s

Highlight:

5m Laser Measuring Device

Short Range Laser Measuring Device

Distance Sensor Laser Measuring Device

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KL3A - 05U Indoor Robotics 3D Solid - State Lidar

Get Best Price

Video

KLSC Crane Operation High - Precision Industrial Laser Ranging Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

KL3A - 05U Educational Facility 3D Solid - State Lidar

Get Best Price

86--17719566736

Contact Now

Product Description

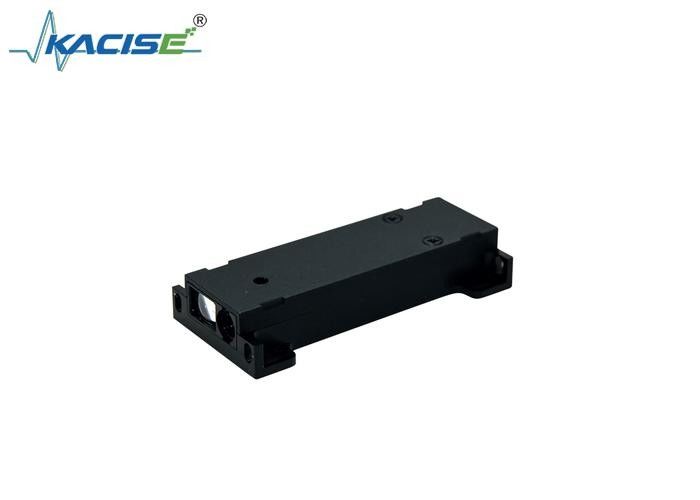

Distance Sensor Short Range 5m Laser Measuring Device

The 5m short range distance sensor is a phase-type laser measuring device featuring a compact size (63×30×12mm) with high measurement accuracy (±1mm) and fast measurement speed. Designed for industrial measurement applications requiring short-range precision, it offers multiple output interfaces for seamless integration.

Applications

Bridge static deflection monitoring systems
Tunnel deformation monitoring systems (overall and key point)
Liquid level, material level monitoring systems
Balance monitoring systems
Positioning and alarm systems in transportation and hoisting industries
Thickness and dimension monitoring systems
Mine elevator and large hydraulic piston height monitoring
Dry beach and tailings monitoring systems

Technical Specifications

Model	KLS210
Measuring Range	0.03~5m
Measuring Accuracy	±1mm
Laser Grade	Class 1
Laser Type	620~690nm, <0.4mW
Working Voltage	6~32V
Measuring Time	0.4~4s
Frequency	3Hz

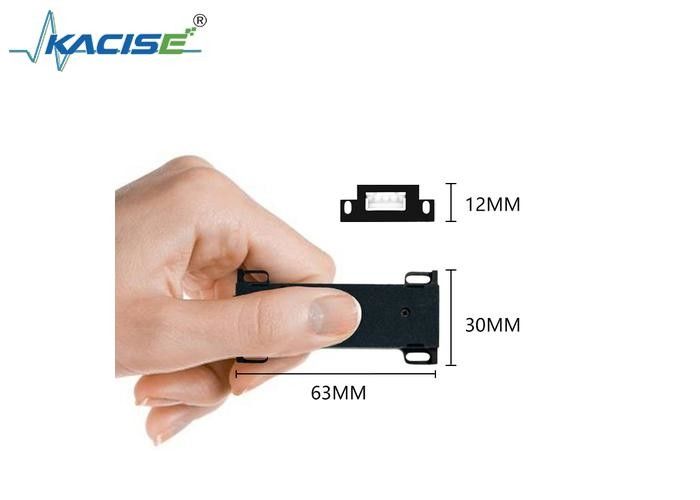

Size	63×30×12mm
Weight	20.5g
Communication Mode	Serial Communication, UART
Interface	RS485 (TTL/USB/RS232/Bluetooth customizable)
Working Temperature	0~40℃ (Wide temperature -10℃~50℃ customizable)
Storage Temperature	-25℃~60℃
