Name: Industrial Distance Sensor 10m High Precision
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLS210
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

Industrial Distance Sensor 10m High Precision

Industrial Distance Sensor

10m Distance Sensor

High Precision Distance Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLS210

Request A Quote

Industrial Distance Sensor 10m High Precision

Product Details

Measuring Range:

0.03~10m

Measuring Accuracy:

±1mm

Laser Grade:

Class 2

Laser Type:

620~690nm,<1mW

Working Voltage:

6~32V

Measuring Time:

0.4~4s

Highlight:

Industrial Distance Sensor

10m Distance Sensor

High Precision Distance Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

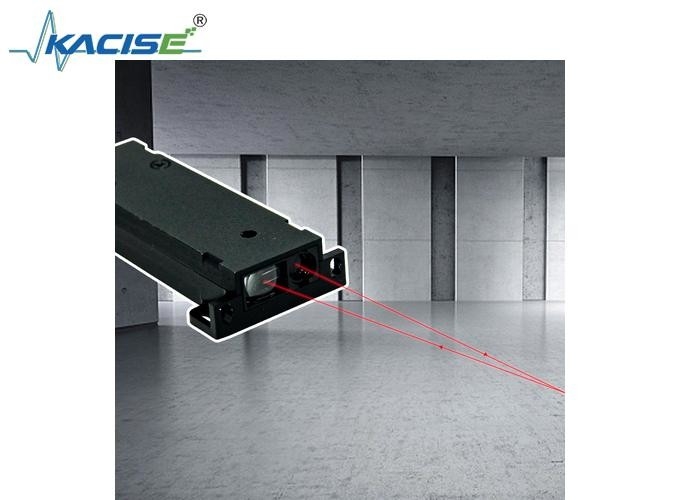

Industrial Distance Sensor 10m High Precision

Introduction

Industrial laser distance sensor is a device for measuring distance in industrial applications. It uses laser technology to measure the distance between the object and the sensor, and provides real-time data information that will trigger an alarm signal when the threshold is exceeded. The measuring distance range of the sensor can reach 40 meters, and it also has the characteristics of fast response, which can monitor the position and movement status of objects in real time.

Technical Parameters

Model	KLS210

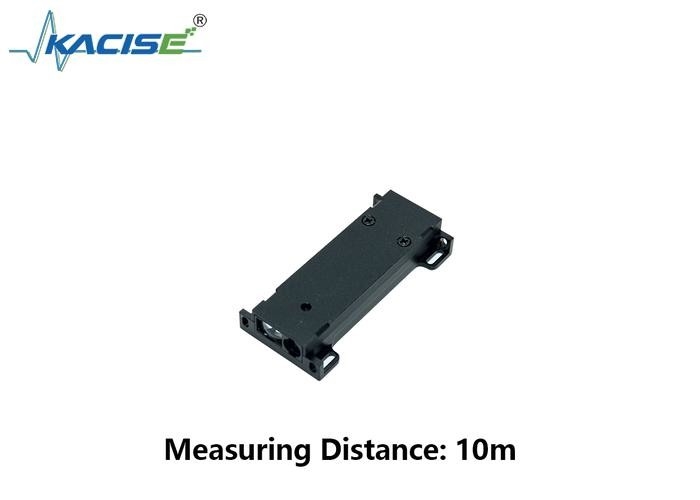

Measuring Range	0.03~10m
Measuring Accuracy	±1mm
Laser Grade	Class 2
Laser Type	620~690nm,<1mW
Working Voltage	6~32V
Measuring Time	0.4~4s

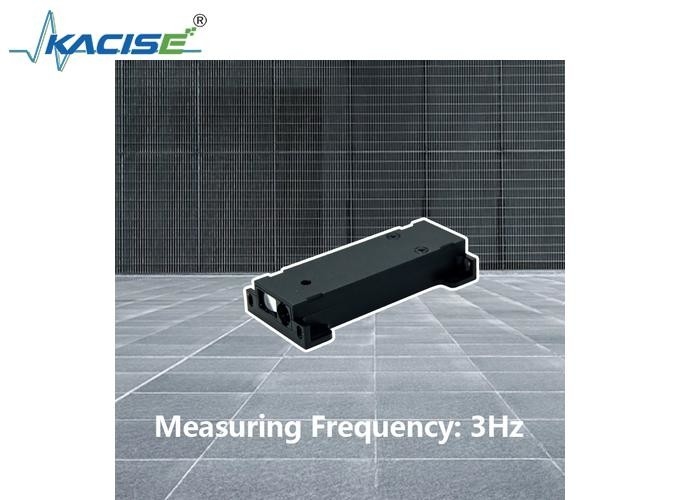

Frequency	3Hz
Size	633012mm
Weight	20.5g
Communication Mode	Serial Communication, UART
Interface	RS485(TTL/USB/RS232/ Bluetooth can be customized)
Working Temperature	0~40℃(Wide temperature -10 ℃ ~ 50 ℃ can be customized)
Storage Temperature	-25℃-~60℃
