Name: USB Non Contact Measurement 50m Industrial Laser Distance Sensors
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLS220
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

USB Non Contact Measurement 50m Industrial Laser Distance Sensors

Non Contact Industrial Laser Distance Sensors

50m Industrial Laser Distance Sensors

USB Industrial Laser Distance Sensors

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLS220

Request A Quote

USB Non Contact Measurement 50m Industrial Laser Distance Sensors

Product Details

Measuring Range:

0.03~60m

Frequency:

3Hz

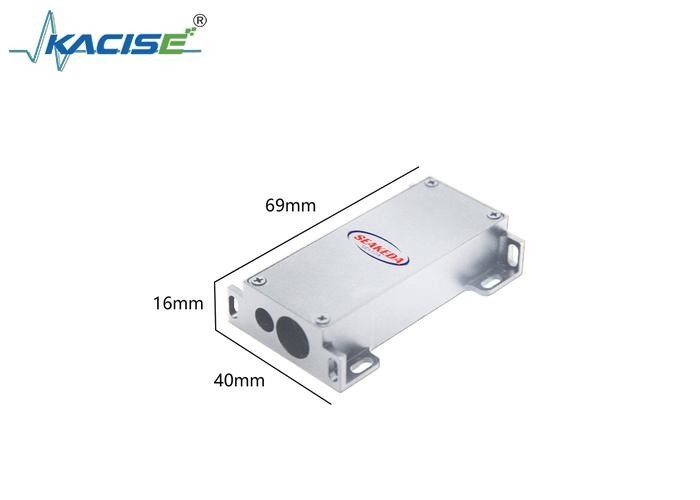

Size:

69*40*16mm

Measuring Accuracy:

±1mm

Weight:

40g

Laser Grade:

Class 2

Highlight:

Non Contact Industrial Laser Distance Sensors

50m Industrial Laser Distance Sensors

USB Industrial Laser Distance Sensors

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

USB Non Contact Measurement 50m Industrial Laser Distance Sensors

Introduction

The laser non contact distance measurement sensor uses the laser phase method to measure, and can measure the distance to the surface of the object or the surface of the reflective target without contact. It is suitable for industrial applications, especially for high-precision, non-direct contact applications, such as crane positioning and metallurgical production line control.

Product Features

1.Laser class 2, safe laser

2.The laser emission power is stable and can achieve millimeter-level measurement accuracy

3.The red laser is easy to aim at the measured target, which is convenient for installation and debugging

4.The protection level is IP54, which can be used in most harsh industrial sites

5.Equipped with professional testing software

6.Power supply 5-32V DC wide voltage

Technical Parameters

Model	KLS220	Frequency	3Hz
Measuring Range	0.03~60m	Size	694016mm
Measuring Accuracy	±1mm	Weight	40g
Laser Grade	Class 2	Communication Mode	Serial Communication, UART
Laser Type	620~690nm,<1mW	Interface	RS232(TTL/USB/RS485/ Bluetooth can be customized)
Working Voltage	5~32V	Working Temperature	0~40℃(Wide temperature -10 ℃ ~ 50 ℃ can be customized)
Measuring Time	0.4~4s	Storage Temperature	-25℃-~60℃
