Name: IP67 Waterproof Distance Sensor Outdoor High Precision
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLS250
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

IP67 Waterproof Distance Sensor Outdoor High Precision

IP67 Waterproof Distance Sensor

High Precision Distance Sensor

Outdoor Distance Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLS250

Request A Quote

IP67 Waterproof Distance Sensor Outdoor High Precision

Product Details

Measuring Range:

0.03~100m

Measuring Accuracy:

±3mm

Laser Grade:

Class 2

Laser Type:

620~690nm,<1mW

Working Voltage:

6~36V

Measuring Time:

0.4~4s

Highlight:

IP67 Waterproof Distance Sensor

High Precision Distance Sensor

Outdoor Distance Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

KL2A-25 LiDAR for robot navigation and obstacle avoidance, Absolute accuracy ±30mm

Get Best Price

Lidar can be used for ETC vehicle type recognition and can provide host computer software data analysis

Get Best Price

86--17719566736

Contact Now

Product Description

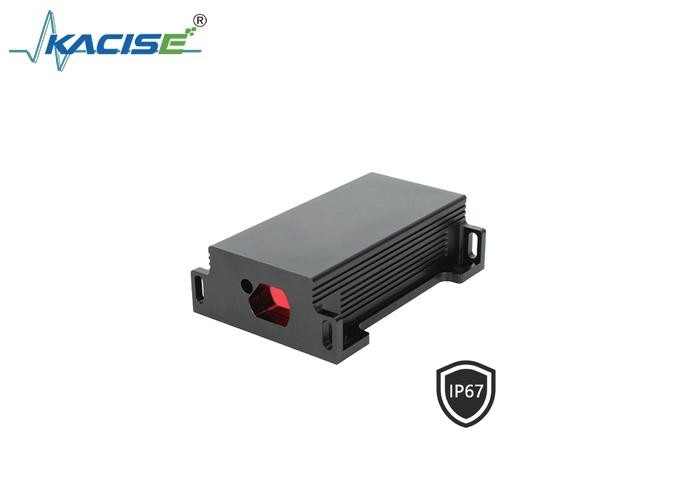

IP67 Waterproof Distance Sensor Outdoor High Precision

Introduction

100m laser ranging sensor adopts the phase method laser distance measure technology, which has superior measurement accuracy and extremely high stability, and realizes high-precision, non-contact, and uninterrupted measurement. IP67 protection level, it can still maintain excellent measurement stability and reliability in harsh outdoor environments. The standard industrial interface RS232, RS485/TTL, etc. can be customized, and with the operating software, a full range of industrial automation control can be realized.

Product Features

1. RS232 interface output, can customize a variety of interfaces, TTL, RS485, Bluetooth, etc.

2. DC 6~36V stable and ultra-wide power supply voltage

3. IP67 protection grade, dustproof and waterproof

4. Support multiple networking

Technical Parameters

Model	KLS250
Measuring Range	0.03~100m
Measuring Accuracy	±3mm
Laser Grade	Class 2
Laser Type	620~690nm,<1mW
Working Voltage	6~36V
Measuring Time	0.4~4s
Frequency	3Hz
Size	1228437mm
Weight	515g
Communication Mode	Serial Communication, UART
Interface	RS232(TTL/USB/RS485/ Bluetooth can be customized)
Working Temperature	-10~50℃(Wide temperature can be customized, Suitable for more harsh environments)
Storage Temperature	-25℃-~60℃
