Name: Long Laser Distance 20Hz High Speed Distance Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLS260
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

Long Laser Distance 20Hz High Speed Distance Sensor

High Speed Laser Distance Sensor

20Hz Laser Distance Sensor

Long Laser Distance Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLS260

Request A Quote

Long Laser Distance 20Hz High Speed Distance Sensor

Product Details

Frequency:

20Hz

Size:

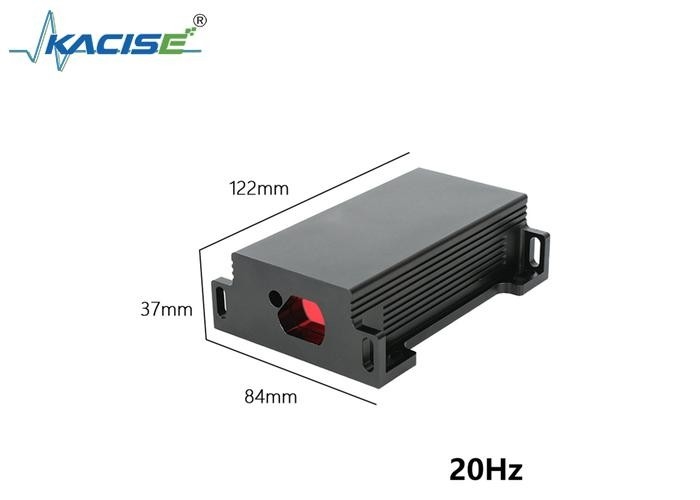

122*84*37mm

Weight:

515g

Communication Mode:

Serial Communication, UART

Interface:

RS485(TTL/USB/RS232/ Bluetooth Can Be Customized)

Storage Temperature:

-25℃-~60℃

Highlight:

High Speed Laser Distance Sensor

20Hz Laser Distance Sensor

Long Laser Distance Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

KL2A-25 LiDAR for robot navigation and obstacle avoidance, Absolute accuracy ±30mm

Get Best Price

Lidar can be used for ETC vehicle type recognition and can provide host computer software data analysis

Get Best Price

86--17719566736

Contact Now

Product Description

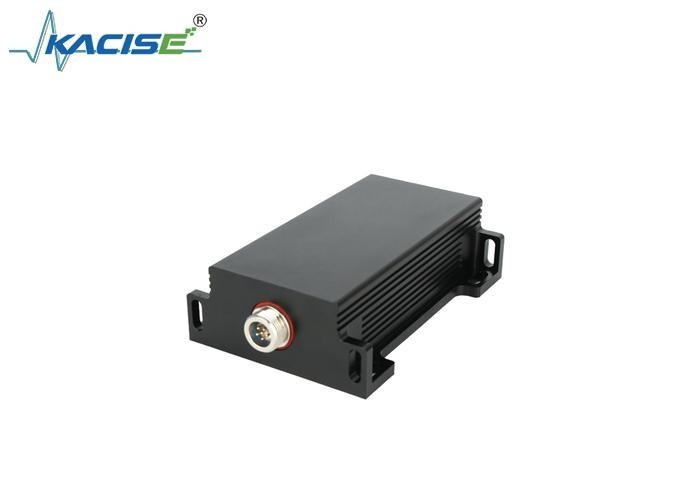

Long Laser Distance 20Hz High Speed Distance Sensor

Introduction

Highest protection level IP67 high speed lidar sensor using the phase principle technology, based on this technology, the industrial laser sensor provide accurate, reliable measurement results. The lidar distance sensor use a measuring laser with laser class 2. Based on its measurement advantages, There will be good performance in many projects.

Product Features

• - Precise measurement of the displacement, distance and position on different surfaces

• - Visible lasers can be used to aim at targets

• - Large measuring range up to 100m, for both indoor and outdoor use

• - High repeatability 1mm

• - High accuracy /-3mm and signal stability

• - Fast response time 20HZ

• - Extremely compact design and excellent price/performance ratio

• - Open interfaces, such as: RS485, RS232, TTL and so on

• -IP67 protective housing for easy installation and protection against water immersion and dust.

Technical Parameters

Model	KLS260	Frequency	10Hz
Measuring Range	0.03~40m	Size	694016mm
Measuring Accuracy	±1mm	Weight	40g
Laser Grade	Class 2	Communication Mode	Serial Communication, UART
Laser Type	620~690nm,<1mW	Interface	RS485(TTL/USB/RS232/ Bluetooth can be customized)
Working Voltage	5~32V	Working Temperature	0~40℃(Wide temperature -10 ℃ ~ 50 ℃ can be customized)
Measuring Time	0.4~4s	Storage Temperature	-25℃-~60℃
