100m Lidar Long Range Laser Sensor For Object Detection with Working Voltage 5-32V and Measuring Time 0.04-4s

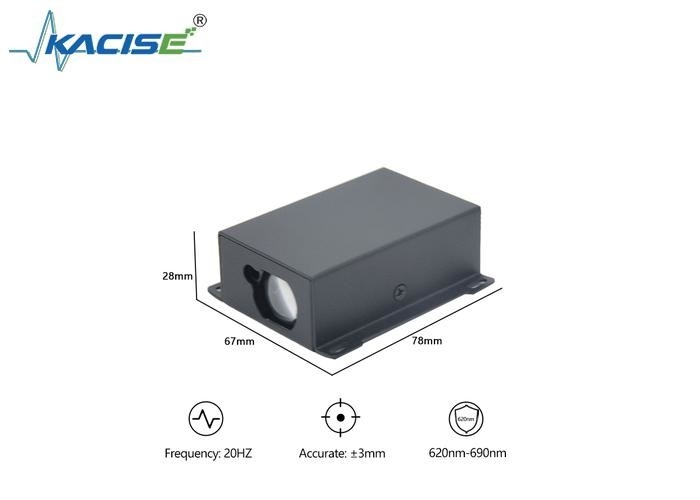

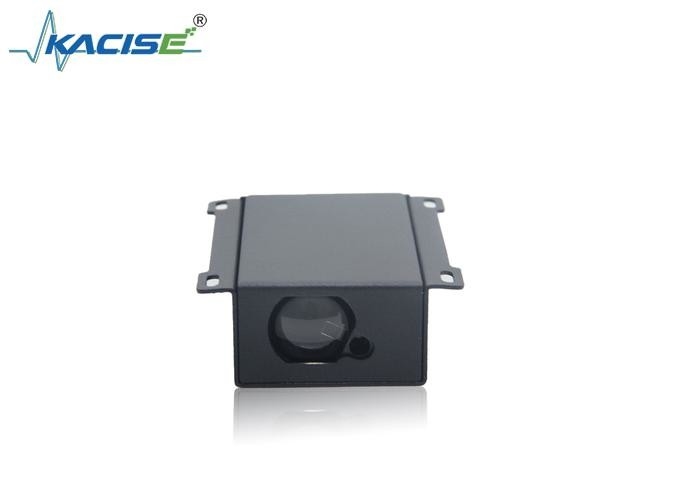

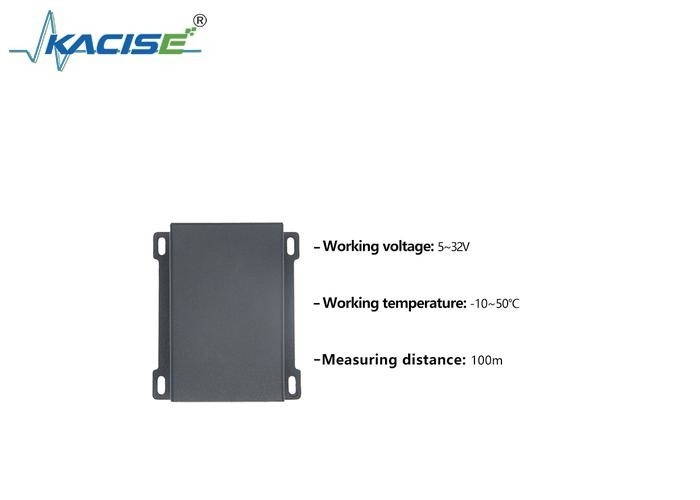

100m Lidar Long Range Laser Sensor For Object Detection

Introduction

100m Lidar Long Range Laser Sensor for Object Detection can communicate with PLC and other equipment through RS485, set measurement parameters, realize remote monitoring, data transmission, etc. The PLC sends commands to the distance sensor long range to request measurements, and the sensor responds to the commands. The PLC then receives the data transmitted from the long range laser distance sensor to control other devices or make decisions based on the measured distance. For example, a PLC can use distance measurements to control the position of a robotic arm, navigate a robot to avoid obstacles ahead, or trigger an alarm if an object gets too close to a danger zone. Laser distance sensor long range can detect and measure distances up to hundreds of meters. Long range lidar can accurately measure both stationary and moving objects, making them suitable for applications requiring real-time distance calculations. Long range distance measurement sensors are used in a wide variety of industries, including construction, robotics, automation, and self-driving cars.

Operation Protocol

USART Interface

l Baud rate:Auto Detect (9600bps ~115200bps recommend) OR Default 115200bps

l Start bits:1 bit

l Data bits:8 bits

l Stop bits:1 bit

l Parity:none

l Flow control:none

Technical Parameters
