Name: 8Hz Laser Sensor for High Precision Distance Measurement up to 40M with ±1mm Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLS260
Price: 5,000.00 USD
Availability: InStock

Home > Products > Laser Sensors >

8Hz Laser Sensor for High Precision Distance Measurement up to 40M with ±1mm Accuracy

High Precision Laser Sensor

Distance Measurement Laser Sensor

40M Laser Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLS260

Request A Quote

8Hz Laser Sensor for High Precision Distance Measurement up to 40M with ±1mm Accuracy

Product Details

Measuring Range:

0.03~40m

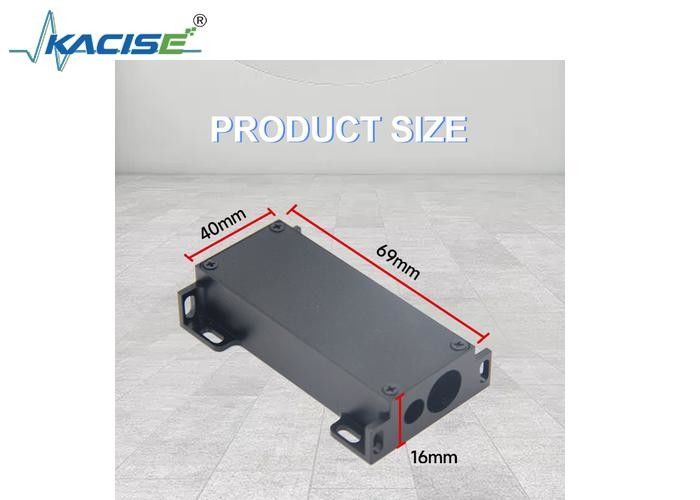

Size:

69*40*16mm

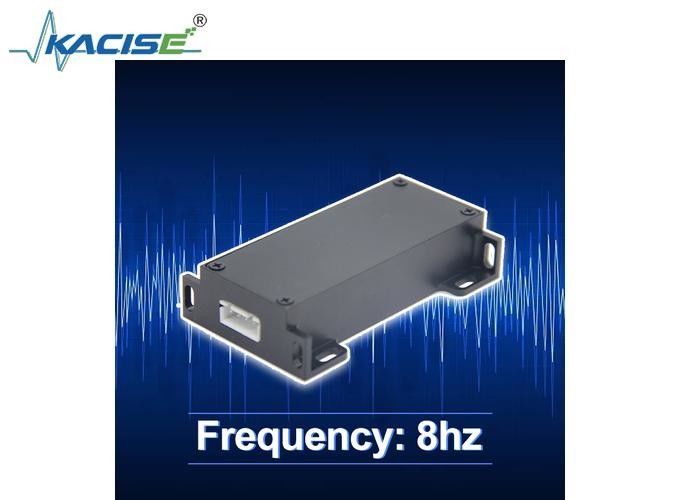

Frequency:

8Hz

Measuring Accuracy:

±1mm

Weight:

40g

Laser Grade:

Class 2

Highlight:

High Precision Laser Sensor

Distance Measurement Laser Sensor

40M Laser Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

RS485 Interface Laser Distance Sensor with 10m Range and ±1mm Accuracy for Industrial Applications

Get Best Price

Video

LSDM Outdoor Exploration Long-Range DtoF Laser Ranging Module with 1500m Range ±1m Accuracy and UART Output

Get Best Price

KL3A-05U Educational Facility 3D Solid-State Lidar with CLASS 1 Laser and USB 2.0 Protocol for Safe and Efficient Data Transfer

Get Best Price

Outdoor Long Distance Laser Radar Ranging Module with Absolute Accuracy ±1m and 1000m Range

Get Best Price

Contact Now

Product Description

8Hz Laser Sensor For Distance Measurement 40M

Introduction

KLS260 laser ranging sensor 8Hz frequency, can quickly and accurately measure the distance to the target, the measurement results can be transmitted to the equipment with RS485 protocol interface through the laser ranging sensor RS485 interface, for detection, control and other applications. At the same time, the control of laser ranging sensor can also be accomplished by computer, PLC or other connected equipment.

Product Features

Strong anti-stray light interference ability: can be used indoors, can also be used outdoors.
High precision: accuracy up to ±1mm.
Fast measurement speed: the measurement frequency is 8Hz per second, which can be used for moving target measurement.
Easy to operate: it can control the operation by computer input instruction, also can work on the power, can work intermittently, but also can work continuously for a long time.
Digital output: output through an RS485 universal serial port.

Technical Parameters

Model	KLS260	Frequency	8Hz
Measuring Range	0.03~40m	Size	694016mm
Measuring Accuracy	±1mm	Weight	40g
Laser Grade	Class 2	Communication Mode	Serial Communication, UART
Laser Type	620~690nm,<1mW	Interface	RS485(TTL/USB/RS232/ Bluetooth can be customized)
Working Voltage	5~32V	Working Temperature	0~40℃(Wide temperature -10 ℃ ~ 50 ℃ can be customized)
Measuring Time	0.4~4s	Storage Temperature	-25℃-~60℃
