Name: 60m Green Laser Measure Distance Sensors Arduino
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLS270
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

60m Green Laser Measure Distance Sensors Arduino

Green Laser Measure Distance Sensors

60m Laser Measure Distance Sensors

Arduino Laser Measure Distance Sensors

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLS270

Request A Quote

60m Green Laser Measure Distance Sensors Arduino

Product Details

Measuring Range:

0.03~60m

Measuring Accuracy:

±3mm

Laser Grade:

Class 3

Laser Type:

520nm,>1mW

Working Voltage:

DC 2.5~3V

Measuring Time:

0.4~4s

Highlight:

Green Laser Measure Distance Sensors

60m Laser Measure Distance Sensors

Arduino Laser Measure Distance Sensors

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

KL2A-25 LiDAR for robot navigation and obstacle avoidance, Absolute accuracy ±30mm

Get Best Price

Lidar can be used for ETC vehicle type recognition and can provide host computer software data analysis

Get Best Price

86--17719566736

Contact Now

Product Description

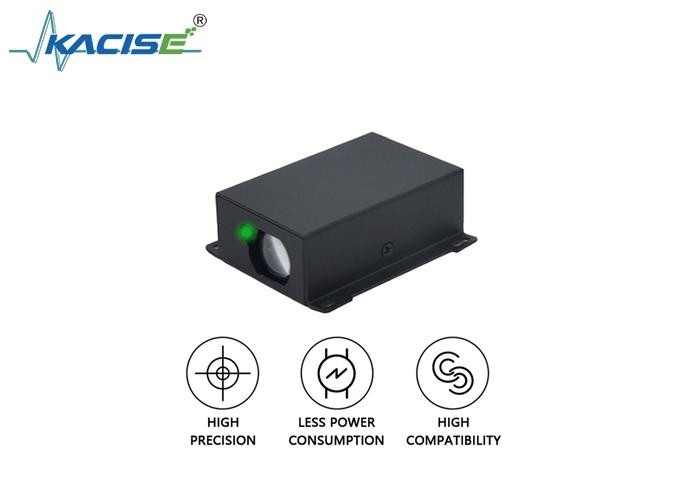

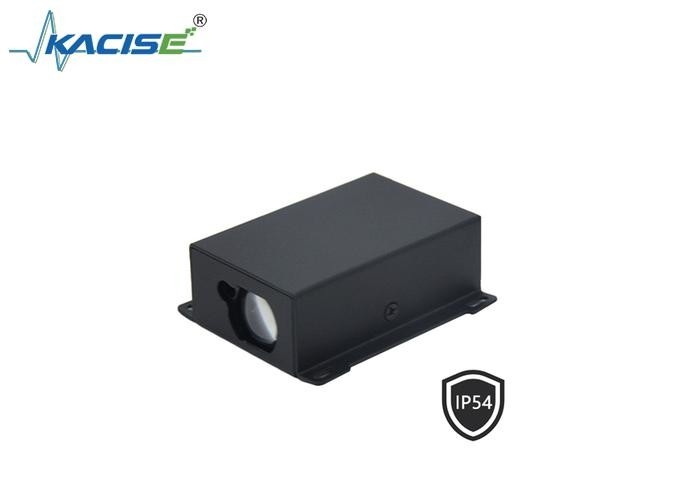

60m Green Laser Measure Distance Sensors Arduino

Introduction

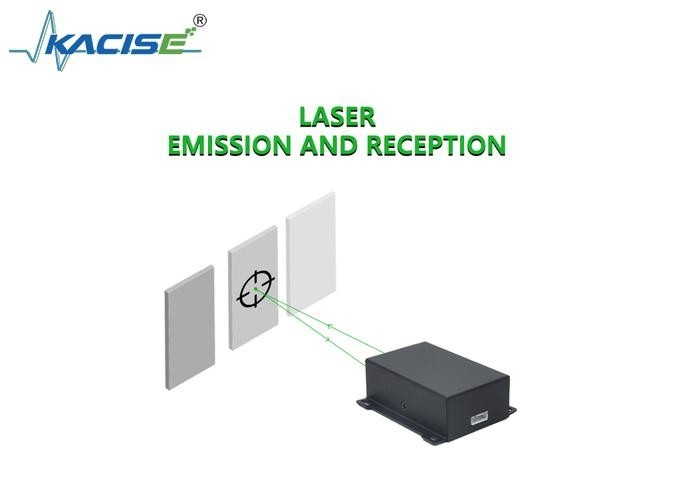

The green laser measure distance sensor is a green laser measuring device that continuously measures distance online (all-day online measurement) and can transmit data in real time. According to this feature, the distance sensors arduino can be used for industrial monitoring, industrial intelligent automation, security alarm systems, etc. The human eye is 4 to 5 times more sensitive to green light than red light, so it is better to use green light laser distance sensor in complex environments.

Product Features

(1). When laser measure, there is no need to contact the measurement surface, and the surface of the object will not be deformed.

(2). The surface of the object to be measured will not be worn during laser ranging, reducing additional damage.

(3). In many special environments, there is no condition to use conventional measurement tools for contact measurement, and only laser ranging technology can be used.

Technical Parameters

Model	KLS270	Frequency	3Hz
Measuring Range	0.03~60m	Size	786728mm
Measuring Accuracy	±3mm	Weight	72g
Laser Grade	Class 3	Communication Mode	Serial Communication, UART
Laser Type	520nm,>1mW	Interface	RS485(TTL/USB/RS232/ Bluetooth can be customized)
Working Voltage	DC 2.5~3V	Working Temperature	-10~50℃
Measuring Time	0.4~4s	Storage Temperature	-25℃-~60℃
