LSEM Security Perimeter Laser Radar Ranging Module

Overview

Designed to enhance security perimeters, the LSEM Security Perimeter Laser Radar Ranging Module offers reliable long - distance detection. Using pulse method technology, it can accurately measure distances up to 100 meters. Its compact size and 13g weight make it easy to integrate into security systems. With an operating temperature range of - 20~60℃, it can withstand various environmental conditions. The laser, with a safety level of 2 and a lifespan over 10,000 hours, provides consistent performance, helping security teams detect intruders and potential threats in a timely manner.

Product Features

Long - Range Detection: Covers large security perimeters effectively.
Wide Operating Temperature Range: Ensures stable operation in different climates.
Safe and Reliable Laser: Prioritizes user safety and long - term performance.

Technical Parameters

Measurement	0.03... 90% reflectivity in the 100m room
Duplicate accuracy	2mm
Absolute accuracy	±3mm
Measuring rate	3...20Hz
Measure the target object	natural target
Laser life	Over 10,000 h
light source	635nm red visible laser
Laser safety level	2
Typical light spot size	10m: 5x3mm; 25m: 10x6mm; 50m: 15x10mm 100m: 30x20mm
Interface	UART
Working voltage	DC2.5…3.3 V
Working temperature	-20~60℃
power dissipation	＜0.27W
size	63×40×18mm

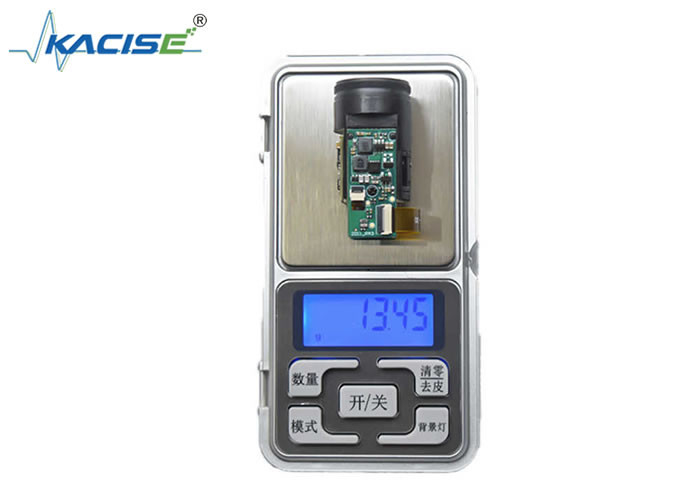

weight	13g
