Name: LSBM-100 Robot Navigation Laser Ranging Module
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: LSBM-100
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

LSBM-100 Robot Navigation Laser Ranging Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

LSBM-100

Request A Quote

Product Details

Frequency:

1...20Hz

Description:

Long Measuring Range 100m

Accuracy:

±3mm

Measuring Range:

0.03... 90% Reflectivity In The 100m Room

Size / Dimension:

63x40x18mm

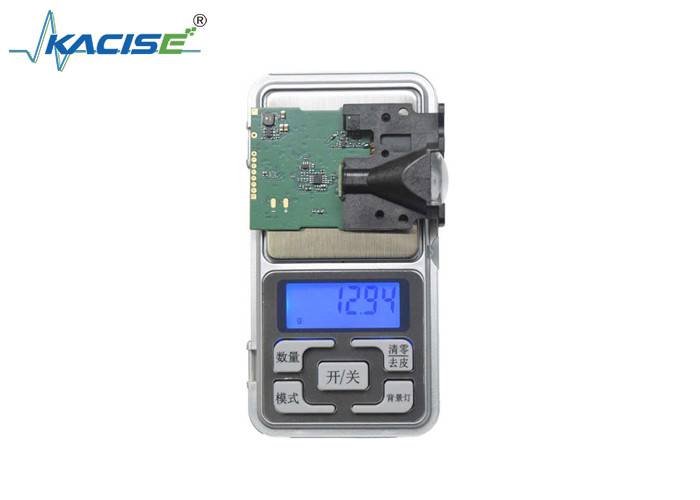

Weight:

13g

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

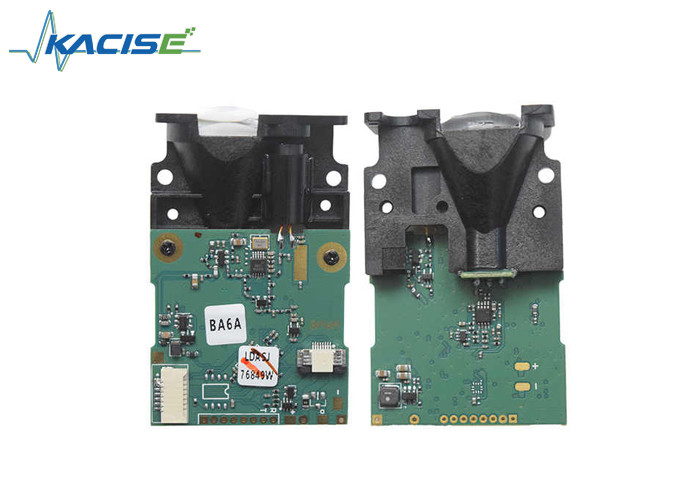

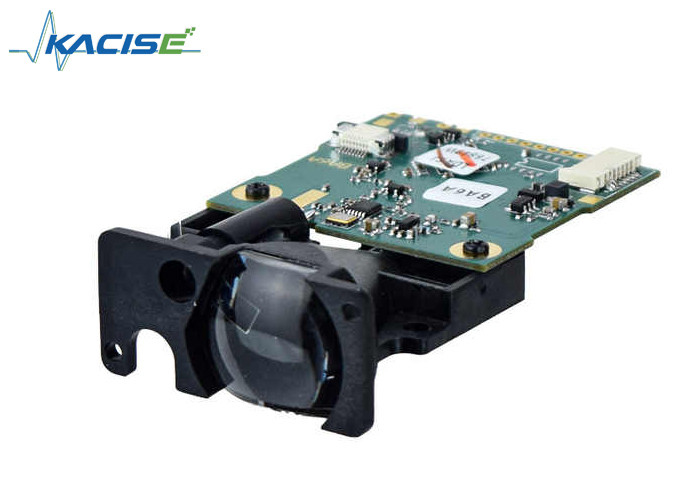

LSBM-100 Robot Navigation Laser Ranging Module

Product Introduction

Designed specifically for robot navigation, the LSBM-100 Robot Navigation Laser Ranging Module equips robots with reliable distance - sensing capabilities. Through ITOF technology, it quickly and accurately measures distances up to 100 meters. The module’s compact dimensions and 13g weight don't compromise its performance. With a duplicate accuracy of 2mm and a high data update frequency of 20Hz, it helps robots navigate complex terrains. Its wide operating temperature range and long laser life guarantee stable operation during extended use.

Product Features

High Precision: Enables robots to precisely detect obstacles and navigate.
Fast Data Update: Keeps up with the dynamic movement of robots.
Wide Temperature Tolerance: Allows operation in various environmental conditions.

Technical Parameters

Measurement	0.03... 90% reflectivity in the 100m room
Duplicate accuracy	2mm
Absolute accuracy	±3mm
Measuring rate	3...20Hz
Measure the target object	natural target
Laser life	Over 10,000 h
light source	635nm red visible laser
Laser safety level	2
Typical light spot size	10m: 5x3mm; 25m: 10x6mm; 50m: 15x10mm 100m: 30x20mm
Interface	UART
Working voltage	DC2.5…3.3 V
Working temperature	-20~60℃
power dissipation	＜0.27W

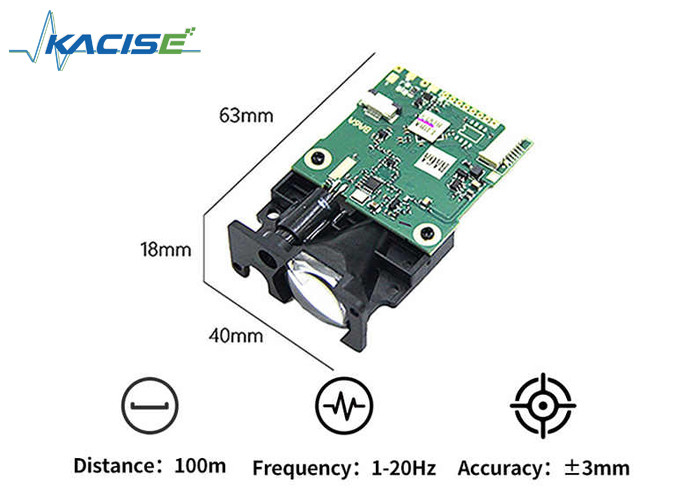

size	63×40×18mm
weight	13g
