Name: LSEM Construction Site Laser Radar Ranging Module
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: LSEM
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

LSEM Construction Site Laser Radar Ranging Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

LSEM

Request A Quote

Product Details

Output:

UART

Resolution Ratio:

0.1m

Measuring Range:

3... 1000m

Service Voltage:

Voltage Range Is DC3...3.5V

Aabsolute Accuracy:

±1m

Power Dissipation:

330mW

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

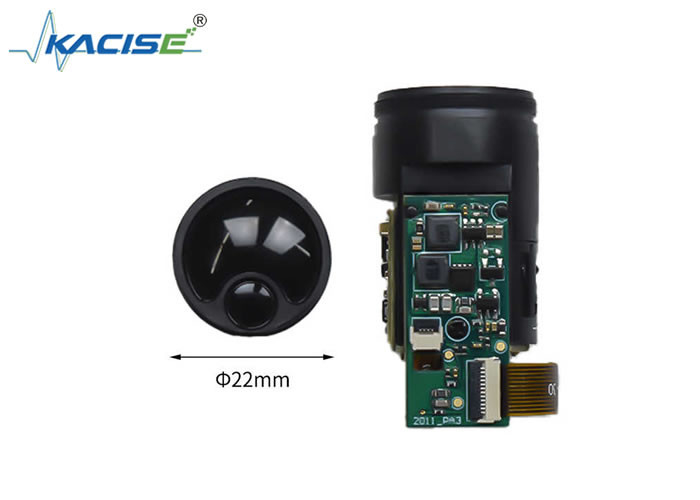

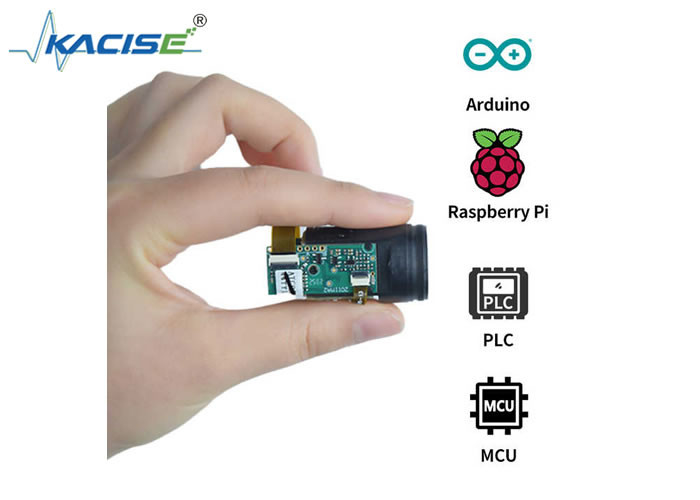

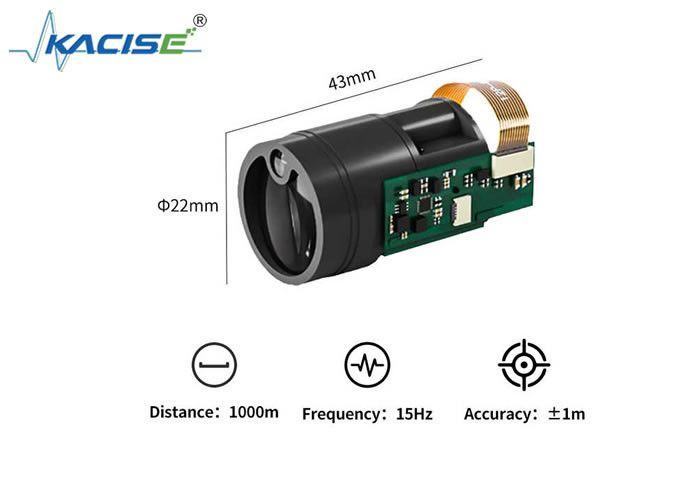

LSEM Construction Site Laser Radar Ranging Module

Overview

The LSEM Construction Site Laser Radar Ranging Module is a crucial tool for the construction industry. Employing pulse method technology, it delivers highly accurate long - distance measurements, with an absolute accuracy of ±3mm and duplicate accuracy of 2mm. Measuring 63×40×18mm and weighing 13g, it’s easy to install on construction equipment. It can measure up to 100 meters, and its 20Hz measuring rate ensures real - time data collection. The 635nm red visible laser, with a lifespan over 10,000 hours and safety level 2, makes it both reliable and safe to use on construction sites.

Product Features

Advanced Pulse Technology: Enables long - range and accurate measurements.

Compact and Lightweight: Facilitates installation on various construction machinery.

Long - lasting Laser: Reduces maintenance and replacement costs.

Technical Parameters

Measurement	0.03... 90% reflectivity in the 100m room
Duplicate accuracy	2mm
Absolute accuracy	±3mm
Measuring rate	3...20Hz
Measure the target object	natural target
Laser life	Over 10,000 h
light source	635nm red visible laser
Laser safety level	2
Typical light spot size	10m: 5x3mm; 25m: 10x6mm; 50m: 15x10mm 100m: 30x20mm
Interface	UART
Working voltage	DC2.5…3.3 V
Working temperature	-20~60℃
power dissipation	＜0.27W
size	63×40×18mm

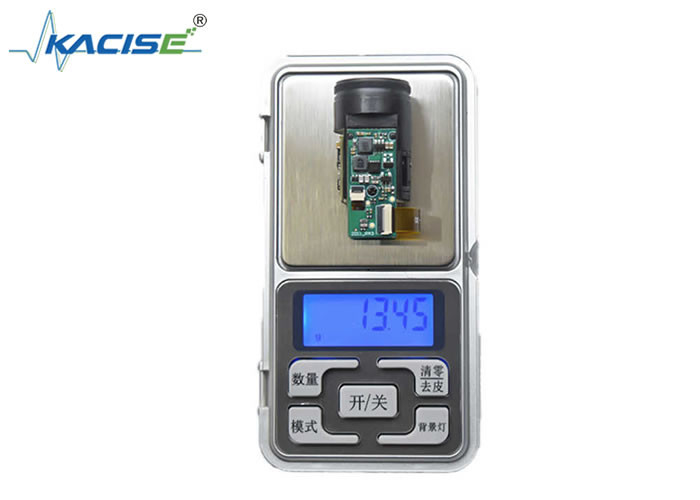

weight	13g
