Name: LSBM - 60 Robot Navigation High - Precision ITOF Laser Ranging Module
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: LSBM - 60
Price: 5,000.00 USD
Availability: InStock

Home > Products > Laser Sensors >

LSBM - 60 Robot Navigation High - Precision ITOF Laser Ranging Module

high-precision laser ranging module

robot navigation laser sensor

ITOF laser sensor module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

LSBM - 60

Request A Quote

Product Details

Detection Range:

60m

Output:

UART

Power Dissipation:

<0.27W

Illuminant:

635nm Red Visible Laser

Working Temperature:

-20~60℃

Highlight:

high-precision laser ranging module

robot navigation laser sensor

ITOF laser sensor module

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSC Crane Operation High - Precision Industrial Laser Ranging Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

KL3A - 05U Educational Facility 3D Solid - State Lidar

Get Best Price

Video

KLSC Automated Production Line High - Precision Industrial Laser Ranging Sensor

Get Best Price

86--17719566736

Contact Now

Product Description

LSBM - 60 Robot Navigation High - Precision ITOF Laser Ranging Module

Overview

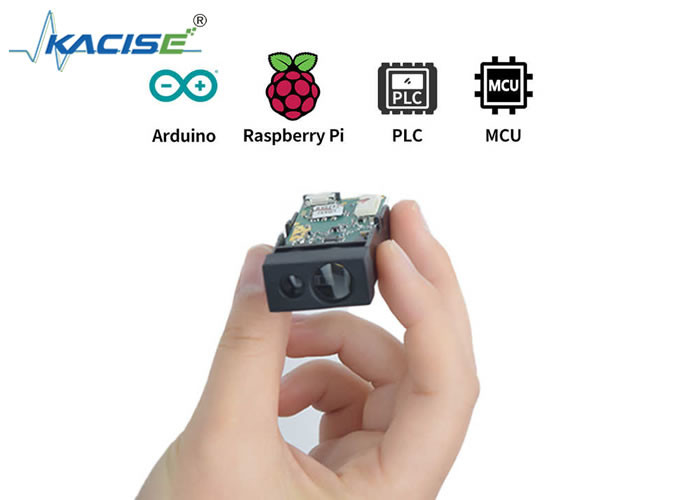

Specifically designed for robot navigation, the LSBM - 60 Robot Navigation High - Precision ITOF Laser Ranging Module equips robots with reliable distance - sensing capabilities. Thanks to its advanced ITOF technology, it can rapidly and accurately measure distances up to 60 meters. With an accuracy of ±3mm and 2 - mm repeatability precision, it enables robots to navigate complex terrains precisely. Weighing 9g and featuring a UART interface, it’s easy to install on robots. Operating at low power (<0.27W) across - 20℃ to 60℃, it’s a stable and cost - effective option for robot navigation.

Product Features

1. Empowers robots with accurate distance detection for seamless navigation.

2. Compact design suits installation on various robots.

3. Cost - effective with low power consumption.

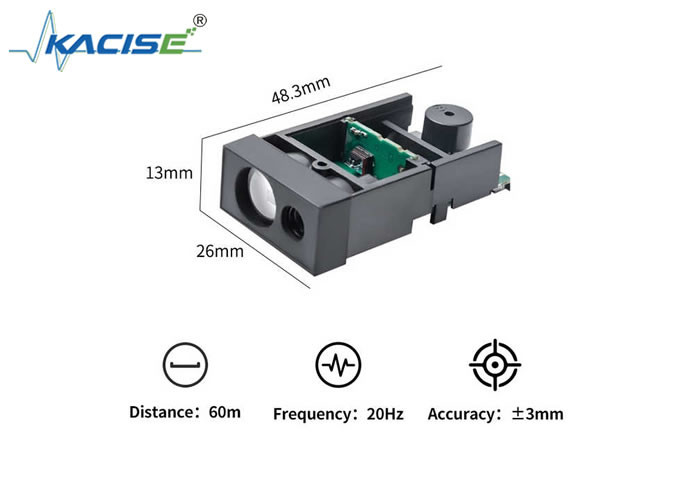

Technical Parameters

Mounting Type	Manual Installation
Description	Laser Distance Measuring Sensor 60m
Model Number	LSBM-60
Type	Distance Sensor
Series	Laser Distance Module 60m
Features	Small Size, High Precision, High Stability
Manufacturing Date Code	202501
Theory	ITOF
Output	UART
Description	LSBM-60
Detection Range	60m
Frequency	3-20Hz
Repeatability precision	2mm
Accuracy	±3mm
Illuminant	635nm red visible laser
Service voltage	DC3.3V
Power dissipation	<0.27W
Weight	9g
Working temperature	-20~60℃
Interface	UART
