Name: 2D 360° Laser Scanning Radar, Navigation And Obstacle Avoidance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KL2A - 25
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

2D 360° Laser Scanning Radar, Navigation And Obstacle Avoidance

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KL2A - 25

Request A Quote

2D 360° Laser Scanning Radar, Navigation And Obstacle Avoidance

Product Details

Measuring Rate:

1...25Hz

Description:

2D 360 ° Laser Scanning Radar

Type:

Distance Sensor

Absolute Accuracy:

±30mm

Power Dissipation:

Measurement:

0.1...25m

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

KL2A - 25 Logistics Warehouse High - Precision Laser Distance Sensor

Overview

The KL2A - 25 Logistics Warehouse High - Precision Laser Distance Sensor streamlines warehouse operations. Using DTOF technology, it measures distances up to 100m. With angular resolutions like 0.25°@10Hz, it provides detailed data. The built - in digital display helps operators quickly access measurement results. Supporting PLC programming, it can be integrated with automated warehouse systems. The RS485 Modbus - RTU protocol and 4 - 20mA analog output ensure stable data transfer for inventory management and forklift navigation. Installation is simple, enhancing warehouse efficiency.

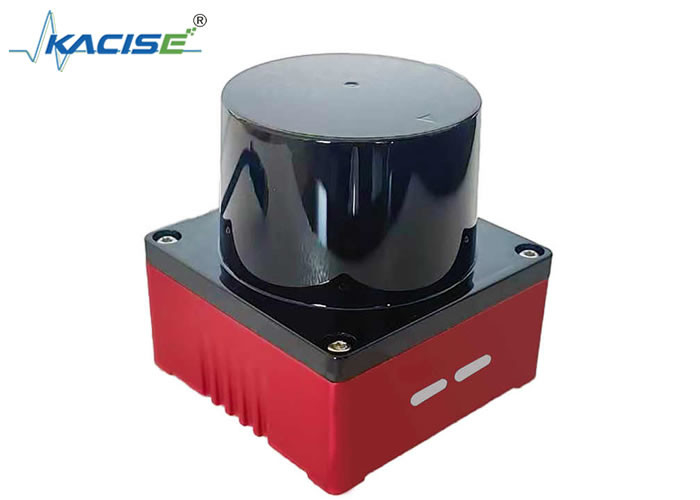

2D 360° Laser Scanning Radar, Navigation And Obstacle Avoidance 0

Product Features

1. High - precision and high - density point cloud data for detailed warehouse monitoring.

2. Compatibility with automated warehouse systems for better management.

3. Easy installation, improving overall warehouse operation efficiency.

Technical Parameters

Mounting Type	manual install
Description	2D 360 ° laser scanning radar
Model Number	KL2A-25
Type	Distance Sensor
Series	KL2A-25
Features	2D LiDAR
Manufacturing Date Code	202501
Brand Name	Siman
Theory	DTOF
Output	Network port, switch quantity
Description	KL2A-25
Measurement	0.1...25m
Duplicate accuracy	±20mm
Absolute accuracy	±30mm
Measuring rate	1...25Hz
Angular resolution	0.25°@10Hz;0.5°@15Hz;1°@25Hz
Point cloud density	14.4K@10Hz;10.8K@15Hz;9K@25Hz
Interface	Network port, switch quantity
Working voltage	DC12...30V
power dissipation	5W

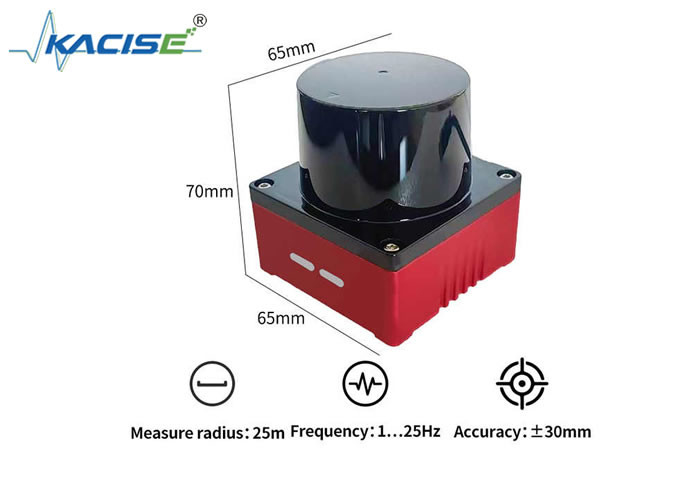

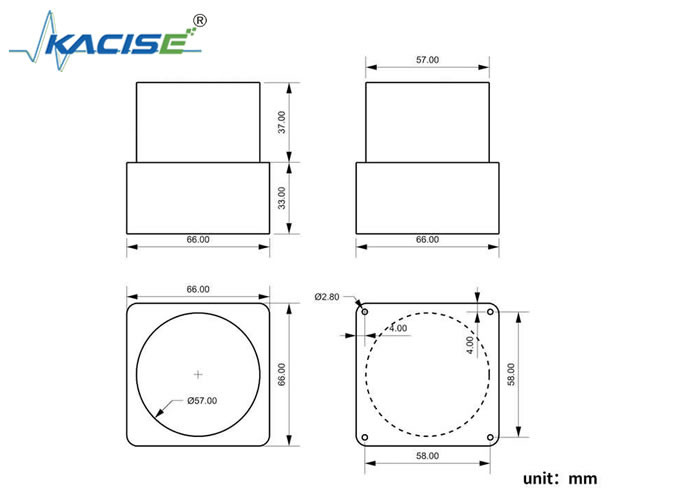

Dimension

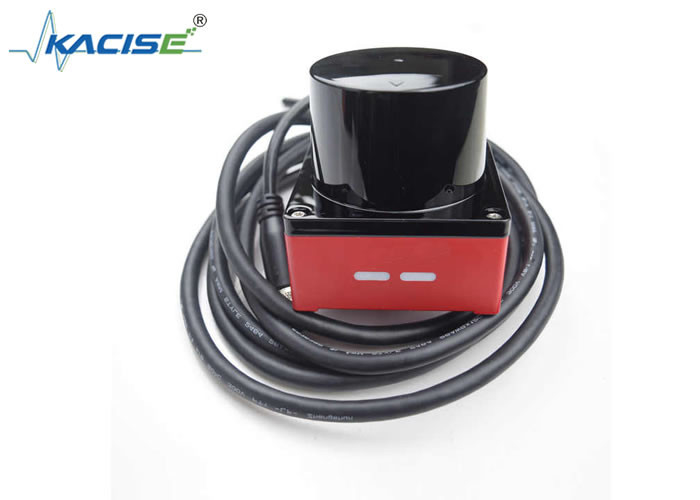

2D 360° Laser Scanning Radar, Navigation And Obstacle Avoidance 1
