Name: KLSC Crane Operation High - Precision Industrial Laser Ranging Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLSC
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

KLSC Crane Operation High - Precision Industrial Laser Ranging Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLSC

Chat Now

Product Details

Measuring Rate:

1...25Hz

Measurement:

0.1...25m

Description:

2D 360 ° Laser Scanning Radar

Absolute Accuracy:

±30mm

Type:

Distance Sensor

Power Dissipation:

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Chat Now

Product Description

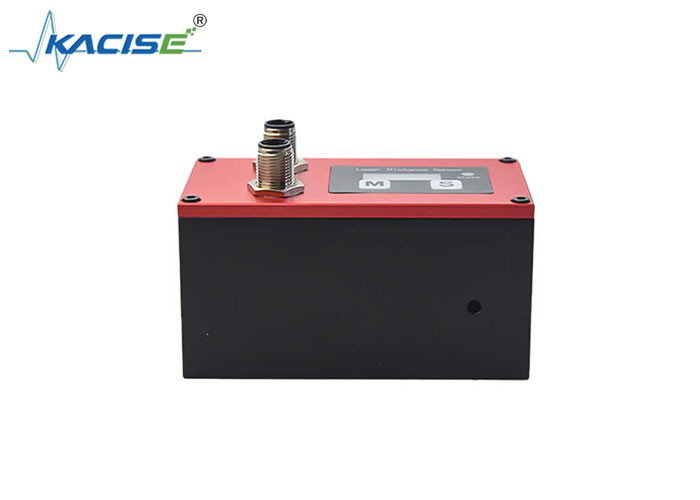

KLSC Crane Operation High - Precision Industrial Laser Ranging Sensor

Overview

Specifically designed for crane operations, the KLSC Crane Operation High - Precision Industrial Laser Ranging Sensor uses ITOF technology to measure distances up to 200m with 卤1mm accuracy. Its high measurement frequency of up to 100Hz allows for real - time monitoring of crane movements. Multiple communication interfaces like RS485 and Ethernet enable easy connection to crane control systems. The IP67 protection grade shields it from dust and water, ensuring reliable performance. The built - in OLED display and simple parameter settings enhance user experience during crane operation.

Product Features

1. Ultra - high precision for accurate crane positioning and movement control.

2. High measurement frequency to track crane movements in real - time.

3. IP67 protection for stable operation in outdoor crane environments.

Technical Parameters

Specifications
Measurement	0.05…30/60/100/150/200m
frequency	0.1mm
Duplicate accuracy	0.5mm
Accuracy	±1mm
Measuring frequency	1…30…100Hz
Response time	Min 10ms
Exercise target speed	＜5m/s
Measure the target object	Natural surface or dedicated reflex board
Environmental light effect	Anti -outdoor sunlight 1000klux
Light source	650 ~ 660nm,<1mW,II class
Light spot size diameter	6mm@10m；30mm@50m:60mm@100m
Power supply voltage	DC7~26V
Average current	100mA@10V
Power consumption	＜1.5W
Shell material	aluminum
Dust -proof lens material	PC
Specification	5757108mm
Shell protection level	IP67
weight	445g
Working temperature	20~60℃
Laser life	100,000h or more
Install	With installation brackets, can be equipped with anti -light board
