Name: 4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAW103
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial

Smart Double Flange Pressure Transmitter

Industrial Differential Level Pressure Transmitter

4-20mA HART Output Pressure Transmitter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAW103

Request A Quote

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial

Product Details

Output Signal:

4-20mA + HART, Square Root Output

Process Connection:

Flanged 2" ANSI B16.5 CL300 RF.,

Supply:

DC 24V.,

Ingress Protection:

IP65/IP66

Medium Density:

965kg/m3

Process Temperature:

200°C

Highlight:

Smart Double Flange Pressure Transmitter

Industrial Differential Level Pressure Transmitter

4-20mA HART Output Pressure Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Auto Parts Automotive Air Conditioning Pressure Sensor

Get Best Price

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

Get Best Price

Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas

Get Best Price

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial

Get Best Price

86--17719566736

Contact Now

Product Description

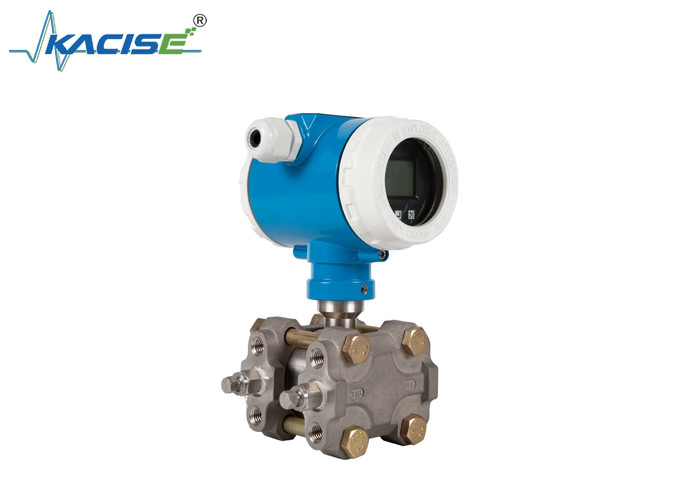

Smart Double Flange Differential Level Pressure Transmitter

Product Description

Differential pressure level transmitter with remote seals .,

Model KAW103

Accuracy class : 0.075.,

Output signal: 4-20mA + HART, Square Root output

Process connection: flanged 2 ANSI B16.5 CL300 RF.,

Capillary length (min.): default 3 meters each side ( high pressure & low pressure side)

Supply: DC 24V.,

Ingress protection: IP65/IP66

ExiaIICT6., Local indication LCD.

The presence of pouring rings (material stainless steel),

Diap. meas.: 0-20.81kPa (The range of the measuring cell is not more than 0-50 kPa)

Medium density: 965kg/m3

Process temperature: 200°C

Ambient temperature: -20...60°C

Application:

1. Gauge and absolute pressure measurement of gas, vapour or liquid in various processing control fields
2. Level, volume or mass measurement in liquid;
3. Working with detecting elements to measure flow of gas, vapour and liquid ( volume and mass flow)
4. Highest measurement pressure up to 700bar.

Dimensions

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial 0
