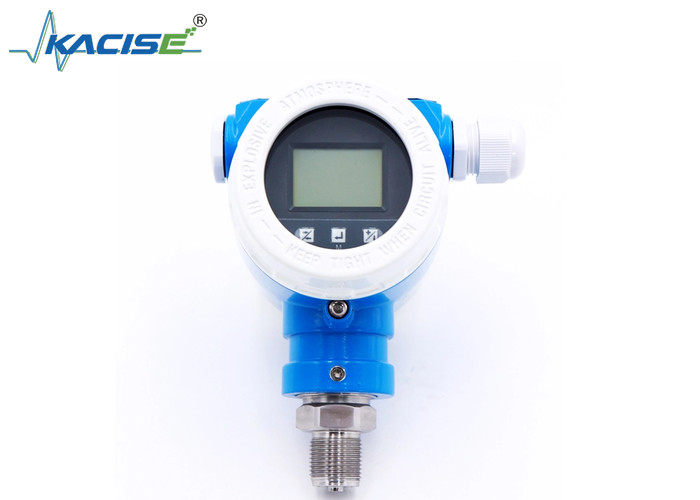

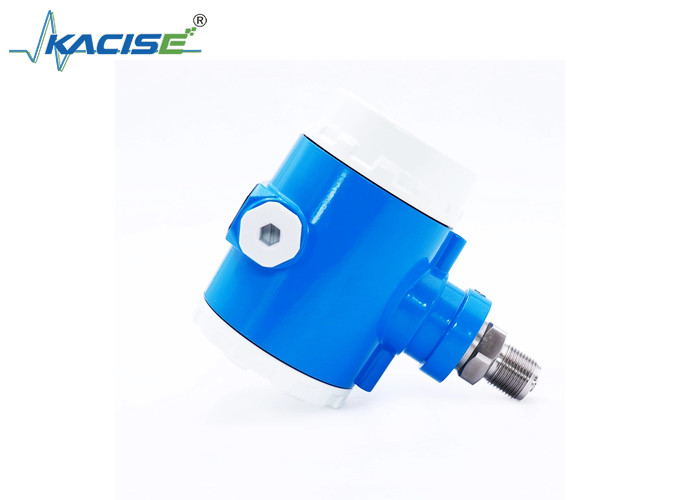

Name: 4-20mA Explosion Proof Pressure Transmitter With Hart
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAW109
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

4-20mA Explosion Proof Pressure Transmitter With Hart

Hart Pressure Transmitter

4-20mA Pressure Transmitter

Explosion Proof Pressure Transmitter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAW109

Request A Quote

4-20mA Explosion Proof Pressure Transmitter With Hart

Product Details

Pressure Range:

0 - 70MPa

Compensation Temp.:

-30 - 70℃

Media Temp.:

-40 - 120℃

Accuracy:

0.075%FS

Output:

4 - 20mA, Hart

Long - Term Stability:

±0.15%URL, 5 Years

Highlight:

Hart Pressure Transmitter

4-20mA Pressure Transmitter

Explosion Proof Pressure Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Auto Parts Automotive Air Conditioning Pressure Sensor

Get Best Price

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

Get Best Price

Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas

Get Best Price

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial

Get Best Price

86--17719566736

Contact Now

Product Description

4-20mA Explosion Proof Pressure Transmitter With Hart

Product Features

1. High reference accuracy up to 0.075%.

2. Long-term drift ≤±0.25%URL for 1 year.

3. Hart, PROFIBUS-PA or FF protocol for option.

4. Intrinsically safe and flameproof explosion proof

5. Range down ratio 100:1

6. Smart type for easy calibration

Product Applications

1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.

2. Level, volume or mass measurement in liquids.

3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow)

4. High pressure up to 700bar.

Product Description

Pressure range	0 - 70MPa
Pressure type	Gauge, negative, absolute, vacuum
Range down ratio	100:01
Compensation temp.	-30 - 70℃
Media temp.	-40 - 120℃
Accuracy	0.075%FS
Output	4 - 20mA, Hart
Long - term stability	±0.15%URL, 5 years
Power supply	10.5 - 55VDC, 24VDC
Ingress protection	IP66/67
Explosion proof	Exia II CT4, CT6
Anti - shock	As per test of GB/T 1827.3/IEC61298 - 3, <0.1%URL
Housing material	Aluminum alloy
Process connector	Thread, tri - clamp, flange
