Deltabar FMD78 Differential Pressure for Process Pressure up to 160bar 2400 psi and Max. Measurement Distance 400m H2O

Differential pressure Deltabar FMD78

Field of application

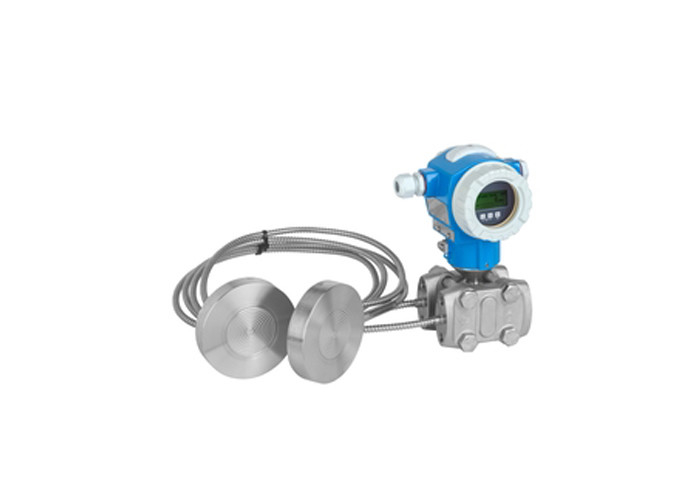

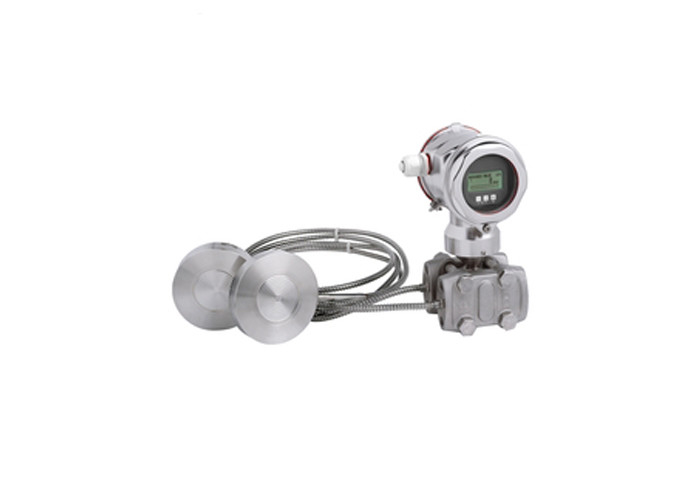

The Deltabar FMD78 differential pressure transmitter with metal sensor uses two capillary diaphragm seals. Typically used in process and hygiene applications for continuous measurement of pressure differences in liquids, vapors, gases and dusts. The integrated HistoROM data module makes the management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety applications.

For differential pressure, level, volume or mass measurement in liquids.

Process connections: Threads, flanges, pancake and hygienic connections

Process temperature: -70 up to 400°C (-94 to 752°F)

Measuring ranges: 100mbar to 40 bar (1.5 to 600psi)

Accuracy: ±0.075%

International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL

Benefits

• Large variety of different process connections and membrane materials
• New TempC Membrane for diaphragm seals: Minimum temperature effects and short recovery times
• Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
• Easy menu-guided commissioning via local display, 4 to 20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
• HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
• Cost savings with modular concept for easy replacement of sensor, display or electronics
• Seamless and independent system integration (HART/PA/FF)
