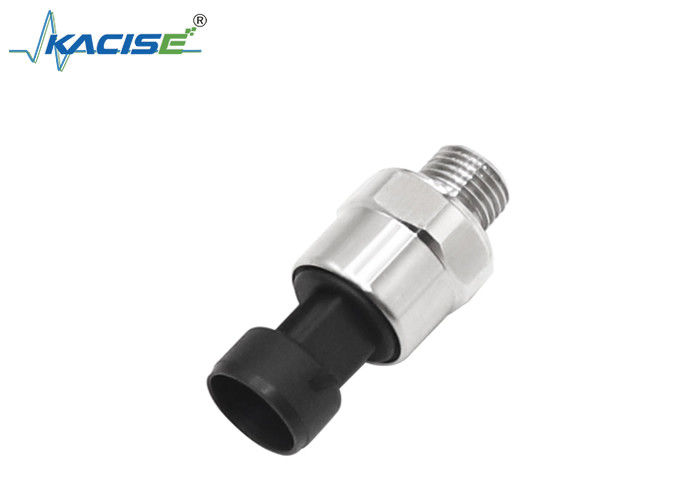

Name: KAW100 All-in-One Precise Measurement Automotive Pressure Sensor with 316L Diaphragm and Multiple Process Connections
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAW100
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

KAW100 All-in-One Precise Measurement Automotive Pressure Sensor with 316L Diaphragm and Multiple Process Connections

Precise Measurement Automotive Pressure Sensor

All in One Automotive Pressure Sensor

Automotive Pressure Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAW100

Request A Quote

Product Details

Supply Current:

15mA MAX

Pressure Range:

0~5Bar、0~10Bar、0~20Bar、0~40Bar、(Cutomized)

Power Supply:

4.75~5.25VDC(( With Reverse Polarity Protecticion Overvoltage Protection 32V DC

Output:

0.5V~4.5V DC,(10%-90%VCC)

Process Connection:

G1/4，7/16-UNFfemale,(cusomized)

Electrical Connector:

Pack

Highlight:

Precise Measurement Automotive Pressure Sensor

All in One Automotive Pressure Sensor

Automotive Pressure Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Rigid Stem Sanitary Melt Pressure Transducer with Non Toxic Material and High Precision for Food Process Equipment

Get Best Price

High precision small size refrigerant wireless pressure sensor and transmitter

Get Best Price

Stainless Steel Submersible Pressure Sensor with 9-30V Power Supply and Anti-Block Spare Parts for Liquid Level Monitoring

Get Best Price

Video

GXPS900 Aviation High-speed Rail Pressure Transmitter with ±0.1%F.S Accuracy, 1Cr18Ni9Ti Stainless Steel, and 4~20mA Output Signal

Get Best Price

Contact Now

Product Description

KAW100 All-in-One Precise Measurement Automotive Pressure Sensor

Introduction

The KAW100 All-in-One Precise Measurement Automotive Pressure Sensor is specifically designed for a wide range of automotive applications, including vehicles, transmissions, air-conditioning systems, and oil pressure measurements.

Product Applications

This sensor features a fully welded 316L diaphragm and is filled with diffusible silicon oil. It doesn't require any O-ring seals that could contact the pressure medium, making it compatible with all types of liquids. The absence of moving parts ensures a longer service life.

It offers multiple process connection options, facilitating easy installation. With a typical accuracy of 1%, it provides excellent precision for critical applications. Factory-calibrated, there's no need for on-site calibration. It has plug-and-play reliability, and its rugged and compact design saves installation space. Additionally, OEM/ODM services are available to meet special requirements.

Product Description

Model	KAW100
Power Supply	4.75~5.25VDC (With reverse polarity protection overvoltage protection 32V DC)
Supply current	15mA MAX
Pressure range	0~5Bar, 0~10Bar, 0~20Bar, 0~40Bar (Customized)
Output	0.5V~4.5V DC (10%-90%VCC)
Process Connection	G1/4, 7/16-UNFfemale (customized)
Electrical connector	Pack
Working Temperature	-40℃~130℃
Storage Temperature	-50℃~135℃
Safe Pressure	1.5~2 time of the pressure range
Burst Pressure	100Bar G
Accuracy	+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band	Static error band @25℃,5VDC,+3%(-30℃~125℃)
Medium	Engine oil, POE oil, refrigerant, gas, water or liquid
Material	Housing 304 SST; wetted parts 316L
Mounting Torque	10~20N·m
Anti-freeze function	The sensor has no anti-freezing function when the sensor's working medium is water.
