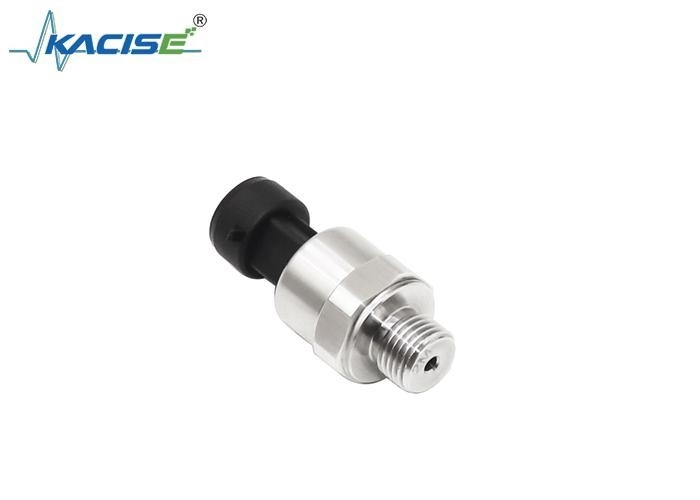

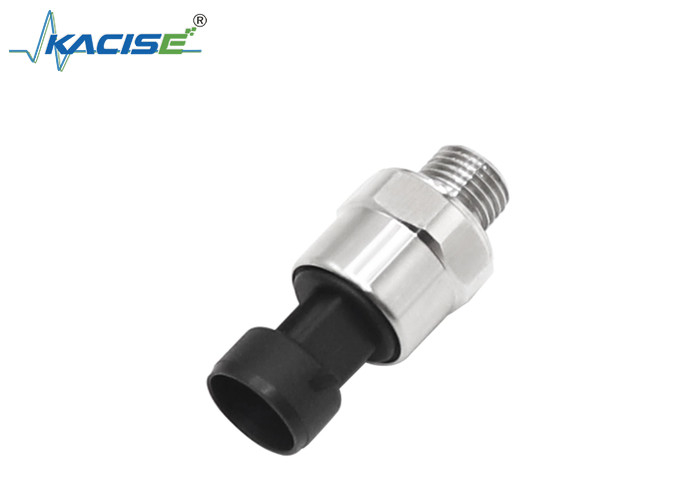

KAW100 All - in - One Precise Measurement Automotive Pressure Sensor

KAW100 All - in - One Precise Measurement Automotive Pressure Sensor

Precise Measurement Automotive Pressure Sensor

All in One Automotive Pressure Sensor

Automotive Pressure Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KAW100

Contact Us
Request A Quote
Product Details
Supply Current:
15mA MAX
Pressure Range:
0~5Bar、0~10Bar、0~20Bar、0~40Bar、(Cutomized)
Power Supply:
4.75~5.25VDC(( With Reverse Polarity Protecticion Overvoltage Protection 32V DC
Output:
0.5V~4.5V DC,(10%-90%VCC)
Process Connection:
G1/4,7/16-UNFfemale,(cusomized)
Electrical Connector:
Pack
Highlight:

Precise Measurement Automotive Pressure Sensor

,

All in One Automotive Pressure Sensor

,

Automotive Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

KAW100 All - in - One Precise Measurement Automotive Pressure Sensor



Introduction

The KAW100 All - in - One Precise Measurement Automotive Pressure Sensor is specifically designed for a wide range of automotive applications, including vehicles, transmissions, air - conditioning systems, and oil pressure measurements.



Product Applications

This sensor features a fully welded 316L diaphragm and is filled with diffusible silicon oil. It doesn't require any O - ring seals that could contact the pressure medium, making it compatible with all types of liquids. The absence of moving parts ensures a longer service life.

It offers multiple process connection options, facilitating easy installation. With a typical accuracy of 1%, it provides excellent precision for critical applications. Factory - calibrated, there's no need for on - site calibration. It has plug - and - play reliability, and its rugged and compact design saves installation space. Additionally, OEM/ODM services are available to meet special requirements.



Product Description

Model KAW100
Power Supply 4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC
Supply current 15mA MAX
Pressure range 0~5Bar,0~10Bar,0~20Bar,0~40Bar,(Cutomized)
Output 0.5V~4.5V DC,(10%-90%VCC)
Process Connection G1/4,7/16-UNFfemale,(cusomized)
Electrical connector Pack
Working Temperature -40℃C~130℃℃
Storage Temperature -50℃~135C
Safe Pressure 1.5~2 time of the pressure range
Burst Pressyre 100Bar G
Accuracy +1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band Static error band @25℃,5VDC,+3%(-30℃~125°℃)
Meadium Engine oil, POE oil, refrigerant, gas, water or liquid
Material Housing 304 SST; wetted parts 316L
Mounting Torque 10~20N·m
Anti-freeze function The sensor has no anti-freezing function when the sensor's working medium is water.
