Name: KAW100 Long - lasting and Stable Sensing Automotive Pressure Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAW100
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

KAW100 Long - lasting and Stable Sensing Automotive Pressure Sensor

KAW100 Automotive Pressure Sensor

Long Lasting Automotive Pressure Sensor

Stable Sensing Automotive Pressure Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAW100

Request A Quote

Product Details

Pressure Range:

0~5Bar、0~10Bar、0~20Bar、0~40Bar、(Cutomized)

Supply Current:

15mA MAX

Power Supply:

4.75~5.25VDC(( With Reverse Polarity Protecticion Overvoltage Protection 32V DC

Output:

0.5V~4.5V DC,(10%-90%VCC)

Process Connection:

G1/4，7/16-UNFfemale,(cusomized)

Electrical Connector:

Pack

Highlight:

KAW100 Automotive Pressure Sensor

Long Lasting Automotive Pressure Sensor

Stable Sensing Automotive Pressure Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Auto Parts Automotive Air Conditioning Pressure Sensor

Get Best Price

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

Get Best Price

Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas

Get Best Price

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial

Get Best Price

86--17719566736

Contact Now

Product Description

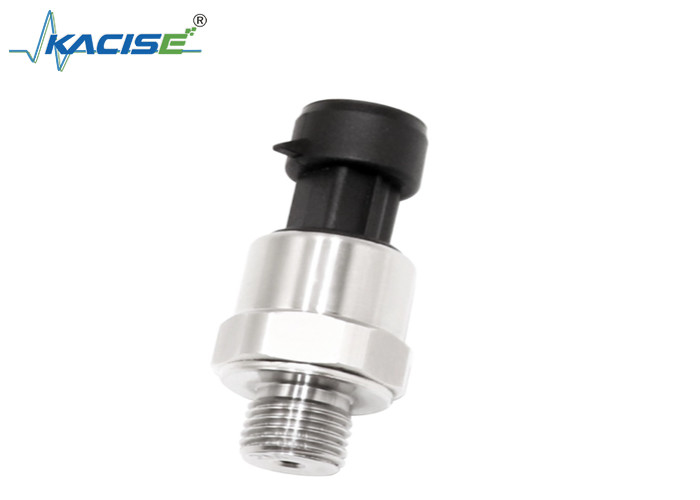

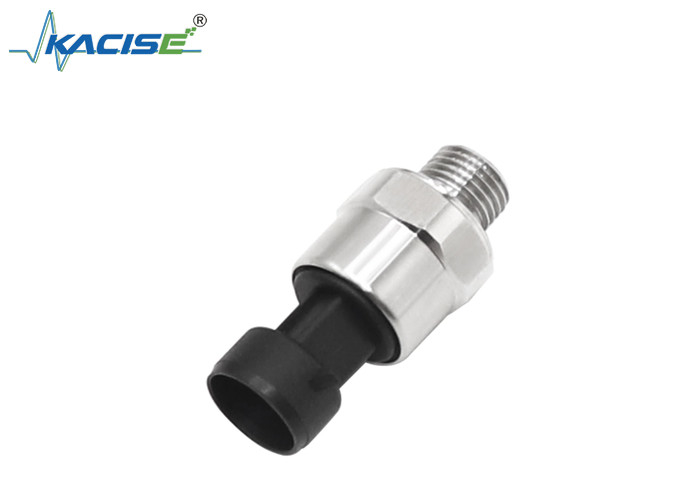

KAW100 Long - lasting and Stable Sensing Automotive Pressure Sensor

Introduction

The KAW100 Long - lasting and Stable Sensing Automotive Pressure Sensor is engineered for automotive, transmission, air - conditioning, and oil pressure measurement scenarios.

Product Applications

Thanks to its fully welded 316L diaphragm and the absence of O - ring seals that might interact with the pressure medium, it can be used with all types of liquids. The lack of moving parts contributes to an extended service life.

It comes with multiple process connection options for easy installation. The 1% typical accuracy ensures high - precision performance in critical applications. It is factory - calibrated, eliminating the need for field calibration. It offers plug - and - play reliability, and its robust and compact structure saves installation space. Customized OEM/ODM services are also provided to fulfill special customer needs.

Product Description

Model	KAW100
Power Supply	4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC
Supply current	15mA MAX
Pressure range	0~5Bar,0~10Bar,0~20Bar,0~40Bar,(Cutomized)
Output	0.5V~4.5V DC,(10%-90%VCC)
Process Connection	G1/4,7/16-UNFfemale,(cusomized)
Electrical connector	Pack
Working Temperature	-40℃C~130℃℃
Storage Temperature	-50℃~135C
Safe Pressure	1.5~2 time of the pressure range
Burst Pressyre	100Bar G
Accuracy	+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band	Static error band @25℃,5VDC,+3%(-30℃~125°℃)
Meadium	Engine oil, POE oil, refrigerant, gas, water or liquid
Material	Housing 304 SST; wetted parts 316L
Mounting Torque	10~20N·m
Anti-freeze function	The sensor has no anti-freezing function when the sensor's working medium is water.
