Name: KAW103 Smart Differential Pressure Transmitter for Industrial Process Control
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAW103
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

KAW103 Smart Differential Pressure Transmitter for Industrial Process Control

Industrial Process Control Differential Pressure Transmitter

KAW103 Smart Differential Pressure Transmitter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAW103

Request A Quote

Product Details

Output Signal:

4-20mA + HART, Square Root Output

Process Connection:

Flanged 2" ANSI B16.5 CL300 RF.,

Ingress Protection:

IP65/IP66

Supply:

DC 24V.,

Process Temperature:

200°C

Medium Density:

965kg/m3

Highlight:

Industrial Process Control Differential Pressure Transmitter

KAW103 Smart Differential Pressure Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Auto Parts Automotive Air Conditioning Pressure Sensor

Get Best Price

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

Get Best Price

Low Cost 0.5-4.5V Brass Water Pressure Sensor For Industrial Air Gas

Get Best Price

4-20mA HART Output Smart Double Flange Differential Level Pressure Transmitter for Industrial

Get Best Price

86--17719566736

Contact Now

Product Description

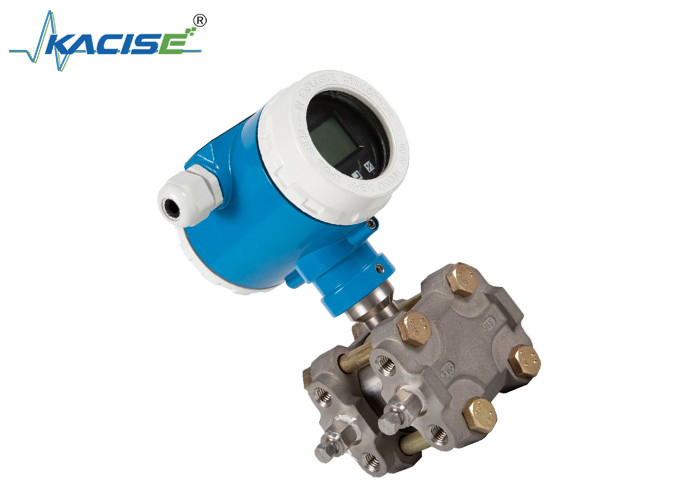

KAW103 Smart Differential Pressure Transmitter for Industrial Process Control

Product Description

Differential pressure level transmitter with remote seals .,

Model KAW103

Accuracy class : 0.075.,

Output signal: 4-20mA + HART, Square Root output

Process connection: flanged 2 ANSI B16.5 CL300 RF.,

Capillary length (min.): default 3 meters each side ( high pressure & low pressure side)

Supply: DC 24V.,

Ingress protection: IP65/IP66

ExiaIICT6., Local indication LCD.

The presence of pouring rings (material stainless steel),

Diap. meas.: 0-20.81kPa (The range of the measuring cell is not more than 0-50 kPa)

Medium density: 965kg/m3

Process temperature: 200°C

Ambient temperature: -20...60°C

Product Introduction

The KAW103 Smart Differential Pressure Transmitter is an ideal solution for industrial process control. It is designed to accurately measure differential pressure, which is essential for various industrial processes such as pressure measurement of gases, vapors, and liquids, liquid level, volume, or mass measurement, and flow measurement of gases, vapors, and liquids (both volume and mass flow) when working with detecting elements.

This smart transmitter features advanced technology with an accuracy class of 0.075. Its output signal of 4-20mA + HART and square root output enables efficient data transmission and integration with industrial automation systems. The double flange design with flanged 2 ANSI B16.5 CL300 RF process connection and default 3-meter capillary lengths on both sides ensures stable and reliable operation. Powered by DC 24V, it has excellent protection performance with an IP65/IP66 ingress protection rating and an ExiaIICT6 explosion protection rating. The local LCD display provides convenient local monitoring.

Features

Smart and Precise: The accuracy class of 0.075 and smart design ensure precise and reliable differential pressure measurement.
Advanced Communication: The 4-20mA + HART output signal and square root output support seamless integration with industrial control and monitoring systems.
Durable Structure: The double flange construction with remote seals and stainless steel pouring rings makes it suitable for harsh industrial environments.
Easy Installation: The flanged process connection and adjustable capillary lengths facilitate easy installation in different industrial setups.
High Protection: IP65/IP66 ingress protection and ExiaIICT6 explosion protection ensure safe and stable operation.
Local Display: The local LCD display allows operators to quickly check measurement values on-site.
Wide Temperature Adaptability: Can operate in an ambient temperature range of -20°C to 60°C and a process temperature of up to 200°C.
High Pressure Capability: Capable of measuring pressures up to 700bar, meeting the requirements of high-pressure industrial processes.
