Precision Liquid Level Sensor For Accurate Measurement In Submersible Applications

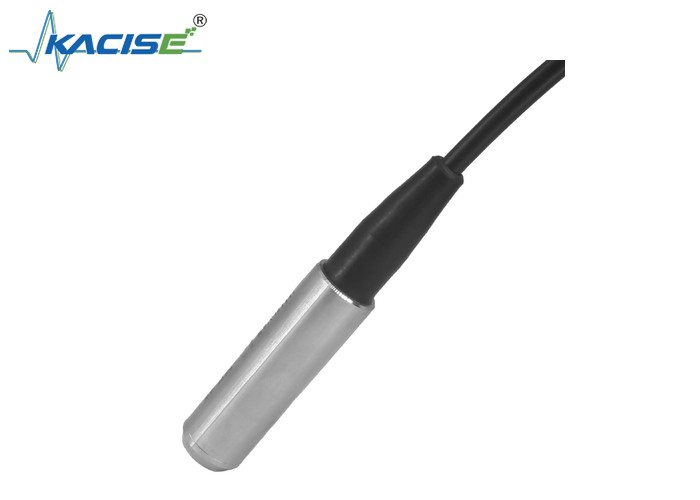

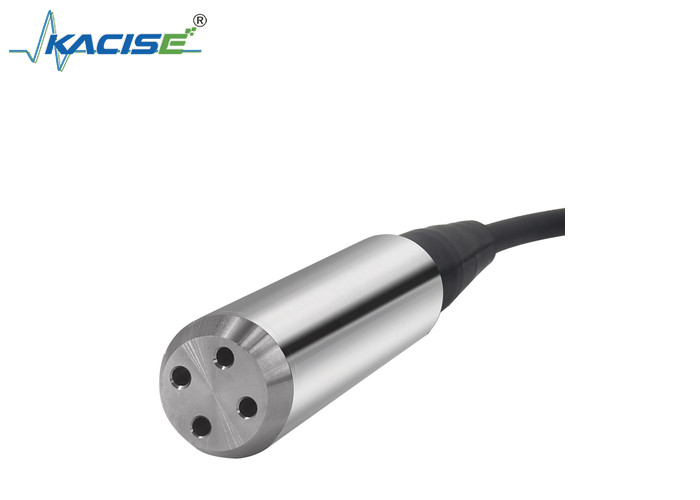

 KAW105 High-precision Submersible Liquid Level Sensor for Liquid Level Measurement

Product Introduction

The KAW105 High-precision Submersible Liquid Level Sensor is designed for accurate liquid level measurement across a wide range of applications. It utilizes a high-performance diffused silicon piezoresistive pressure sensor as the measuring element, combined with a reliable amplified circuit and precise temperature compensation. This enables it to convert the gauge or absolute pressure of the measured medium into a standard voltage or current signal.

In water tank applications, it precisely monitors water level changes, ensuring the stable operation of water supply systems. For fuel tanks, it can accurately measure the levels of diesel, gasoline, kerosene, and other fuels in real-time. It is also suitable for measuring the liquid levels in storage tanks, rivers, lakes, seas, wells, pipelines, and groundwater. Additionally, for special occasions such as measuring the levels of high-temperature liquids (up to 100°C) or highly corrosive liquids, customized solutions are available. With its compact profile and easy installation, simply submerging it into the liquid allows for direct measurement of the liquid level height.

Features

• High-precision Sensing: Adopts a high-performance diffused silicon piezoresistive pressure sensor, offering accuracy options of ±0.25% FS/year or ±0.5% FS/year for reliable and precise measurements.
• Wide Measurement Range: The maximum measurement range can reach up to 200 meters or more, suitable for various liquid level measurement scenarios.
• Multiple Outputs: Provides a variety of analog outputs such as 4-20mA, 1-5V, 0.5-4.5V, 0-5V, 0-10V, and digital outputs like I2C, Hart, RS485, etc., facilitating easy integration with different systems.
• Stable Performance: Equipped with a reliable amplified circuit and precise temperature compensation, ensuring high stability in different environments.
• Corrosion-resistant Housing: Made of stainless steel with an IP68 protection rating, it can withstand harsh environments and is suitable for use in both general and special liquid media.
• Flexible Power Supply: Supports power supplies of 24V, 12V, 5V, and 3.3V, providing flexibility in different installation scenarios.
• Easy Installation: Its compact design allows for easy installation, and it can be directly submerged into the liquid for measurement.

Product Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Product Description
