Name: Water Medium KUF100B Economical Ultrasonic Transit Time Flow Meter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUF100B
Price: 892.00 USD
Availability: InStock

Home > products > Ultrasonic Flow Meter >

Water Medium KUF100B Economical Ultrasonic Transit Time Flow Meter

Ultrasonic Transit Time Flow Meter

KUF100B Ultrasonic Flow Meter

Place of Origin:

china

Brand Name:

kacise

Certification:

Model Number:

KUF100B

Request A Quote

Product Details

Flow Range:

±0.03m/s ~ ±5m/s

Accuracy:

±1%

Repeatability Accuracy:

0.2%

Linearity:

±1%

Pipe Diameter:

15mm ~ 1200mm

Medium:

Water

Highlight:

Ultrasonic Transit Time Flow Meter

KUF100B Ultrasonic Flow Meter

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

,L/C,T/T,D/P,D/A,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

DN32 - DN6000 Clamp On Water Flow Meter Sensor Wall Mounted Ultrasonic Flowmeter

Get Best Price

KDF2200 Handheld Doppler Flowmeter PVC Material Power Consumption 2W for Accurate Flow Measurement

Get Best Price

Power-Saving Portable Handheld Doppler Flowmeter For Accurate PVC Pipe Measurements

Get Best Price

12V Rechargeable Lithium Battery Powered Portable Handheld Flowmeter with IP67 Rating and RS485 Output

Get Best Price

86--17719566736

Contact Now

Product Description

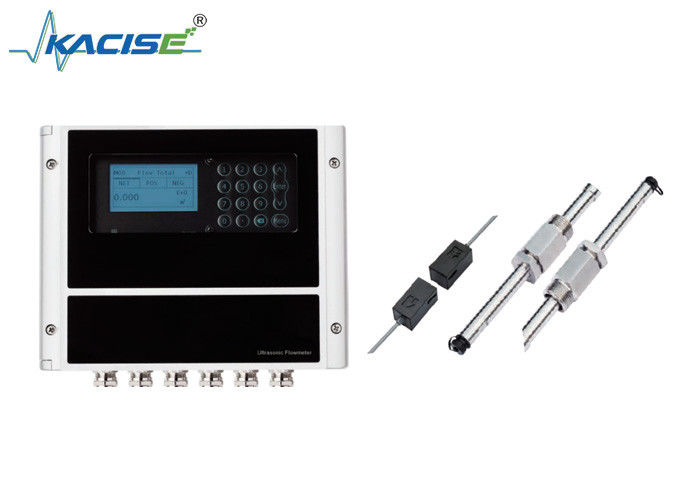

Water Medium KUF100B Economical Ultrasonic Transit Time Flow Meter

Key Specifications

Flow Range	±0.03m/s ~ ±5m/s
Accuracy	±1%
Repeatability Accuracy	0.2%
Linearity	±1%
Pipe Diameter	15mm ~ 1200mm
Medium	Water

Product Overview

The KUF100B Economical Transit-Time Ultrasonic Flow Meter is specifically designed for water applications. Featuring our proprietary TGA technology, this flow meter delivers exceptional performance with high response rate, low power consumption, and outstanding stability.

Advanced TGA Technology

Our self-developed TGA (Time Measurement Algorithm) achieves precision measurement with accuracy down to picoseconds, combining high-speed performance with exceptional measurement reliability.

Key Features

Compatible with RTD models and temperature sensors for energy measurement in heating and cooling systems
Available with insertion-type or external clamp-type sensors - one pair fits all pipe diameters
Standard insertion sensor withstands temperatures up to 130℃
Non-invasive installation - no pipe cutting or water supply interruption required

Technical Specifications

Performance
Flow Range	±0.03m/s ~ ±5m/s
Accuracy	±1%
Repeatability Accuracy	0.2%
Linearity	±1%
Pipe Diameter	15mm ~ 1200mm
Medium	Water

Functions
Output	Analog: 4-20mA (max load 750Ω) Pulse: 0-10KHz
Communication	RS232/RS485 Modbus
Power Supply	10-36VDC/1A
Display	240*128 LCD
Temperature	Transmitter: -20℃ to 60℃
Humidity	Sensor: -40℃ to 75℃ (standard)

Physical Characteristics
Transmitter	PC/ABS, IP65/IP68
Sensor	Sealed design with double-twisted shielded outlet Standard cable length: 9m (maximum 274m)

Industrial Applications

Building air conditioning systems
Thermal power plants
Petrochemical industry
Water treatment facilities
