Water Medium KUF100B Economical Ultrasonic Transit Time Flow Meter

Water Medium KUF100B Economical Ultrasonic Transit Time Flow Meter

Ultrasonic Transit Time Flow Meter

KUF100B Ultrasonic Flow Meter

Place of Origin:

china

Brand Name:

kacise

Certification:

ce

Model Number:

KUF100B

Contact Us
Request A Quote
Water Medium KUF100B Economical Ultrasonic Transit Time Flow Meter
Product Details
Flow Range:
±0.03m/s ~ ±5m/s
Accuracy:
±1%
Repeatability Accuracy:
0.2%
Linearity:
±1%
Pipe Diameter:
15mm ~ 1200mm
Medium:
Water
Highlight:

Ultrasonic Transit Time Flow Meter

,

KUF100B Ultrasonic Flow Meter

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
,L/C,T/T,D/P,D/A,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Water Medium KUF100B Economical Ultrasonic Transit Time Flow Meter online

Water Medium KUF100B Economical Ultrasonic Transit Time Flow Meter

Get Best Price
Good price DN32 - DN6000 Clamp On Water Flow Meter Sensor Wall Mounted Ultrasonic Flowmeter online Video

DN32 - DN6000 Clamp On Water Flow Meter Sensor Wall Mounted Ultrasonic Flowmeter

Get Best Price
Good price KDF2200 Handheld Doppler Flowmeter PVC Material Power Consumption 2W for Accurate Flow Measurement online

KDF2200 Handheld Doppler Flowmeter PVC Material Power Consumption 2W for Accurate Flow Measurement

Get Best Price
Good price Power-Saving Portable Handheld Doppler Flowmeter For Accurate PVC Pipe Measurements online

Power-Saving Portable Handheld Doppler Flowmeter For Accurate PVC Pipe Measurements

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description
Water Medium KUF100B Economical Ultrasonic Transit Time Flow Meter
Key Specifications
Attribute Value
Flow Range ±0.03m/s ~ ±5m/s
Accuracy ±1%
Repeatability Accuracy 0.2%
Linearity ±1%
Pipe Diameter 15mm ~ 1200mm
Medium Water
Product Overview

The KUF100B Economical Transit-Time Ultrasonic Flow Meter is specifically designed for water applications. It features high response rate, low power consumption, and exceptional stability while incorporating our proprietary TGA technology.

TGA (Time-Gated Algorithm) is our advanced process time measurement technology that achieves precision down to picoseconds. The meter offers simple installation without requiring pipe cutting or water supply interruption.

Key Features
  • Compatible with RTD models and temperature sensors for energy measurement in heating and cooling systems
  • Available in both insertion-type and external clamp-type sensor configurations
  • Single sensor pair accommodates all pipe diameters
  • Standard insertion-type sensor withstands temperatures up to 130℃
Applications
  • Building air conditioning systems
  • Thermal power plants
  • Petrochemical industry
  • Water treatment facilities

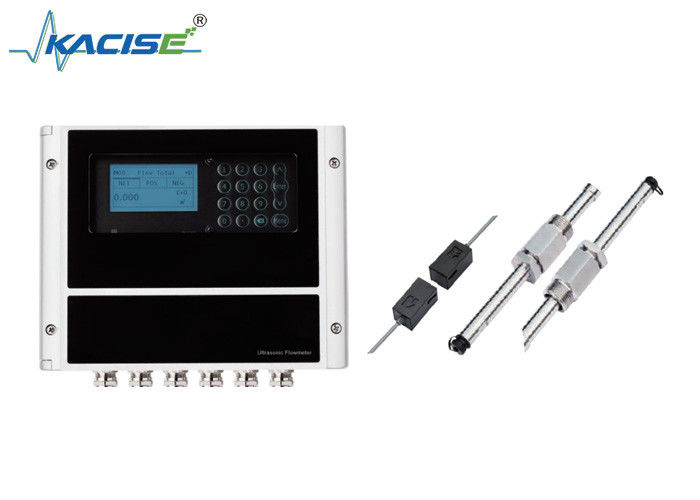

Water Medium KUF100B Economical Ultrasonic Transit Time Flow Meter 0
Technical Specifications
Performance
Flow Range ±0.03m/s ~ ±5m/s
Accuracy ±1%
Repeatability Accuracy 0.2%
Linearity ±1%
Pipe Diameter 15mm ~ 1200mm
Medium Water
Functions
Output Analog output: 4-20mA, maximum load 750Ω
Pulse output: 0-10KHz
Communication RS232/RS485 Modbus
Power Supply 10-36VDC/1A
Display 240*128 LCD
Temperature Transmitter: -20℃ - 60℃
Humidity Sensor: -40℃ - 75℃, standard
Physical Characteristics
Transmitter PC/ABS, IP65 IP68
Sensor Sealed design
Double-twisted shielded outlet
Standard/maximum cable length: 9m/274m
