Name: KWS-950S Online TSS Sensor with Scattered Light Method for 0 to 2000 mg/L Measurement and Automatic Temperature Compensation
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-950S
Price: 5,000.00 USD
Availability: InStock

Home > Products > Water Quality Sensor >

KWS-950S Online TSS Sensor with Scattered Light Method for 0 to 2000 mg/L Measurement and Automatic Temperature Compensation

Scattered Light Method TSS Sensor

2000 mg/L Online TSS Sensor

KWS-950S Online TSS Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KWS-950S

Request A Quote

Product Details

Measuring Principle:

Scattered Light Method

Measuring Range:

0 To 2000 Mg / L

Resolution:

0.1 Mg/L, 0.1 °C

Precision:

± 5%

Calibration Method:

Two-point Calibration

Temperature Compensation:

Automatic Temperature Compensation (Pt1000 )

Highlight:

Scattered Light Method TSS Sensor

2000 mg/L Online TSS Sensor

KWS-950S Online TSS Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KWS-850 Multi-parameter Water Quality Sensor with RS-485(Modbus/RTU) Output, Automatic Cleaning, and ±0.1pH Accuracy for Wastewater Treatment

Get Best Price

Portable Conductivity Meter SC92 with IP67 Waterproof, Wide Measuring Range, and Large Backlit Display

Get Best Price

KSM-150B Wall Mounted Residual Chlorine Meter with Non-Membrane Sensor and 4-20mA Output

Get Best Price

Video

KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy

Get Best Price

Contact Now

Product Description

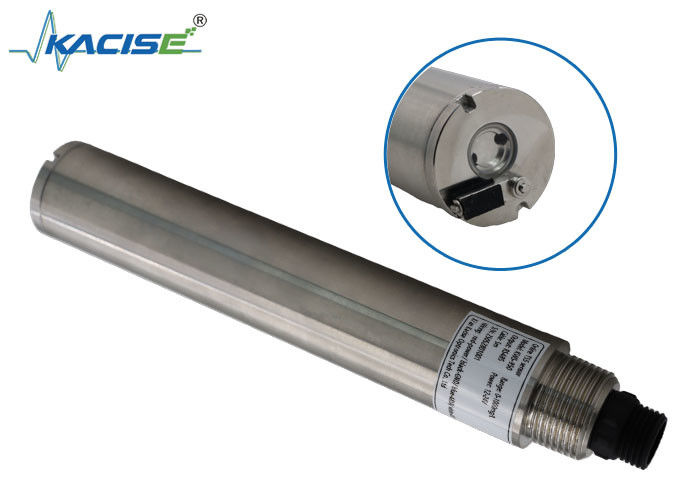

KWS-950S Online TSS Sensor

Product Overview

The KWS-950 integrated online TSS sensor utilizes scattered light suspension measurement technology. When light passes through a water sample, suspended particles scatter the light. By measuring the intensity of scattered light perpendicular to the incident beam and comparing it with internal calibration values, the sensor calculates and linearizes the output to provide accurate TSS measurements.

Key Features

Operating range: 0 to 50°C with IP68 protection for water depths up to 20 meters
Scattered light measurement principle with integrated temperature sensor
RS-485 communication supporting Modbus/RTU protocol
Fiber-optic design for superior resistance to external light interference
Infrared LED light source ensuring high measurement stability
Convenient installation, stable performance, and easy maintenance

Technical Specifications

Model	KWS-950S
Measuring Principle	Scattered light method
Measuring Range	0 to 2000 mg/L
Resolution	0.1 mg/L, 0.1°C
Precision	±5%
Calibration Method	Two-point calibration
Temperature Compensation	Automatic temperature compensation (Pt1000)
Output Method	RS-485 (Modbus/RTU)
Working Conditions	0 to 50°C, <0.2MPa
Storage Temperature	-5 to 65°C

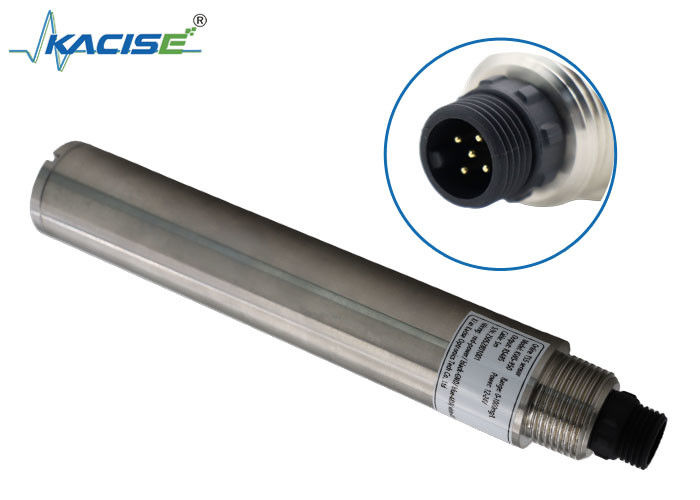

Installation Method	Immersion mounting, 3/4" NPT thread

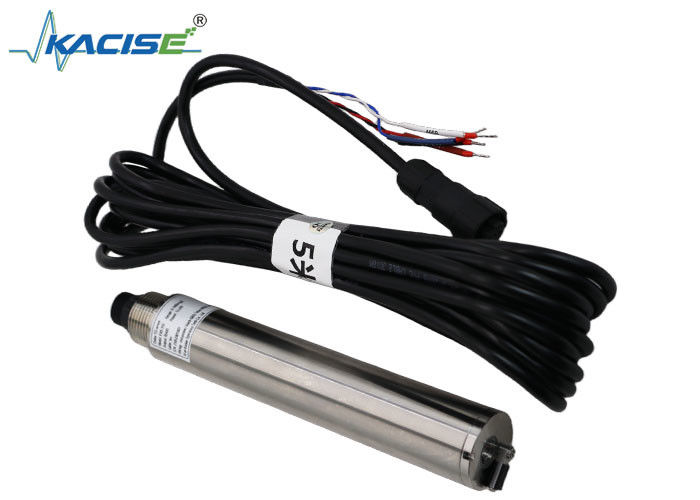

Cable Length	5 meters (custom lengths available)
Power Consumption	<0.5W
Power Supply	12 to 24 VDC ±10%
Protection Level	IP68
Casing Material	Stainless steel
Self-Cleaning Function	Selectable option
