Scattered Light Method KWS-950S Online TSS Sensor For 0 To 2000 Mg/L Range

Scattered Light Method KWS-950S Online TSS Sensor For 0 To 2000 Mg/L Range

Scattered Light Method TSS Sensor

2000 mg/L Online TSS Sensor

KWS-950S Online TSS Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Model Number:

KWS-950S

Contact Us
Request A Quote
Scattered Light Method KWS-950S Online TSS Sensor For 0 To 2000 Mg/L Range Scattered Light Method KWS-950S Online TSS Sensor For 0 To 2000 Mg/L Range Scattered Light Method KWS-950S Online TSS Sensor For 0 To 2000 Mg/L Range
Product Details
Measuring Principle:
Scattered Light Method
Measuring Range:
0 To 2000 Mg / L
Resolution:
0.1 Mg/L, 0.1 °C
Precision:
± 5%
Calibration Method:
Two-point Calibration
Temperature Compensation:
Automatic Temperature Compensation (Pt1000 )
Highlight:

Scattered Light Method TSS Sensor

,

2000 mg/L Online TSS Sensor

,

KWS-950S Online TSS Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Portable dissolved oxygen water quality sensor with battery for convenient carrying online

Portable dissolved oxygen water quality sensor with battery for convenient carrying

Get Best Price
Good price Scattered Light Method KWS-950S Online TSS Sensor For 0 To 2000 Mg/L Range online

Scattered Light Method KWS-950S Online TSS Sensor For 0 To 2000 Mg/L Range

Get Best Price
Good price KWS-850 On-line Multi Parameter Sensor For Dissolved Oxygen And COD Measurement online Video

KWS-850 On-line Multi Parameter Sensor For Dissolved Oxygen And COD Measurement

Get Best Price
Good price KWS-850 On-line Multi-parameter Water Sensor High Accuracy Turbidity Measurement For Wastewater Treatment Plants online Video

KWS-850 On-line Multi-parameter Water Sensor High Accuracy Turbidity Measurement For Wastewater Treatment Plants

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

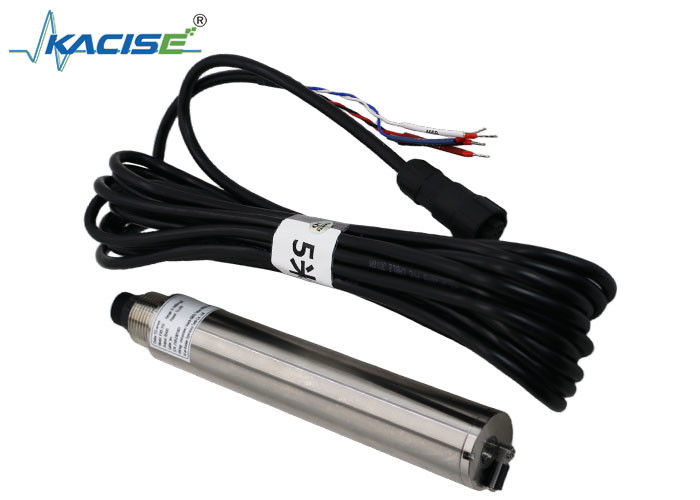

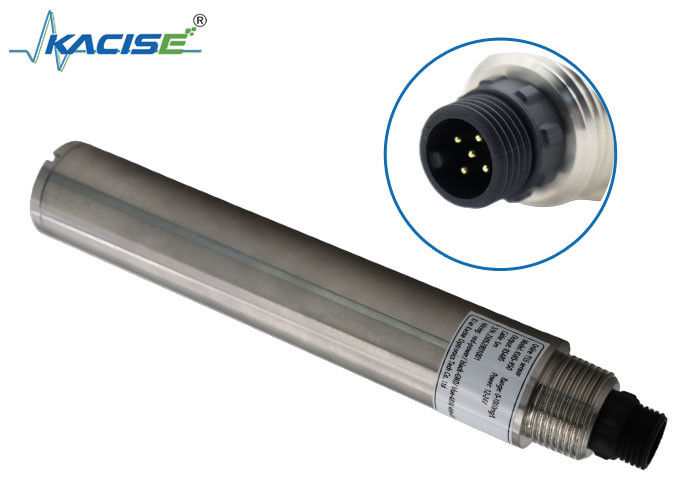

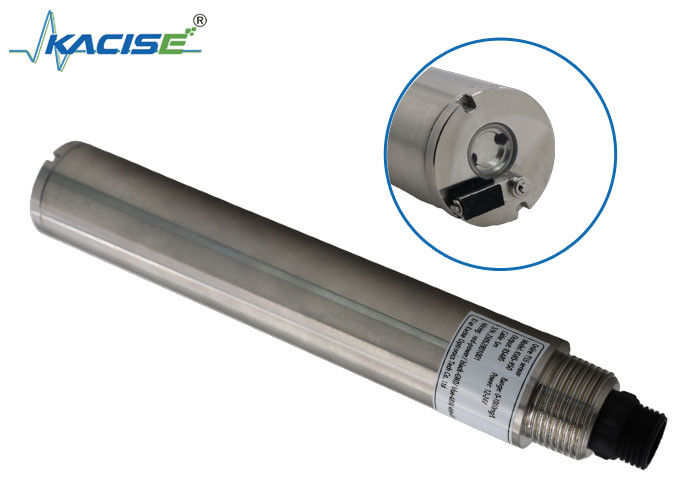

KWS-950S Online TSS Sensor

Introduction

The KWS-950 integrated online TSS sensor is designed and manufactured using the principle of scattered light suspension measurement. When a beam of light is incident on a water sample, the light is scattered by the suspended matter in the water sample, and the scattered light in the water sample is calculated by measuring the intensity of the scattered light perpendicular to the incident light and comparing it with the internal calibration value,linearized to output the final value

Feature

  • 0 to 50 °C; IP68 Protection, water depth within 20 meters
  • Principle of scattered light, built-in temperature sensor
  • Support RS-485, Modbus/ RTU protocol
  • Fiber-optic structure, strong resistance to external light interference
  • Infrared LED light source, high stability
  • Convenient, fast, stable and easy to maintain

Technical Specifications

Model KWS-950S
Measuring principle Scattered light method
Measuring range 0 to 2000 mg / L
Resolution 0.1 mg/L, 0.1 °C
Precision ± 5%
Calibration method Two-point calibration
Temperature compensation Automatic temperature compensation (Pt1000 )
output method RS-485 (Modbus/ RTU )
Working conditions 0 to 50 °C, < 0 .2MPa
storage temperature - 5 to 65 °C
Installation method Immersion mounting, 3/4" NPT thread
Cable length 5 meters, other lengths can be customized
Power consumption < 0.5 W
power supply 1 2 to 24 VDC ± 10%
Protection level IP68
Casing Material Stainless steel
Self-Cleaning Function Selectable
