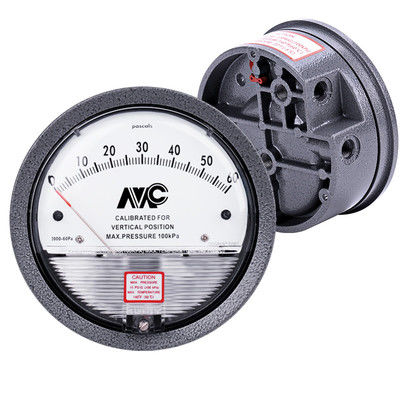

KACISE Series 2000 Precision Stainless Steel Differential Pressure Gauge (0-60Pa)

KACISE Series 2000 Precision Stainless Steel Differential Pressure Gauge (0-60Pa)

Product Introduction

The KACISE Series 2000 is a high-precision differential pressure gauge engineered for critical applications requiring accurate measurement of low-pressure differentials. Designed with a robust stainless steel housing and a 120mm diameter dial, this gauge delivers reliable performance in industrial, HVAC, and environmental monitoring systems. With an operating temperature range of -7°C to 60°C and ±2.5%FS accuracy, it provides precise readings for applications such as cleanroom pressure control, filter monitoring, and airflow measurement. The gauge features 1/8" NPT connections for easy installation and is fully customizable through OEM/ODM services.

Key Features

High Precision Measuremen

±2.5% full-scale accuracy ensures reliable readings in low-pressure applications from 0-60Pa.

Robust Construction

Stainless steel body and wetted parts provide exceptional corrosion resistance, ideal for harsh environments.

Clear Visibility

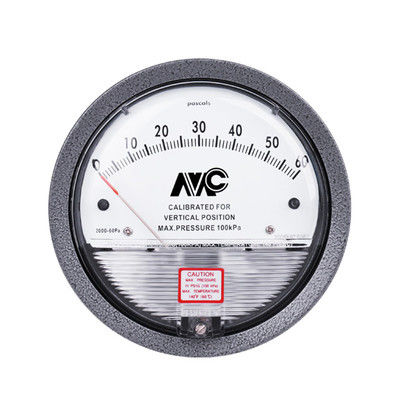

120mm diameter dial with high-strength PC cover offers distortion-free viewing from multiple angles.

Wide Temperature Range

Operates reliably from -7°C to 60°C, ensuring consistent performance in diverse environments.

Easy Installation

1/8" NPT connections and compact design allow for straightforward integration into any system.

Customization Options

Available with OEM/ODM services for tailored solutions to specific application requirements.

Safety Design

Engineered with overload protection to prevent damage from pressure spikes.

Versatile Mounting

Designed for flexible installation in vertical or horizontal orientations, with mounting brackets included.

Technical Specifications

Accuracy: ±2.5% of full scale

Pressure Range: 0-60Pa

Connection: 1/8" NPT (female)

Dial Diameter: 120mm

Housing Material: Stainless Steel

Cover Material: High-strength PC

Operating Temperature: -7°C to 60°C

Customization: OEM/ODM available

Mounting: Flush or surface mounting options

Weight: 0.8kg (approx.)
