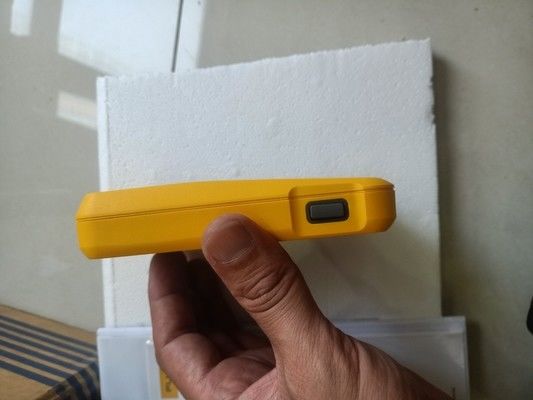

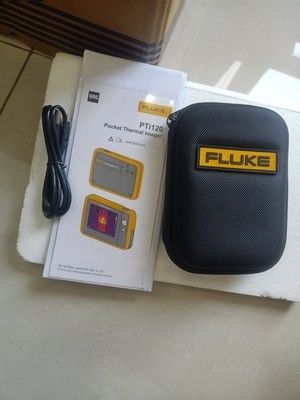

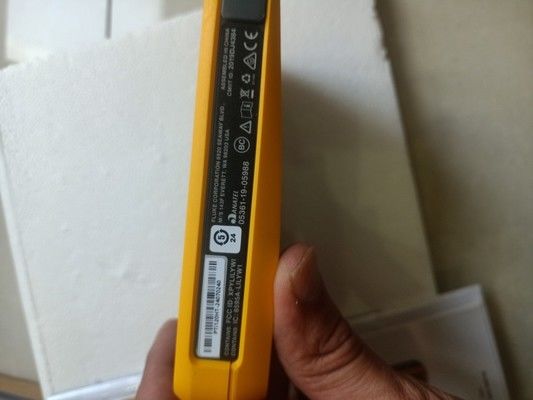

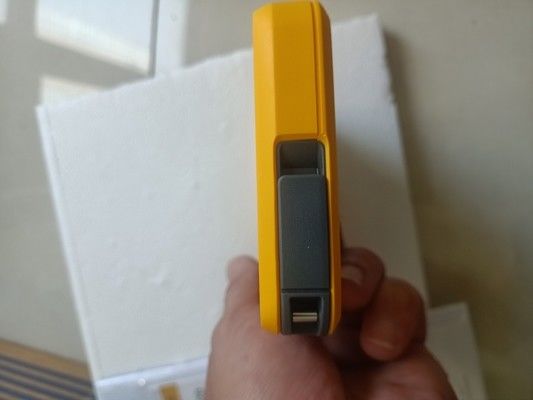

Fluke PTi120 Compact Pocket Thermal Camera
Product Introduction
The Fluke PTi120 Compact Pocket Thermal Camera is a portable solution tailored for industrial inspection. It empowers users to conduct efficient infrared inspections, serving as the first line of defense for troubleshooting. Small enough for daily carry, it withstands harsh conditions like dirt, water, and drops, ensuring it's always ready for use. Ideal for quickly scanning temperatures of electrical equipment, machinery, and other assets, it helps prevent issues before they escalate, minimizing downtime. With features like IR - Fusion™ for easier problem - locating and Fluke Connect Asset Tagging for seamless image organization, it streamlines inspection workflows, making it a must - have tool for professionals on the job.
Key Features
Portability & Durability: Ultra - compact size for easy daily carrying. Boasts an IP54 enclosure rating, can survive a 1 - meter drop, and resists dirt and water, ensuring reliability in tough work environments.
Efficient Image Management: Fluke Connect Asset Tagging simplifies image sorting. Scan asset QR/barcodes to auto - store thermal images with timestamped info in predefined folders. Supports WiFi transfer and USB upload for efficient saving, finding, and reporting.
Advanced Imaging: 3.5” LCD touchscreen with IR - Fusion™ blends visible and infrared images. Adjust blending via finger sliding for easier problem location. Offers 6 standard color palettes (Ironbow, Blue - Red, etc.) for clear visual analysis.
Thermal Performance: Infrared resolution of 120 x 90 (10,800 pixels), IFOV 7.6 mRad, 50° H x 38° V field of view, and 130:1 distance - to - spot ratio. Thermal sensitivity (NETD) of 60 mK, 9 Hz frame rate, and fixed focus (min 22.8 cm focus distance).
Temperature Measurement: Two models cover - 20 °C to + 400 °C and - 20 °C to + 150 °C (not calibrated below - 10 °C). Accuracy of ± 2 °C or ± 2% for target temp ≥ 0 °C. Features on - screen emissivity correction and reflected background temp compensation.
Battery & Power: Internal rechargeable lithium - ion battery provides ≥ 2 hours of continuous use (without WiFi). Charges in ≤ 1.5 hours via Mini USB (to PC or with optional AC adapter). Offers automatic shutdown options (5 - 20 mins or never) for power saving.
Software & Compatibility: Works with Fluke Connect desktop software for full analysis and reporting. Supports non - radiometric (JPEG) and radiometric (.is2) image formats. JPEG files need no analysis software. Compatible with multiple languages.
Safety & Compliance: Meets safety standards like EN 61010 - 1 (CAT none, pollution degree 2), EN 60825 - 1 (Class 2), etc. Complies with electromagnetic compatibility and vibration/shock standards (2G, 25G).
| Key Features |
| IFOV (spatial resolution) |
7.6 mRad |
| Infrared resolution |
120 x 90 (10,800 pixels) |
| Field of view |
50° H x 38° V |
| Distance to spot |
130:01:00 |
| Temperature measurement range (not calibrated below -10 °C) |
-20 °C to +400 °C and -20 °C to +150 °C models |
| Focus system |
Fixed focus, minimum focus distance 22.8 cm |
| USB |
Mini USB used to transfer image to PC |
| Wifi |
Yes |
| Image quality |
| IR-Fusion technology |
Yes, adds the context of the visible details to your infrared image |
| AutoBlend mode |
Continuous 0% to 100% |
| Touchscreen display |
3.5’’ (landscape), 320 x 240 LCD |
| Rugged, ergonomic design |
Yes |
| Thermal sensitivity (NETD) |
60 mK |
| Frame rate |
9 Hz |
| Data storage and image capture |
| Memory |
≥ 2GB internal flash memory |
| Image capture, review, save mechanism |
One-handed image capture, review, and save capability |
| Image file formats |
Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files |
| Software |
Fluke Connect® desktop software—full analysis and reporting software with access to the Fluke Connect system |
| Export file formats with software |
JPG, IS2 |
| Measurement range |
-20 °C to +400 °C and -20 °C to +150 °C models |
| Battery |
| Batteries (rechargable) |
Internal rechargeable lithium ion battery |
| Battery life |
≥ 2 hours continuous (without WiFi) |
| Battery charging time |
≤ 1.5 hours |
| Battery charging system |
Mini USB cord from product to PC |
| AC operation |
With separate AC to USB adapter. Not included in box. |
| Power saving |
Automatic Shutdown: |
| 5, 10, 15 and 20 minutes or never |
| Temperature measurement |
| Temperature measurement range (not calibrated below -10 °C) |
-20 °C to +400 °C and -20 °C to +150 °C models |
| Accuracy |
Target temp at or over 0 °C: Accuracy: ± 2 °C or ± 2% |
| On-screen emissivity correction |
Yes |
| On-screen reflected background temperature compensation |
Yes |
| Color palettes |
| Standard palettes |
6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale |
| General specifications |
| Infrared spectral band |
8 μm to 14 μm (long wave) |
| Operating temperature |
-10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature |
-40 °C to +70 °C (-40 °F to 158 °F) |
| Relative humidity |
95% non-condensing |
| Center-point temperature |
Yes |
| Spot temperature |
Hot and cold spot markers |
| Safety |
EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery) |
| Electromagnetic compatibility |
EN301 489-1 V2.1.1 EN301489-17 V3.1.1 |
| US FCC |
CFR, Part 15C |
| Vibration and shock |
2G, IEC 68-2-6 and 25G, IEC 68-2-29 |
| Drop |
1 meter |
| Size (H x W x L) |
8.9 cm x 12.7 cm x 2.5 cm |
| (3.5 in x 5.0 in x 1.0 in) |
| Weight (battery included) |
0.233 kg (0.514 lb) |
| Enclosure rating |
IP54 |
| Warranty |
Two-years |
| Supported languages |
Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
