49C Series Diffuse Reflection Sensor with Background Suppression

49C Series Diffuse Reflection Sensor with Background Suppression

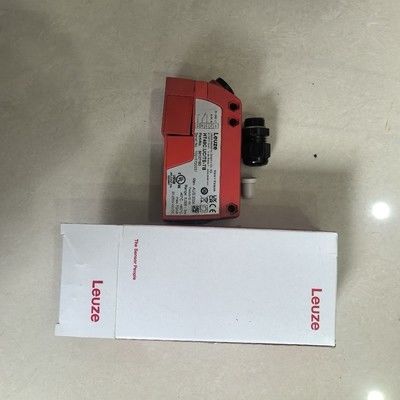

Product Introduction

The 49C Series is a high-performance diffuse reflection sensor utilizing background suppression technology to ensure precise object detection across varying surfaces. Engineered for reliability, it minimizes black-white detection errors to <10% within a 1200 mm range, making it ideal for industrial automation tasks. With a wide operating range (0.005–3 m for white surfaces, 0.02–2 m for gray, and 0.05–1.5 m for black), the sensor adapts to diverse materials. Powered by a red LED light source (630 nm wavelength), it features dual relay outputs, transient protection, and a rugged IP67-rated housing, ensuring consistent performance in harsh environments from -40°C to 60°C.

Key Features

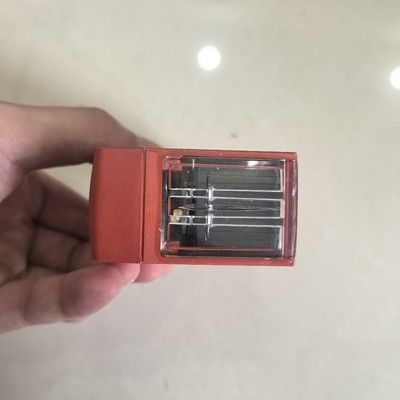

Advanced Sensing Technology:

Diffuse reflection principle with background suppression reduces false triggers.

Black-white error <10% up to 1200 mm for reliable detection on varying surfaces.

Adjustable range from 120 mm to 3000 mm via multiturn potentiometer.

Wide Operating Range:

White 90% reflectance: 0.005–3 m

Gray 18% reflectance: 0.02–2 m

Black 6% reflectance: 0.05–1.5 m

Electrical Specifications:

Universal supply voltage: 20–250 V AC/DC

Low power consumption: 1.5 V·A (AC mode)

Dual digital relay outputs (NC/NO), switchable between light/dark modes

Switching frequency: 25 Hz, response time: 20 ms

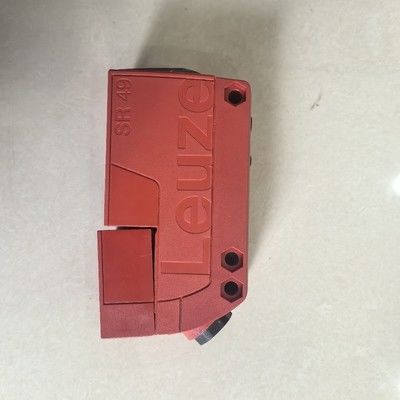

Robust Design:

IP67 protection against dust and water immersion

Operating temperature: -40°C to 60°C, storage: -40°C to 70°C

Plastic housing (PC) with red finish, lens cover: durable plastic

Through-hole mounting with optional accessories

Functional Controls:

Multiturn potentiometer for range adjustment

Teach button for quick setup

Time module activation for dropout delay functionality

Compliance & Certifications:

c UL US approved, meets IEC 60947-5-2 standards

ECLASS and ETIM classifications: 27270904 / EC002719

Exempt LED group per EN 62471, protection class II

Connectivity:

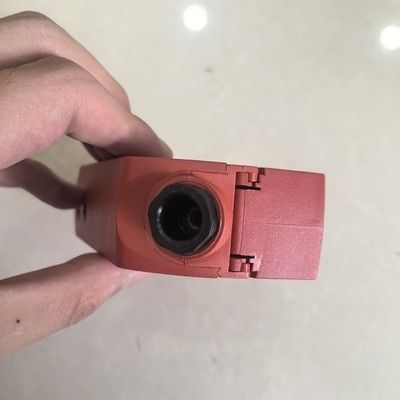

5-pin spring-cage terminal block for easy wiring

Signal OUT function for system integration

Dimensions & Weight:

31 mm (W) x 104 mm (H) x 55.5 mm (L)

Net weight: 150 g
