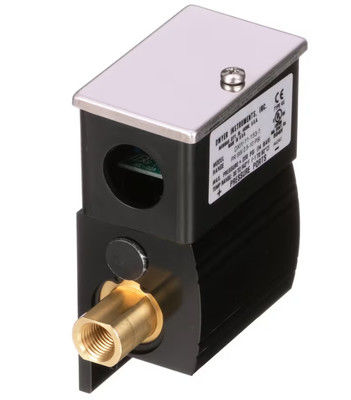

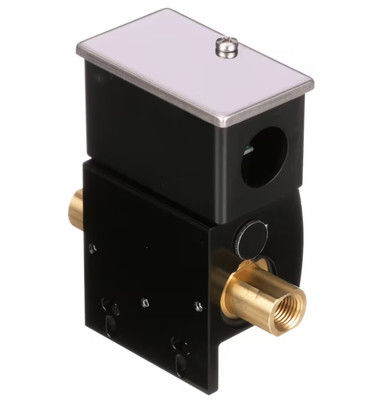

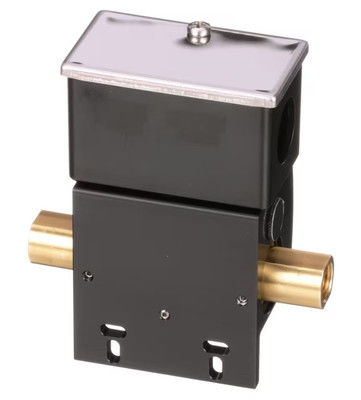

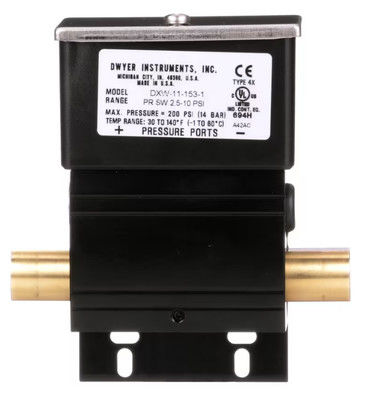

Name: Dwyer Series DX Wet / Wet Differential SPDT Pressure Switch (Models DXW-11-153-1 to DXW-11-153-4)
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DXW-11-153-1/ DXW-11-153-2/ DXW-11-153-3/ DXW-11-153-4
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer Series DX Wet / Wet Differential SPDT Pressure Switch (Models DXW-11-153-1 to DXW-11-153-4)

DXW-11-153-4 Differential SPDT Pressure Switch

DXW-11-153-1 Differential SPDT Pressure Switch

Brand Name:

Dwyer

Model Number:

DXW-11-153-1/ DXW-11-153-2/ DXW-11-153-3/ DXW-11-153-4

Request A Quote

Dwyer Series DX Wet / Wet Differential SPDT Pressure Switch (Models DXW-11-153-1 to DXW-11-153-4)

Product Details

Service:

Compatible Gases And Liquids

Wetted Materials:

Connection: Brass; Diaphragm: Fluoroelastomer

Temperature Limits:

30 To 140°F

Pressure Limits:

Maximum Static Pressure: 200 Psig

Enclosure Rating:

Weatherproof UL Type 4X (IP65)

Repeatability:

±2% Of Full Range

Highlight:

DXW-11-153-4 Differential SPDT Pressure Switch

DXW-11-153-1 Differential SPDT Pressure Switch

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell STT850 Precision Pressure Transmitter for Industrial Use

Get Best Price

YOKOGAWA Digital YEWFLO Vortex Flowmeter With FOUNDATION Fieldbus

Get Best Price

Yokogawa FLXA202 2-Wire Dual Channel Transmitter Analyzer

Get Best Price

Yokogawa EJA430E Gauge Pressure Transmitter 4-20mA Output

Get Best Price

86--17719566736

Contact Now

Product Description

Dwyer Series DX Wet / Wet Differential SPDT Pressure Switch (Models DXW-11-153-1 to DXW-11-153-4)

Product Specifications

Attribute	Value
Service	Compatible Gases And Liquids
Wetted Materials	Connection: Brass; Diaphragm: Fluoroelastomer
Temperature Limits	30 To 140°F
Pressure Limits	Maximum Static Pressure: 200 Psig
Enclosure Rating	Weatherproof UL Type 4X (IP65)
Repeatability	±2% Of Full Range

Product Description

The Dwyer Series DX Wet/Wet Differential SPDT Pressure Switch is engineered to deliver reliable contact output based on the pressure difference between two sources. With a NEMA 4X weatherproof enclosure and wetted materials like brass and fluoroelastomer, it suits most gases and water-based solutions.

Ideal for low differential pressure monitoring, the switch offers set points as low as 1 psid (0.07 bar) on decreasing pressure, combined with a high static pressure rating of 200 psig (13.8 bar). Its externally adjustable design and removable terminal block ensure quick installation in dusty, outdoor, or wash-down environments.

Product Features

Precision Differential Sensing

Generates contact output based on pressure difference between two sources, suitable for low differential applications (1 psid minimum on decreasing pressure). Set point ranges: 2.5-75 psid (increasing differential) and 1.0-67 psid (decreasing differential).
Robust Construction & Materials

Wetted components (brass + fluoroelastomer) compatible with most gases and water-based fluids. High static pressure rating: 200 psig (13.8 bar) for durability in high-pressure systems.
Weatherproof & Versatile Enclosure

NEMA 4X (UL type 4X) enclosure protects against dust, water, and outdoor elements, suitable for wash-down environments.
User-Friendly Design

Externally adjustable set points enable on-site calibration without disassembly. Integral mounting flange and removable electrical terminal block reduce installation time.
SPDT Switching Functionality

Single Pole Double Throw (SPDT) configuration allows flexible control for both normally open (NO) and normally closed (NC) applications.
Wide Application Scope

Suited for HVAC, fluid systems, and industrial processes requiring differential pressure monitoring in harsh environments.
