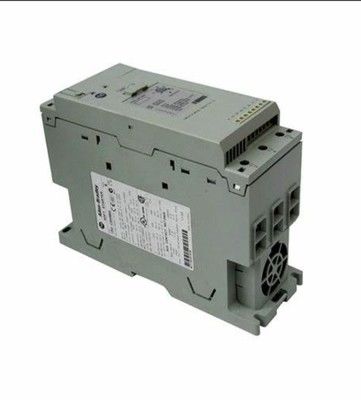

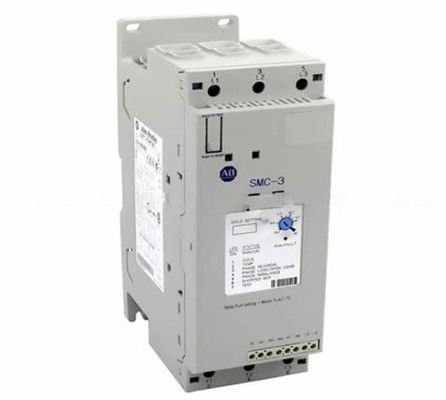

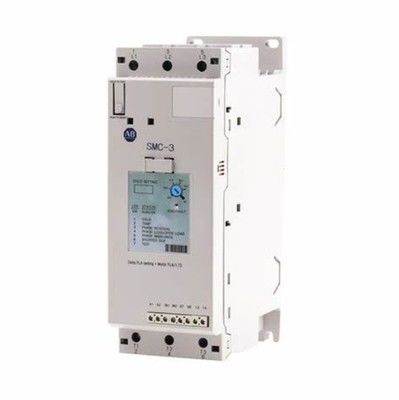

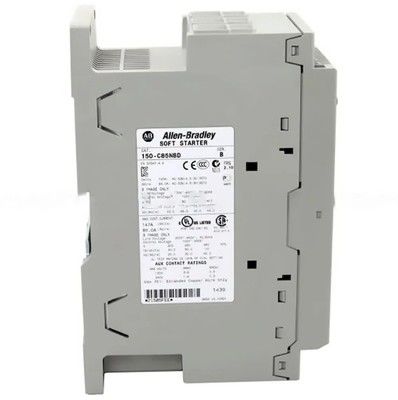

Name: ALLEN-BRADLEY Rockwell Automation 150-C85NBD SMC-3 3-Wire Smart Motor Controller Open Enclosure
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 150-C85NBD
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

ALLEN-BRADLEY Rockwell Automation 150-C85NBD SMC-3 3-Wire Smart Motor Controller Open Enclosure

150-C85NBD Smart Motor Controller

ALLEN-BRADLEY Smart Motor Controller

Brand Name:

ALLEN-BRADLEY

Certification:

Model Number:

150-C85NBD

Request A Quote

Product Details

Enclosure Type:

Open

Frequency Rating:

50/60

Item Status:

Active

Manufacturer:

Rockwell Automation

Product Type:

Simple

Highlight:

Rockwell Automation Smart Motor Controller, ALLEN-BRADLEY Smart Motor Controller, 3-Wire Smart Motor Controller

Highlight:

150-C85NBD Smart Motor Controller

ALLEN-BRADLEY Smart Motor Controller

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Contact Now

Product Description

ALLEN-BRADLEY Rockwell Automation 150-C85NBD SMC-3 3-Wire Smart Motor Controller Open Enclosure

Product Overview

Attribute	Value
Enclosure Type	Open
Frequency Rating	50/60
Item Status	Active
Manufacturer	Rockwell Automation
Product Type	Simple

Key Features: Rockwell Automation Smart Motor Controller, ALLEN-BRADLEY Smart Motor Controller, 3-Wire Smart Motor Controller

Electrical Specifications

With display	No
Voltage type for actuating	AC/DC
Rated operating voltage Ue	200 V
Rated control supply voltage at AC 50 Hz	100 V
Rated control supply voltage at AC 60 Hz	100 V
Overload current	28.3 A
Controller type	SMC-3
DV/DT protection	1000V/µs for power circuit
Repetitive peak voltage	1400V per UL/CSA/NEMA for power circuit
Operating frequency	50/60 Hz per UL/CSA/NEMA for power circuit
Line connected motor power, max	45 kW @ 380/400/415V AC, 50 Hz, 3-phase
Delta connected motor power, max	25...100 Hp @ 460V AC, 60 Hz, 3-phase
Overvoltage category	III per IEC for side mount auxiliary contacts
Rated impulse voltage	6 kV for power circuit
Dielectric withstand	2500V AC per IEC for power circuit
Line connected motor current	28.3...85 A @ 380/400/415/460V AC, 3-phase
Delta connected motor current	50...147 A @ 380/400/415/460V AC, 3-phase
Insulation voltage	Rated 600V AC per UL/CSA/NEMA for power circuit
Rated operational voltage	250V AC/30V DC per UL/CSA/NEMA for Side mount auxiliary contacts
Rated control power during start with fan	200 mA @ 120V AC/100 mA @ 240V AC, 700 mA @ 24V AC/DC

Mechanical Specifications

Degree of protection (IP)	IP2X
Weight	2.25 kg
Shock	Operational: 15 G
Width	72 mm (2.83 inch)
Depth	130 mm (5.12 inch)
Height	206 mm (8.11 inch)
Cable size	2.5...95 mm2 (14...3/0 AWG) for line power terminals
Vibration	Operational: 1.0 G peak, 0.15 mm (0.006 inch) displacement
Internal bypass	Yes
Function	Single direction

Environmental Specifications

Steady state heat dissipation	82 W
Storage and transportation temperature	-25 °C
Rated surrounding temperature range without derating	-5 °C
Humidity	5...95% noncondensing
Operating temperature	Open: -5 to 50 °C (23 to 122 °F)
EMC emission levels	Radiated emission: Class A per IEC
EMC immunity levels	Surge transient: per EN/IEC 60947-4-2 per IEC
Altitude	2000 m
Pollution degree	2

Documentation

Resource	Publication Number
Technical Data	150-TD009
User Manual	150-UM007
