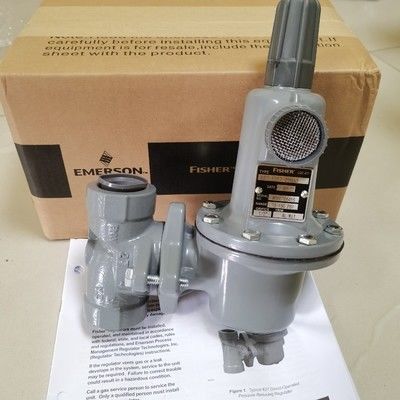

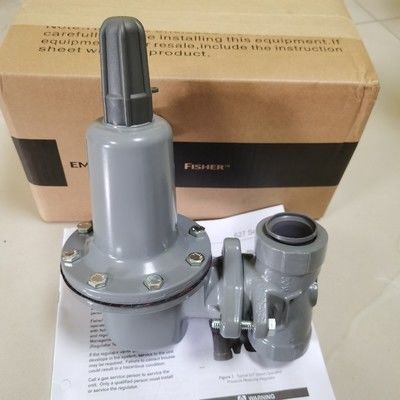

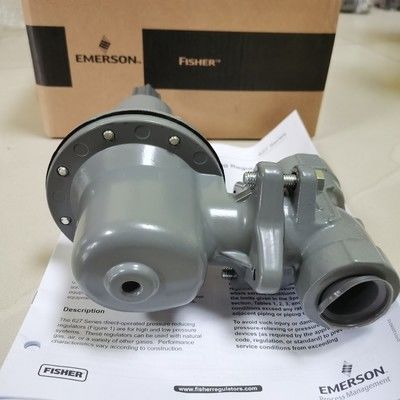

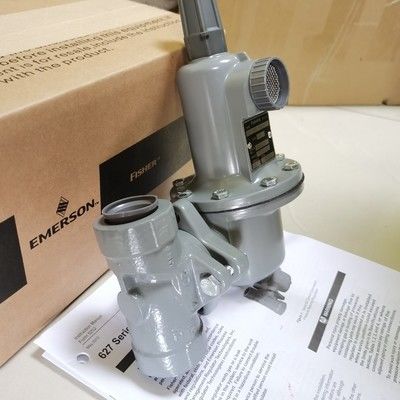

Name: 627 Series Gas Pressure Reducing Regulator with 5 to 500 psig Outlet Pressure Range Internal Relief Valve and Tamper-Resistant Design
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 627-1217-29863
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

627 Series Gas Pressure Reducing Regulator with 5 to 500 psig Outlet Pressure Range Internal Relief Valve and Tamper-Resistant Design

Commercial Pressure Reducing Regulators

627 Series Pressure Reducing Regulators

Industrial Pressure Reducing Regulators

Certification:

Model Number:

627-1217-29863

Request A Quote

627 Series Gas Pressure Reducing Regulator with 5 to 500 psig Outlet Pressure Range Internal Relief Valve and Tamper-Resistant Design

Product Details

Body Sizes And End Connection Styles:

3/4, 1, Or 2: NPT End Connections NPS 1 Or 2 / DN 25 Or 50: CL150 RF, CL300 RF, CL600 RF Flanged End Connections

Maximum Inlet Pressure:

NPT Steel: 2000 Psig / 138 Bar Flanged Steel: 1500 Psig / 103 Bar Ductile Iron: 1000 Psig / 69,0 Bar

Outlet Pressure Range:

5 To 500 Psig / 0,34 To 34,5 Bar In Six Ranges

Pressure Registration:

Type 627, 627H Or 627R: Internal Type 627M, 627HM Or 627MR: External Through 1/4 NPT Internal Control Line Connection In The Diaphragm Case

Temperature Capabilities:

-20° To 180°F / -29° To 82°C

Approximate Weights:

Ductile Iron Or Steel Casings: 10 Pounds / 5 Kg Aluminum Casings: 6.3 Pounds / 3 Kg

Highlight:

Commercial Pressure Reducing Regulators

627 Series Pressure Reducing Regulators

Industrial Pressure Reducing Regulators

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification

Get Best Price

Honeywell Model LC Digital Force Indicator with 50,000 lb Range Stainless Steel Diaphragm and Peak Capture Feature

Get Best Price

Dwyer Series 2000 Industrial Pressure Gauge with ±2% Accuracy, IP67 Enclosure Rating, and 4" Dial Face

Get Best Price

Dwyer AtmosphereGuard RHP Humidity/Temperature Transmitter with Dual-Parameter Sensing, Wide Power Input Range, and User-Friendly LCD Display

Get Best Price

Contact Now

Product Description

627 Series Commercial/Industrial Pressure Reducing Regulators

The 627 Series direct-operated pressure reducing regulators are engineered for reliable pressure control in low and high-pressure systems, suitable for natural gas, air, and various other gases. With an outlet pressure range of 5 to 500 psig (0.34 to 34.5 bar), these regulators combine precision performance with rugged durability. Featuring an internal relief valve, tamper-resistant design, and easy maintenance, they are ideal for commercial and industrial applications requiring consistent pressure regulation across diverse operating conditions.

Product Features

Precision Pressure Control: Direct-operated design for immediate response to pressure fluctuations. Outlet pressure range: 5-500 psig (0.34-34.5 bar) with internal pressure registration.
Integrated Safety Features: Internal relief valve prevents overpressure situations. Relief operation indicator for visual confirmation of safety activation.
Operational Versatility: Suitable for natural gas, air, and other compatible gases. Temperature tolerance: -20°F to 180°F (-29°C to 82°C) for diverse environments.
Easy Maintenance & Installation: Simple design allows the removal of key components without disconnecting pipelines. Installation adaptability for various system configurations.
Flow Capability & Durability: 1/2" orifice for optimal flow capacity in commercial/industrial setups. Tamper-resistant construction ensures consistent performance.
Reliability & Support: 1-year warranty and OEM/ODM customization options. Lightweight design (10 lbs/5 kg) for easy handling and installation.

Technical Specifications

Item	Value
Warranty	1 Year
Customized support	OEM, ODM
Place of Origin	China
Brand Name
Model Number	627-1217-29863
Outlet Pressure Range	5 to 500 psig / 0.34 to 34.5 bar
Pressure Registration	Internal
Temperature Capabilities	-20° to 180°F / -29° to 82°C
Approximate Weights	10 pounds / 5 kg
Orifice	1/2"
Color	Shown
MOQ	1
Packing	One Carton
