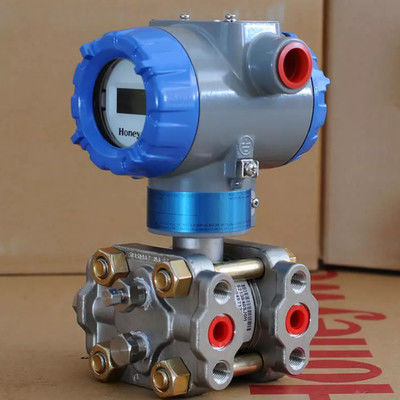

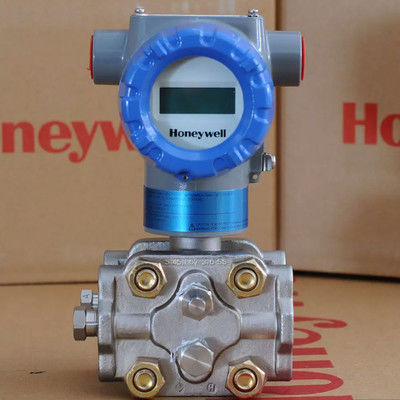

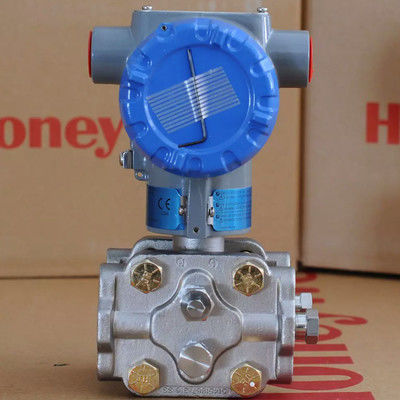

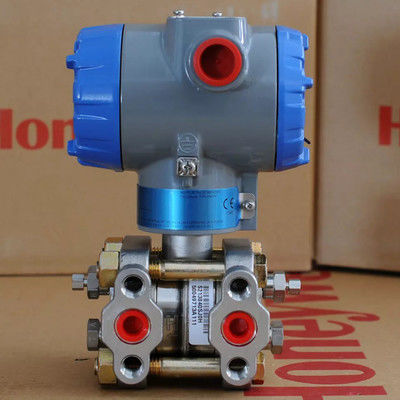

Honeywell SmartLine STD800 Differential Pressure Transmitter (STD820 Model)
Product Introduction
The Honeywell SmartLine STD800 Differential Pressure Transmitter (STD820 model) is a high-performance industrial instrument designed for precise pressure measurement in demanding applications. Leveraging piezoresistive sensor technology with on-chip static pressure and temperature compensation, it delivers exceptional accuracy (up to 0.025% of span) and stability (0.01% of URL per year for 15 years). Part of the SmartLine family, it ensures seamless integration with Experion PKS systems and complies with SIL 2/3 safety standards. The transmitter’s 400:1 rangeability and 90ms response time make it ideal for process control, flow measurement, and liquid level monitoring in oil & gas, chemical, and pharmaceutical industries.
Product Features
Exceptional Accuracy & Stability:
Standard accuracy: 0.035% of span; optional: 0.025% of span for critical applications.
Long-term stability: 0.01% of URL per year over 15 years, reducing calibration needs.
Advanced Sensing Technology:
Piezoresistive sensor with automatic static pressure and temperature compensation.
Rangeability: 400:1, enabling reliable measurement across wide pressure spans (-400 to 400 inH2O).
Rapid Response & Connectivity:
Response time: as fast as 90ms for real-time process control.
Two-wire 4–20 mA output with HART protocol for seamless integration.
Robust Design & Safety:
Integral Dual Seal design compliant with ANSI/NFPA 70-202 and ANSI/ISA 12.27.0.
World-class overpressure protection and SIL 2/3 certification for safety-critical systems.
User-Friendly Operation:
Multiple local display options and external zero/span configuration.
Polarity-insensitive electrical connections and comprehensive on-board diagnostics.
Versatile Configuration:
Plugged Impulse Line Detection and Dual/Triple Calibration options (for HART/Fieldbus).
Process head materials: 316 SS or carbon steel; aluminum housing (8.3 lbs/3.8 kg).
| item |
value |
| Warranty |
1 Year |
| Customized support |
OEM, ODM |
| Place of Origin |
USA |
| Brand Name |
Honeywell |
| Model Number |
STD820 |
| Analog Output |
Two-wire, 4 to 20 mA |
| HART Protocol |
Hart |
| Process Head Material |
316 SS , Carbon Steel |
| Net Weight |
8.3 pounds (3.8 Kg) with Aluminum Housing |
| Power Supply |
10.8 to 42.4Vdc |
| Range |
-400 to 400 inH2O |
| Product Name |
Differential Pressure Transmitter |
| Pressure type |
Differential Presssure (D) |
| Condition |
100% Orinigal |
| Series |
SmartLine STD800 |
