Name: Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch with SPDT Switch Type NEMA 13 Enclosure and Dual-Scale Calibration
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: ADPS-03-2-N
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch with SPDT Switch Type NEMA 13 Enclosure and Dual-Scale Calibration

Adjustable Differential Pressure Switch

ADPS-03-2-N Differential Pressure Switch

Brand Name:

Dwyer

Certification:

Model Number:

ADPS-03-2-N

Request A Quote

Product Details

Max. Working Pressure:

10 KPa

Temperature:

-4 To 185 F (-20 To 85 C)

Switch Type:

Single-pole Double-throw (SPDT)

Electrical Connections:

Push-on Screw Terminals

Process Connections:

7.94 Mm

Enclosure Rating:

NEMA 13, IP54

Highlight:

Adjustable Differential Pressure Switch

ADPS-03-2-N Differential Pressure Switch

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification

Get Best Price

Honeywell Model LC Digital Force Indicator with 50,000 lb Range Stainless Steel Diaphragm and Peak Capture Feature

Get Best Price

Dwyer Series 2000 Industrial Pressure Gauge with ±2% Accuracy, IP67 Enclosure Rating, and 4" Dial Face

Get Best Price

Dwyer AtmosphereGuard RHP Humidity/Temperature Transmitter with Dual-Parameter Sensing, Wide Power Input Range, and User-Friendly LCD Display

Get Best Price

Contact Now

Product Description

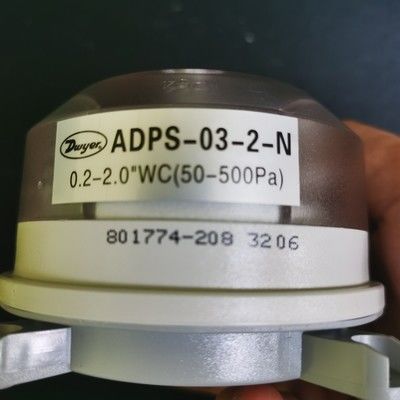

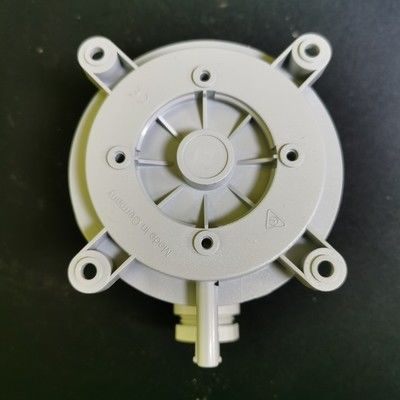

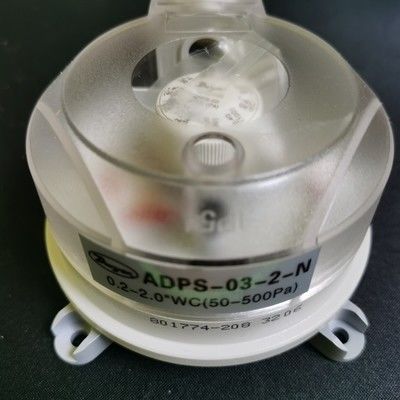

Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch

Product Introduction

The Dwyer ADPS-03-2-N Adjustable Differential Pressure Switch is a versatile solution for precise pressure, vacuum, and differential pressure monitoring in industrial and commercial systems. Engineered with a dual-scaled adjustment knob (inches water column and pascals), this switch enables intuitive pressure setting without a separate gauge, streamlining installation and on-site adjustments.

Product Features

Adjustable Pressure Range: 0.2-2.0 in. WC (50-500 Pa), suitable for low to medium pressure applications

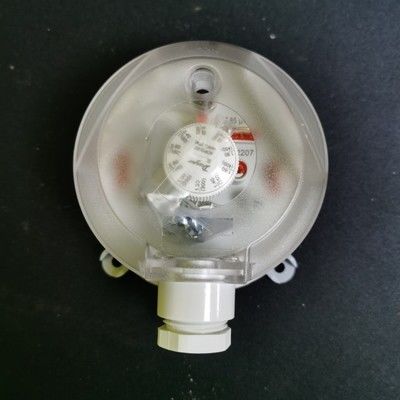

Dual-Scale Calibration: Direct adjustment in both in. WC and Pa for quick, tool-free configuration
Durable Construction: Silicone diaphragm and PA 6.6 body ensure resistance to wear, ideal for air and noncombustible gases
Compact Design: NEMA 13/IP54-rated enclosure (dust-tight and splash-proof) fits tight HVAC spaces
Reliable Switching: SPDT (single-pole double-throw) contact with 250 VAC/1.5A (resistive) rating for industrial compatibility

Technical Specifications

Certification	CE
Place of Origin	EU
Brand Name	Dwyer
Model Number	ADPS-03-2-N
Max. Working Pressure	10 kPa
Temperature	-4 to 185 F (-20 to 85 C)
Switch type	Single-pole double-throw (SPDT)
Electrical Connections	Push-on screw terminals
Process Connections	7.94 mm
Enclosure Rating	NEMA 13, IP54
Weight	5.6 oz (160 g)
Color	White
Contact rating	250VAC/1.5A(0.4A)
Mounting position	Vertical
Condition	100% Original
