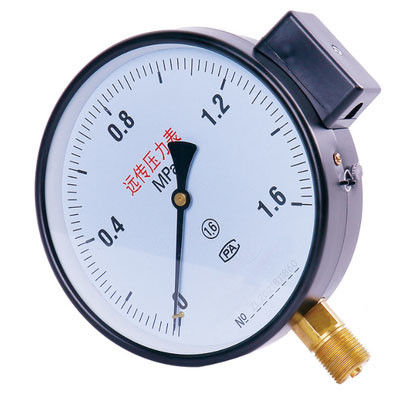

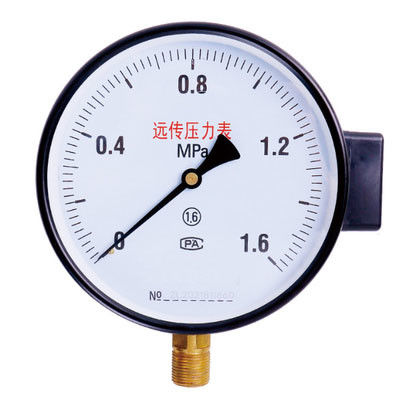

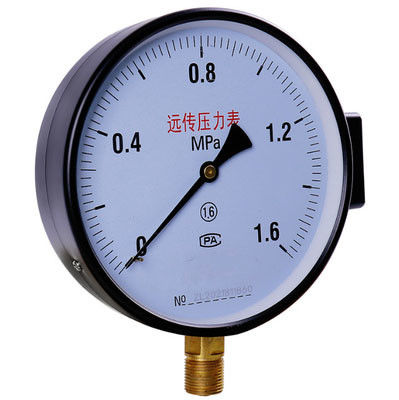

KMC-YTZ150 Resistance Far Transmission Pressure Gauge

KMC-YTZ150 Resistance Far Transmission Pressure Gauge

Product Introduction

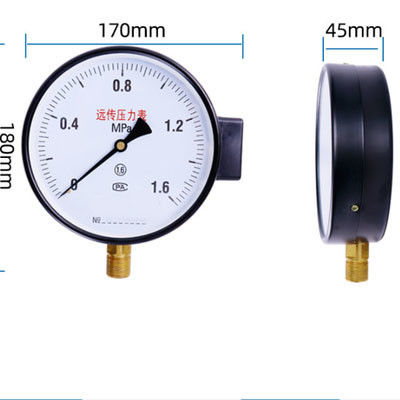

The KACISE KMC-YTZ150 Resistance Far Transmission Pressure Gauge is a high - performance instrument designed for precise pressure measurement and remote monitoring across diverse industrial applications. With a measurement range of 0 - 60MPa and an accuracy class of 1.6, this gauge utilizes elastic components—such as Bourdon tubes—to convert pressure into a readable indication. Its M20×1.5 connection and compact dimensions (170×180×75mm) enable easy integration into heating pipe networks, oil/gas transmission systems, water/gas supply setups, and vehicle maintenance facilities. The gauge’s resistance - based far - transmission feature allows for remote pressure sensing, enhancing operational flexibility and control.

Key Features

• Remote Transmission: Resistance - based design enables real - time pressure monitoring from a distance.
• High Accuracy: 1.6 accuracy class ensures reliable and precise pressure readings.
• Wide Temperature Range: Operates effectively in harsh environments from -40℃ to 60℃.
• Durable Construction: Robust build with safety features like an overflow hole to prevent glass panel damage in case of Bourdon tube failure.
• Customization Options: Supports OEM and ODM services, with customizable pointers, glass panels, and exterior colors.
• Versatile Performance Variants: Available in multiple types, including ordinary, steam - resistant, heat - resistant, and vibration - resistant models.

Technical Specifications
