Name: ADPS Series Adjustable Differential Pressure Switch with Silicone Diaphragm and Dual Scaled Adjustment Knob
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: ADPS-08-2-N
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

ADPS Series Adjustable Differential Pressure Switch with Silicone Diaphragm and Dual Scaled Adjustment Knob

Dwyer ADJUSTABLE DIFFERENTIAL PRESSURE SWITCH

ADPS-08-2-N ADJUSTABLE DIFFERENTIAL PRESSURE SWITCH

Brand Name:

Dwyer

Certification:

Model Number:

ADPS-08-2-N

Request A Quote

ADPS Series Adjustable Differential Pressure Switch with Silicone Diaphragm and Dual Scaled Adjustment Knob

Product Details

Type:

DIFFERENTIAL PRESSURE SWITCH

Service:

Air And Non-combustible, Compatible Gases

Storage:

-40 To 185°F

Process Connections:

5/16" (7.94 Mm) Outside Diameter Tubing, 1/4" (6.0 Mm) Inside Diameter Tubing.

Highlight:

ADPS-06-2-N DIFFERENTIAL PRESSURE SWITCH

Highlight:

Dwyer ADJUSTABLE DIFFERENTIAL PRESSURE SWITCH

ADPS-08-2-N ADJUSTABLE DIFFERENTIAL PRESSURE SWITCH

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification

Get Best Price

Honeywell Model LC Digital Force Indicator with 50,000 lb Range Stainless Steel Diaphragm and Peak Capture Feature

Get Best Price

Dwyer Series 2000 Industrial Pressure Gauge with ±2% Accuracy, IP67 Enclosure Rating, and 4" Dial Face

Get Best Price

Dwyer AtmosphereGuard RHP Humidity/Temperature Transmitter with Dual-Parameter Sensing, Wide Power Input Range, and User-Friendly LCD Display

Get Best Price

Contact Now

Product Description

Dwyer ADJUSTABLE DIFFERENTIAL PRESSURE SWITCH ADPS-06-2-N ADPS-08-2-N

Product Overview

The Series ADPS/EDPS Adjustable Differential Pressure Switch is engineered for precise monitoring of pressure, vacuum, and differential pressure applications. Featuring a dual-scaled adjustment knob calibrated in both inches water column and pascals, this switch enables accurate pressure setting adjustments without requiring additional pressure gauges.

Key Features

Adjustable settings range from 0.08 in w.c. (20 Pa) up to 20 in w.c. (5000 Pa)
Dual-scaled adjustment knob for easy configuration without pressure gauge
Silicone diaphragm and PA 6.6 body construction
Ideal for use with air and other noncombustible gases
Series EDPS models comply with UL508 standards
Constructed with plenum-rated plastics (EDPS models)

Technical Specifications

Pressure Range: 0.08 - 20 in w.c. (20 - 5000 Pa)

Body Material: PA 6.6

Diaphragm Material: Silicone

Compatible Media: Air and noncombustible gases

Certifications: UL508 (EDPS models)

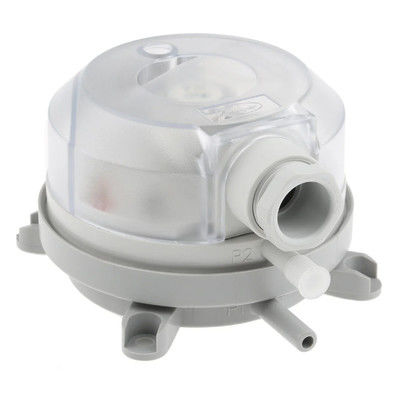

Product Image
