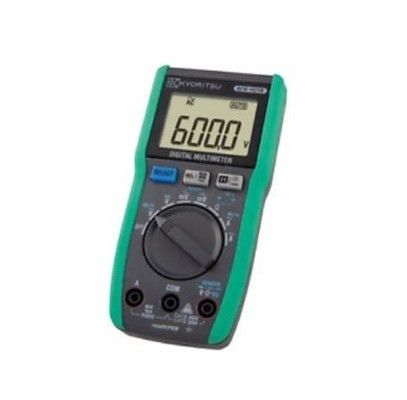

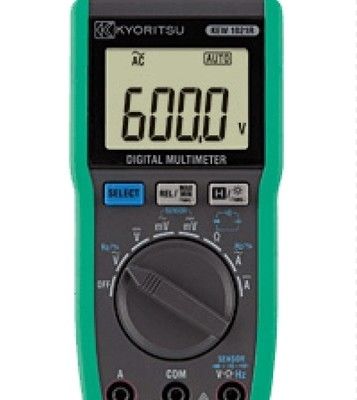

Name: Kyoritsu 1021R Digital Multimeter For Diode Test Open-loop Voltage 3.0V Power Source R03 1.5V × 2
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 1021R
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Kyoritsu 1021R Digital Multimeter For Diode Test Open-loop Voltage 3.0V Power Source R03 1.5V × 2

Diode Test Digital Multimeter

3.0V Digital Multimeter

1021R Digital Multimeter

Brand Name:

Kyoritsu

Certification:

Model Number:

1021R

Request A Quote

Product Details

Diode Test:

Open-loop Voltage: < 3.0V

Power Source:

R03 (1.5V) × 2

Dimensions:

155(L) × 75(W) × 40(D)mm

DC MV:

600.0mV ±1.5%rdg ±3dgt

Highlight:

3.0V Power Source Digital Multimeter, Kyoritsu 1021R Digital Multimeter, Open-loop Voltage Digital Multimeter

Highlight:

Diode Test Digital Multimeter

3.0V Digital Multimeter

1021R Digital Multimeter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Testo 330-2 LL Pro Flue Gas Analysis Kit Colour Graphic Display and 600 G Display Function

Get Best Price

Honeywell BW Solo Lite BWS2-S-Y Sulfur Dioxide (SO₂) Gas Detector

Get Best Price

Fluke 15B+ and 17B+ Digital Multimeters with Test Leads and Accessories

Get Best Price

Keyence AP-31A AP Series 12–24V DC Pressure Sensor / Pressure Switch

Get Best Price

86--17719566736

Contact Now

Product Description

Kyoritsu 1021R Digital Multimeter For Diode Test Open-loop Voltage 3.0V Power Source R03 1.5V × 2

Key Specifications

Attribute	Value
Diode Test	Open-loop Voltage: < 3.0V
Power Source	R03 (1.5V) × 2
Dimensions	155(L) × 75(W) × 40(D)mm
DC MV	600.0mV ±1.5%rdg ±3dgt

Product Highlights

3.0V Power Source Digital Multimeter Kyoritsu 1021R Digital Multimeter Open-loop Voltage Digital Multimeter

Technical Specifications

DC V

6.000/60.00/600.0V (auto range) ±0.5%rdg ±3dgt

DC mV

600.0mV ±1.5%rdg ±3dgt

DC Clamp Sensor

60.00/200.0A (auto range) ±1.5%rdg ±3dgt + Sensor accuracy

AC V

6.000/60.00/600.0V (auto range) ±1.0%rdg ±3dgt [40 - 500Hz]

AC mV

600.0mV ±2.0%rdg ±3dgt [40 - 500Hz]

AC Clamp Sensor

60.00/200.0A (auto range) ±2.0%rdg ±3dgt + Sensor accuracy [40 - 500Hz]

DC A

6.000/10.00A (auto range) ±1.5%rdg ±3dgt

AC A

6.000/10.00A (auto range) ±1.5%rdg ±3dgt[45 - 500Hz]

Resistance

600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (auto range) ±0.5%rdg ±4dgt (600Ω), ±0.5%rdg ±2dgt (6/60/600kΩ/6MΩ), ±1.5%rdg ±3dgt (40MΩ)

Continuity buzzer

600Ω (Buzzer sounds below 90Ω)

Diode test

Open-loop voltage: < 3.0V

Capacitance

60.00/600.0nF/6.000/60.00/600.0/1000μF ±2.0%rdg ±5dgt (60/600nF), ±5.0%rdg ±5dgt (6/60/600/1000μF)

Frequency

ACV 99.99/999.9Hz/9.999/99.99kHz ±0.1%rdg ±3dgt, ACA 99.99/999.9Hz/9.999kHz ±0.1%rdg ±3dgt

DUTY

10.0 - 90.0% ±1.0%rdg ±3dgt [50/60Hz]

Compliance & Dimensions

Applicable standards

IEC 61010-1 CAT IV 300V / CAT III 600V / CAT II 1000V, IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC), EN 50581 (RoHS)

Power source

R03 (1.5V) X 2

Dimensions

155(L) X 75(W) X 40(D)mm

Weight

250g Approx. (including batteries)

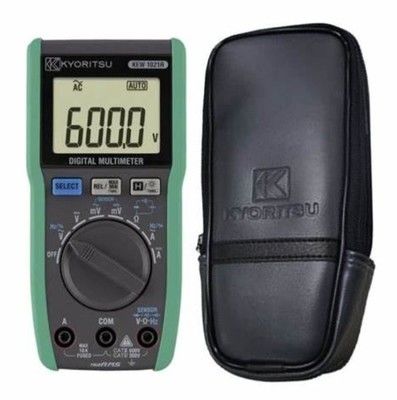

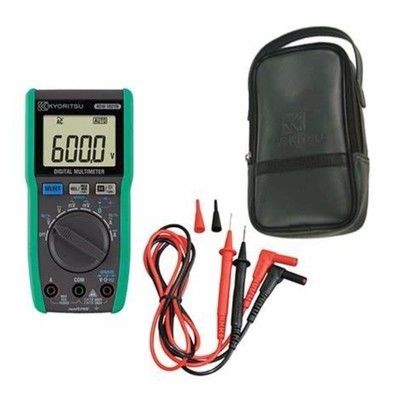

Included Accessories

Standard

Wing-type holder, Flat-type holder, 7066A (Test leads), 8919 (Ceramic fuse [10A/600V]) X 1, 9097 (Carrying case), R03 X 2, Instruction manual

Optional

7234 (Alligator clip), 8161 (AC clamp adaptor), 8115 (AC/DC clamp sensor), 9189 (Magnet hanger strap)
