Name: Kyoritsu 1021R Digital Multimeter with Open-loop Voltage < 3.0V and R03 (1.5V) × 2 Power Source for Auto Range Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 1021R
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Kyoritsu 1021R Digital Multimeter with Open-loop Voltage < 3.0V and R03 (1.5V) × 2 Power Source for Auto Range Measurement

Diode Test Digital Multimeter

3.0V Digital Multimeter

1021R Digital Multimeter

Brand Name:

Kyoritsu

Certification:

Model Number:

1021R

Request A Quote

Product Details

Diode Test:

Open-loop Voltage: < 3.0V

Power Source:

R03 (1.5V) × 2

Dimensions:

155(L) × 75(W) × 40(D)mm

DC MV:

600.0mV ±1.5%rdg ±3dgt

Highlight:

3.0V Power Source Digital Multimeter, Kyoritsu 1021R Digital Multimeter, Open-loop Voltage Digital Multimeter

Highlight:

Diode Test Digital Multimeter

3.0V Digital Multimeter

1021R Digital Multimeter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification

Get Best Price

Honeywell Model LC Digital Force Indicator with 50,000 lb Range Stainless Steel Diaphragm and Peak Capture Feature

Get Best Price

Dwyer Series 2000 Industrial Pressure Gauge with ±2% Accuracy, IP67 Enclosure Rating, and 4" Dial Face

Get Best Price

Dwyer AtmosphereGuard RHP Humidity/Temperature Transmitter with Dual-Parameter Sensing, Wide Power Input Range, and User-Friendly LCD Display

Get Best Price

Contact Now

Product Description

Kyoritsu 1021R Digital Multimeter

Professional digital multimeter featuring diode test capability with open-loop voltage of 3.0V. Powered by R03 1.5V × 2 batteries.

Technical Specifications

Function	Range	Accuracy
DC V	6.000/60.00/600.0V (auto range)	±0.5%rdg ±3dgt
DC mV	600.0mV	±1.5%rdg ±3dgt
DC Clamp Sensor	60.00/200.0A (auto range)	±1.5%rdg ±3dgt + Sensor accuracy
AC V	6.000/60.00/600.0V (auto range)	±1.0%rdg ±3dgt [40 - 500Hz]
AC mV	600.0mV	±2.0%rdg ±3dgt [40 - 500Hz]
AC Clamp Sensor	60.00/200.0A (auto range)	±2.0%rdg ±3dgt + Sensor accuracy [40 - 500Hz]
DC A	6.000/10.00A (auto range)	±1.5%rdg ±3dgt
AC A	6.000/10.00A (auto range)	±1.5%rdg ±3dgt[45 - 500Hz]
Resistance	600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (auto range)	±0.5%rdg ±4dgt (600Ω), ±0.5%rdg ±2dgt (6/60/600kΩ/6MΩ), ±1.5%rdg ±3dgt (40MΩ)
Continuity Buzzer	600Ω	Buzzer sounds below 90Ω
Diode Test	Open-loop voltage: < 3.0V	-
Capacitance	60.00/600.0nF/6.000/60.00/600.0/1000μF	±2.0%rdg ±5dgt (60/600nF), ±5.0%rdg ±5dgt (6/60/600/1000μF)
Frequency	ACV 99.99/999.9Hz/9.999/99.99kHz, ACA 99.99/999.9Hz/9.999kHz	±0.1%rdg ±3dgt
DUTY	10.0 - 90.0%	±1.0%rdg ±3dgt [50/60Hz]

General Specifications

Applicable Standards: IEC 61010-1 CAT IV 300V / CAT III 600V / CAT II 1000V, IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC), EN 50581 (RoHS)
Power Source: R03 (1.5V) × 2
Dimensions: 155(L) × 75(W) × 40(D)mm
Weight: 250g Approx. (including batteries)

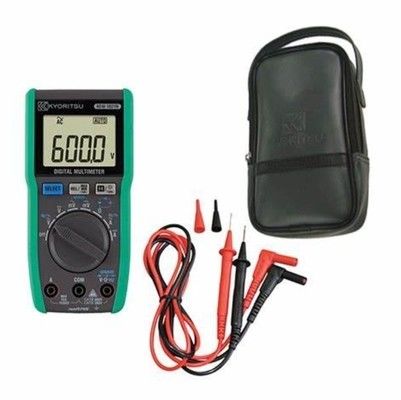

Included Accessories

Wing-type holder
Flat-type holder
7066A (Test leads)
8919 (Ceramic fuse [10A/600V]) × 1
9097 (Carrying case)
R03 × 2
Instruction manual

Optional Accessories

7234 (Alligator clip)
8161 (AC clamp adaptor)
8115 (AC/DC clamp sensor)
9189 (Magnet hanger strap)
