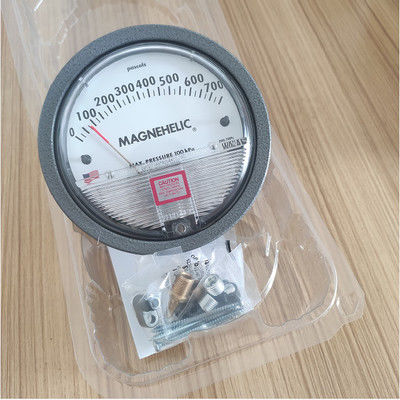

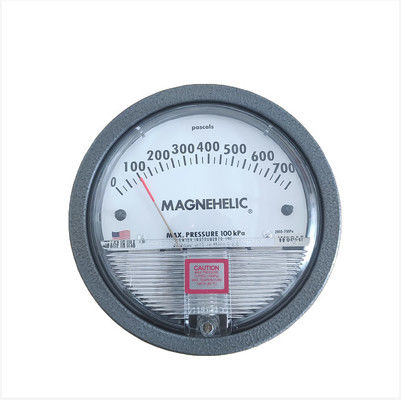

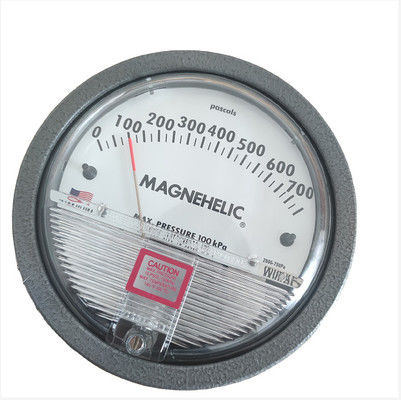

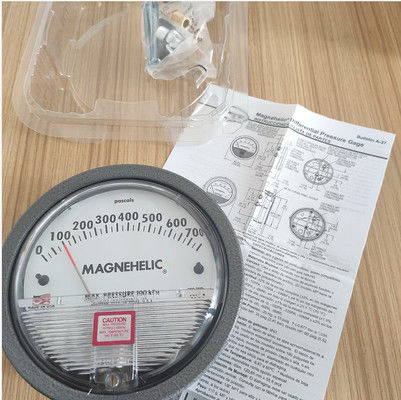

Dwyer Series 2000 Magnehelic 2000-750PA Differential Pressure Gauge

Dwyer Series 2000 Magnehelic 2000-750PA Differential Pressure Gauge

The Dwyer Series 2000 Magnehelic 2000-750PA Differential Pressure Gauge is a precision instrument designed for measuring positive, negative, or differential pressures in air and non-corrosive gas systems. With a 0-750 Pa range and ±2% full-scale accuracy, this gauge delivers reliable readings in critical applications without requiring external power--ideal for isolation rooms, hospitals, and temporary setups.

• High Accuracy: ±2% of full scale (FS) at 70°F (21.1°C) for precise pressure monitoring.
• Power-Free Operation: Mechanical design eliminates reliance on electricity, suitable for low-maintenance environments.
• Rugged Construction: Die-cast aluminum case with gray corrosion-resistant coating (168-hour salt spray tested).
• Dual Pressure Ports: 1/8" female NPT taps on side and back for flexible tubing configurations.
• Wide Pressure Range: -20 in Hg to 15 psig (-0.677 to 1.034 bar) with optional upgrades to 35 psig (2.41 bar) or 80 psig (5.52 bar).
