Name: KMC 770 Digital Auto Car Paint Thickness Meter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KMC-770
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

KMC 770 Digital Auto Car Paint Thickness Meter

Auto Car Paint Thickness Meter

KMC 770 Thickness Meter

Digital Auto Car Paint Thickness Meter

Brand Name:

KACISE

Certification:

Model Number:

KMC-770

Request A Quote

Product Details

Brand Name:

KACISE

Model:

KMC-770

Measuring Range:

0~2000μm

Product Name:

Coating Thickness Gauge

Probe Triggering Force:

0.3~0.8N

Operating Temperature:

-10~50℃

Highlight:

Auto Car Paint Thickness Meter

KMC 770 Thickness Meter

Digital Auto Car Paint Thickness Meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KMC2000MICRO DIFFERENTIAL PRESSURE GAUGE

Get Best Price

Dwyer Magnesense MS-111 Micro Differential Pressure Transmitter

Get Best Price

KMC-Y250BF Pressure Gauge 0-60mpa for Gas Water Oil Liquid Medium

Get Best Price

3000MR 3000MRS Combination Pressure Gauge With Low High Set Points

Get Best Price

86--17719566736

Contact Now

Product Description

KMC 770 Digital Auto Car Paint Thickness Meter

Product Introduction

The KMC 770 Digital Paint Thickness Meter is a versatile non-destructive testing tool designed to measure coating thickness on metal surfaces. Ideal for automotive inspection, manufacturing, and quality control, this meter accurately measures non-conductive coatings on ferrous (iron, nickel, cobalt) and non-ferrous (aluminum, copper) metals, such as paint, galvanized layers, and plastic films.

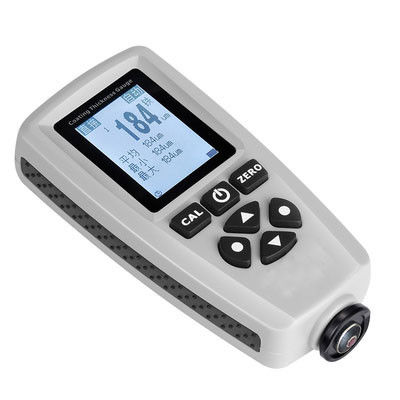

KMC 770 Digital Auto Car Paint Thickness Meter 0

Product Features

Dual-Substrate Detection:

Ruby-tipped probe automatically identifies ferrous (Fe) and non-ferrous (NFe) substrates for seamless switching.

Measurement range: 0–2000μm with ±(2.5% + 1μm) accuracy.

High-Speed Testing:

2 measurements/second for efficient batch testing in production lines or vehicle inspections.

Environmental Adaptability:

Operates in -10–50°C with stable readings, resistant to temperature fluctuations.

User-Friendly Design:

Red-screen warning for out-of-range measurements.

Reversible display for easy reading in any orientation.

Auto-shutoff after inactivity to conserve battery life.

Data Management:

Transfer measurement data to computers for analysis and reporting.

Technical Specifications

Parameter	Detail
Model	MC-770
Measurement Principle	Magnetic induction (Fe) / eddy current (NFe)
Range	0–2000μm
Accuracy	±(2.5% + 1μm)
Probe Force	0.3–0.8N
Minimum Measurement Area	15mm diameter
Dimensions	114×53×25mm
Weight	80g
Operating Temperature	-10–50°C
Battery Life	[Specify if available, e.g., 200 hours on AAA batteries]
