Honeywell Sensepoint XCD Solid Gas Detector

Solid Gas Detector

Honeywell Sensepoint XCD Gas Detector

Brand Name:

Honeywell

Certification:

Model Number:

XCD

Request A Quote

Honeywell Sensepoint XCD Solid Gas Detector

Product Details

Type:

Fixed Gas Detector

Product Model:

XCD

Material:

Aluminum Alloy, 316 Stainless Steel

Output:

4-20ma

Size:

201×164×99(mm)

Weight:

1.4kg

Highlight:

Solid Gas Detector

Honeywell Sensepoint XCD Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Testo 330-2 LL Pro Flue Gas Analysis Kit Colour Graphic Display and 600 G Display Function

Get Best Price

Honeywell BW Solo Lite BWS2-S-Y Sulfur Dioxide (SO₂) Gas Detector

Get Best Price

Fluke 15B+ and 17B+ Digital Multimeters with Test Leads and Accessories

Get Best Price

Keyence AP-31A AP Series 12–24V DC Pressure Sensor / Pressure Switch

Get Best Price

86--17719566736

Contact Now

Product Description

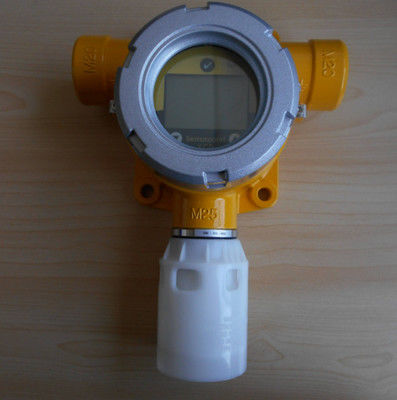

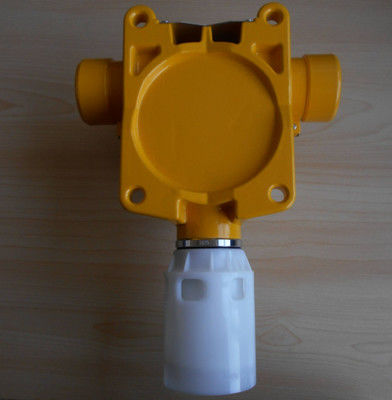

Honeywell Sensepoint XCD Solid Gas Detector

Product Overview

The Honeywell Sensepoint XCD is a rugged, fixed-mounted gas detector designed to monitor combustible, toxic, and oxygen gases in potentially explosive indoor and outdoor environments. Equipped with remote sensor capabilities and a tri-color backlit LCD, it offers flexible installation and intuitive operation for critical hazard detection.

Key Specifications

Attribute	Value
Type	Fixed Gas Detector
Product Model	XCD
Material	Aluminum Alloy, 316 Stainless Steel
Output	4-20ma
Size	201×164×99(mm)
Weight	1.4kg

Advanced Features

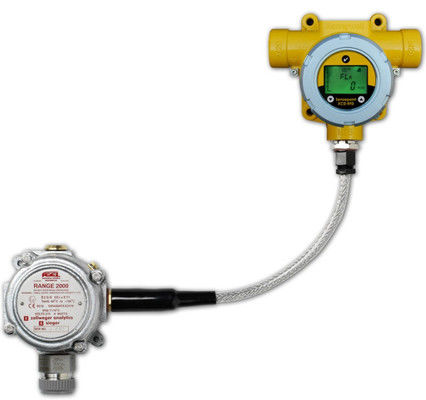

Remote Monitoring Capability: Toxic and oxygen sensors can mount up to 100 ft (30 m) from the transmitter, ideal for hard-to-reach areas (e.g., high ceilings, concealed spaces).
Plug-and-Play Setup: Sensor plugs into the transmitter base, which auto-configures to the sensor type (no manual calibration needed).
Non-Intrusive Operation: Magnet switches and LCD allow configuration without opening the unit, reducing maintenance risks in hazardous areas.

Technical Specifications

Parameter	Detail
Model	Sensepoint XCD
Gas Types	Combustible (catalytic/IR), toxic (electrochemical), oxygen
Measuring Range	20-100% (varies by gas type; e.g., 0-100% LEL for combustibles)
Accuracy	±5% of reading
Power Supply	16-32 VDC (24 VDC nominal)
Housing	Stainless steel/aluminum, explosion-proof, IP66 rated
Dimensions	201×164×99 mm
Weight	1.4 kg
Temperature Range	-40-65°C (-40-149°F)
Communication	RS485, MODBUS RTU
