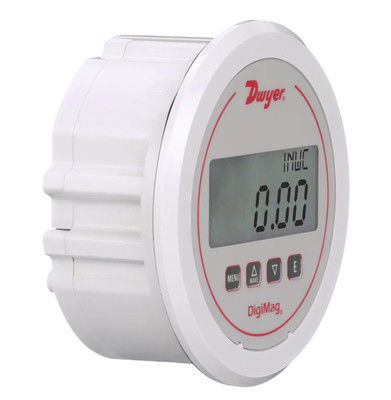

Dwyer DM-1000 DigiMag Digital Differential Pressure Gauge

The Dwyer DM-1000 DigiMag® Digital Differential Pressure Gauge is a versatile, precision instrument designed to monitor pressure for air and compatible gases. Building on the legacy of the renowned Magnehelic® analog gauge, this digital model offers enhanced functionality with factory-calibrated ranges and a 4-digit LCD display that shows readings in both standard and metric units—eliminating the need for manual conversions.

With simplified four-button operation, including digital push-button zero and span, it streamlines setup and calibration. The gauge can be field-programmed to measure pressure, air velocity, or flow (depending on the model), making it ideal for diverse industrial applications. A standout feature for filter systems allows users to set a threshold, triggering a blinking display when a filter needs maintenance, ensuring proactive upkeep.

Product Features

Accuracy & Range

Full-scale accuracy of ±1% for ranges ≥2 in w.c., ±2% for ranges as low as 0.25 in w.c.
Pressure range: 0-0.25" w.c.

Display & Units

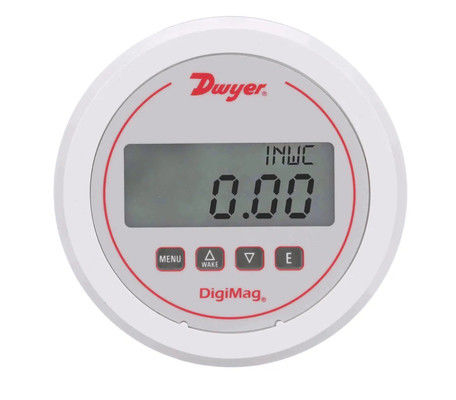

4-digit LCD with 0.60H x 0.33W digits, updating every 1 second to 10 minutes (user-selectable)
Selectable units: in w.c., psi, kPa, Pa, mm w.c., mBar, in Hg, mm Hg, FS (0-100%)

Power & Versatility

Compatible with 9-24 VDC line power or a 9V battery (included, replaceable)
Battery acts as a backup when using line power, ensuring uninterrupted operation

Durability & Construction

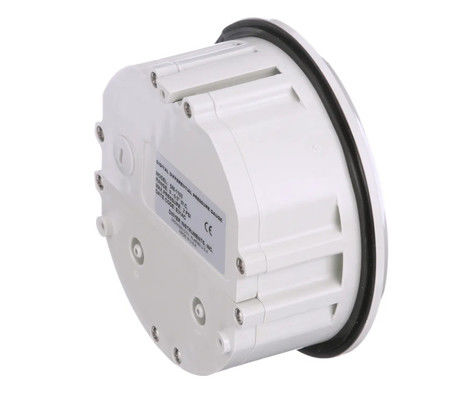

Housing: Glass-filled plastic with NEMA 4X (IP66) rating for dust and water protection
Wetted materials: Consult factory for specifics
Process connections: 1/8" (3 mm) ID tubing

Performance & Stability

Temperature limits: 0-140°F (-18-60°C); compensated from 32-122°F (0-50°C)
Long-term stability: ±1% FS per year; thermal effect: ±0.05% FS/°F (typ.)

Maintenance Alert

Customizable set point for filter applications
Display blinks when a dirty filter requires attention

Weight	1.18 lb (535 g)
Size	5" (127 mm) OD front face
Approvals	CE certified; made in the USA
