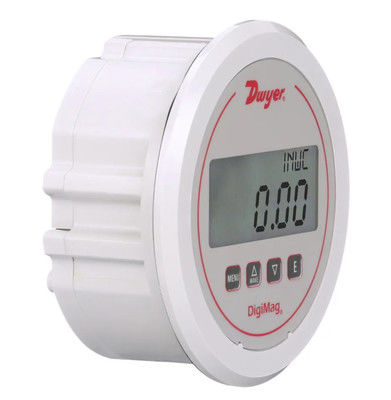

Dwyer DM-1000 DigiMag Digital Differential Pressure Gauge

The Dwyer DM-1000 DigiMag® Digital Differential Pressure Gauge is a versatile, precision instrument designed to monitor pressure for air and compatible gases. Building on the legacy of the renowned Magnehelic® analog gauge, this digital model offers enhanced functionality with factory-calibrated ranges and a 4-digit LCD display that shows readings in both standard and metric units—eliminating the need for manual conversions.

• Accuracy & Range: Full-scale accuracy of ±1% for ranges ≥2 in w.c., ±2% for ranges as low as 0.25 in w.c. Pressure range: 0-0.25'' w.c.

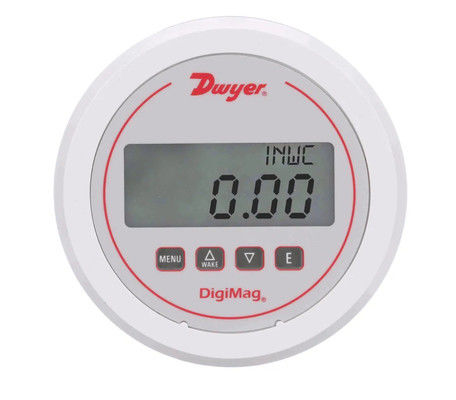

• Display & Units: 4-digit LCD with 0.60H x 0.33W digits, updating every 1 second to 10 minutes (user-selectable). Selectable units: in w.c., psi, kPa, Pa, mm w.c., mBar, in Hg, mm Hg, FS (0-100%).
• Power & Versatility: Compatible with 9-24 VDC line power or a 9V battery (included, replaceable). Battery acts as a backup when using line power, ensuring uninterrupted operation.

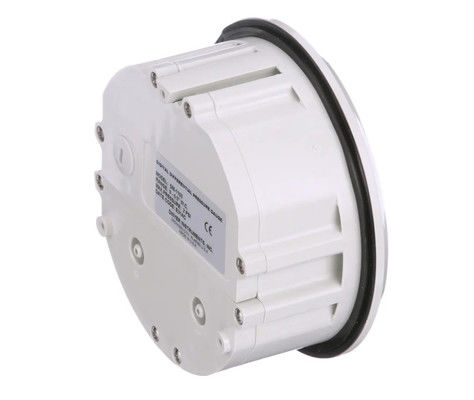

• Durability & Construction: Housing: Glass-filled plastic with NEMA 4X (IP66) rating for dust and water protection. Wetted materials: Consult factory for specifics. Process connections: 1/8'' (3 mm) ID tubing.
• Maintenance Alert: Customizable set point for filter applications; display blinks when a dirty filter requires attention.
