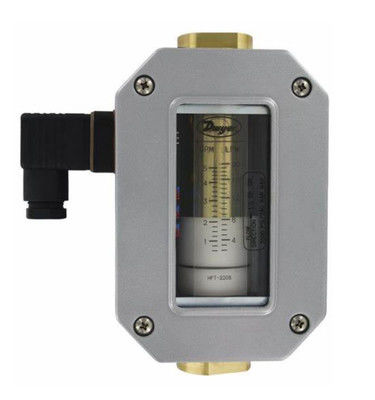

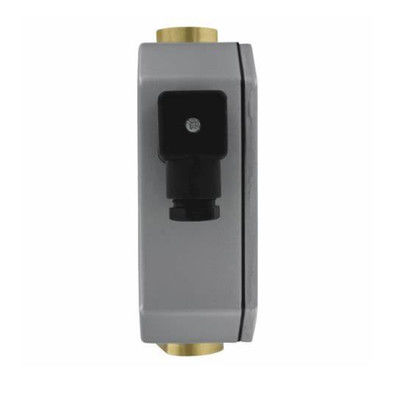

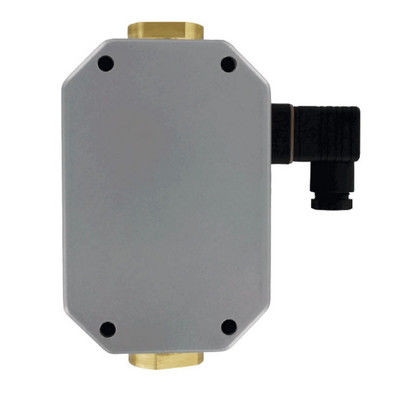

Dwyer HFT-2440 HFT-1112 HFT-1123 Flow Transmitter

Dwyer HFT-2440, HFT-1112, HFT-1123 Flow Transmitter

Product Introduction

The Dwyer Series HFT In-Line Flow Transmitters, including models HFT-2440, HFT-1112, and HFT-1123, are designed for continuous monitoring of flow rate levels. Equipped with a direct-reading in-line flowmeter and integrated electronics, these transmitters offer proportional analog outputs of 4 to 20 mA, 0 to 5 VDC, and 1 to 5 VDC, enabling seamless integration with various industrial control systems. They strike a balance between accuracy and practicality, making them ideal for a wide range of flow measurement applications.

Product Features

• Dual Indication System: Provides both an analog output for remote flow monitoring in applications and an integral direct-reading scale for local indication of the flow rate, ensuring real-time visibility of flow conditions both on-site and through connected systems.
• Flexible Installation: Offers increased application versatility as it has no requirement for inlet or outlet straight plumbing. It can be mounted in horizontal, vertical, or inverted orientations, adapting to different installation spaces and pipeline layouts with ease.
• Rugged Construction for Harsh Environments: Capable of outdoor or harsh environment installations, thanks to its rugged cast aluminum construction and NEMA 4X (IP65) enclosure. This design effectively protects the transmitter from dust, water jets, and other environmental factors, ensuring reliable operation in challenging conditions.
